ADG714 Datasheet

ADG714 Datasheet

CMOS, Low Voltage, SPI/QSPI/Microwire Compatible Interface, Serially Controlled, Octal SPST Switches
Part No.: ADG714
Page: 21 Pages
Size: 325 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 1
Update Time: 2023-12-08 14:45:58
DataSheet: Download

ADG714 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
ADG714BRUZ Tube 62   3 24 -40°C ~ 85°C 24-Lead Thin Shrink Small Outline Package [TSSOP]
ADG714BRUZ-REEL Reel 2500   3 24 -40°C ~ 85°C 24-Lead Thin Shrink Small Outline Package [TSSOP]
ADG714BRUZ-REEL7 Reel 1000   3 24 -40°C ~ 85°C 24-Lead Thin Shrink Small Outline Package [TSSOP]
ADG714BCPZ-REEL7 Reel 1500   3 24 -40°C ~ 85°C 24-Lead Lead Frame Chip Scale Package [LFCSP]
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

ADG714 Datasheet(PDF)

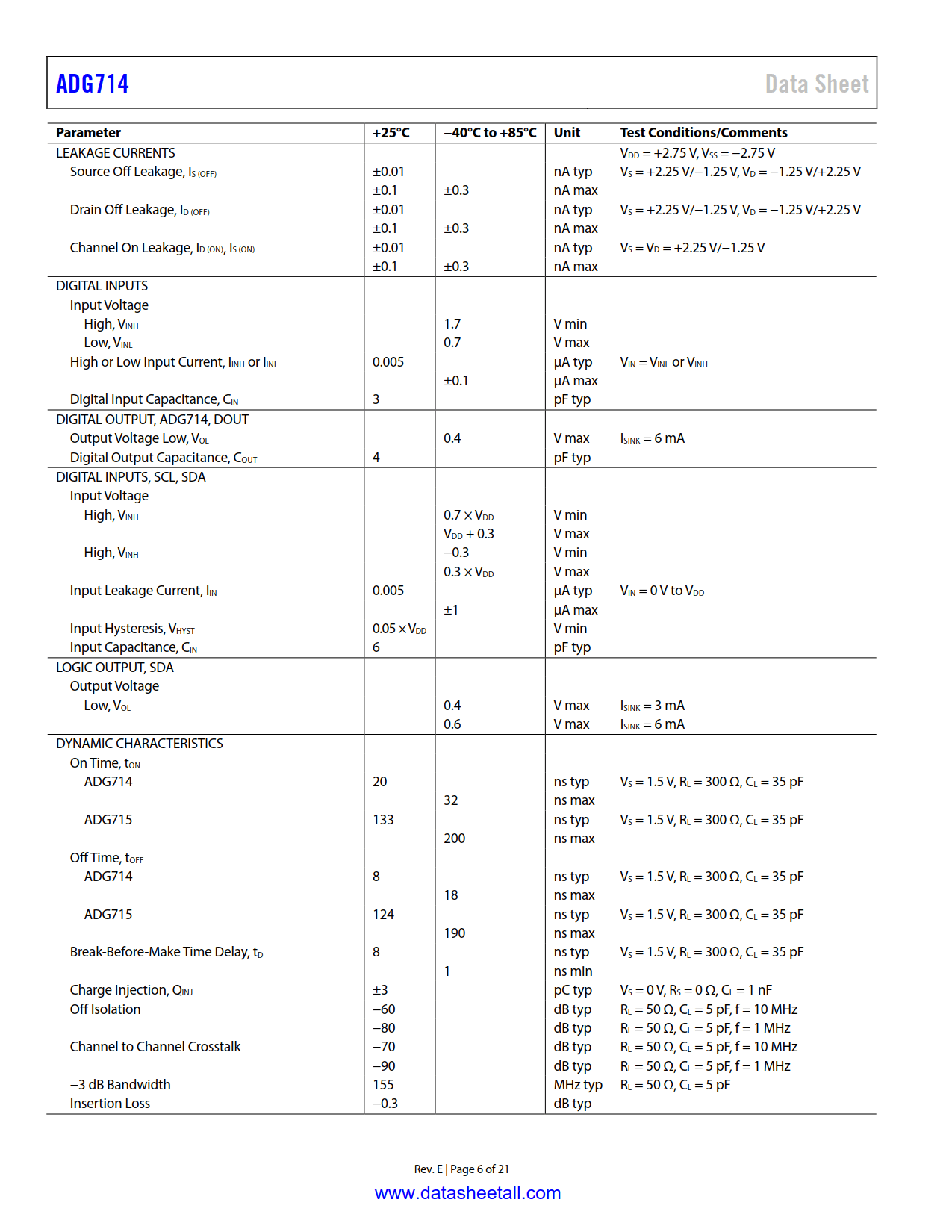

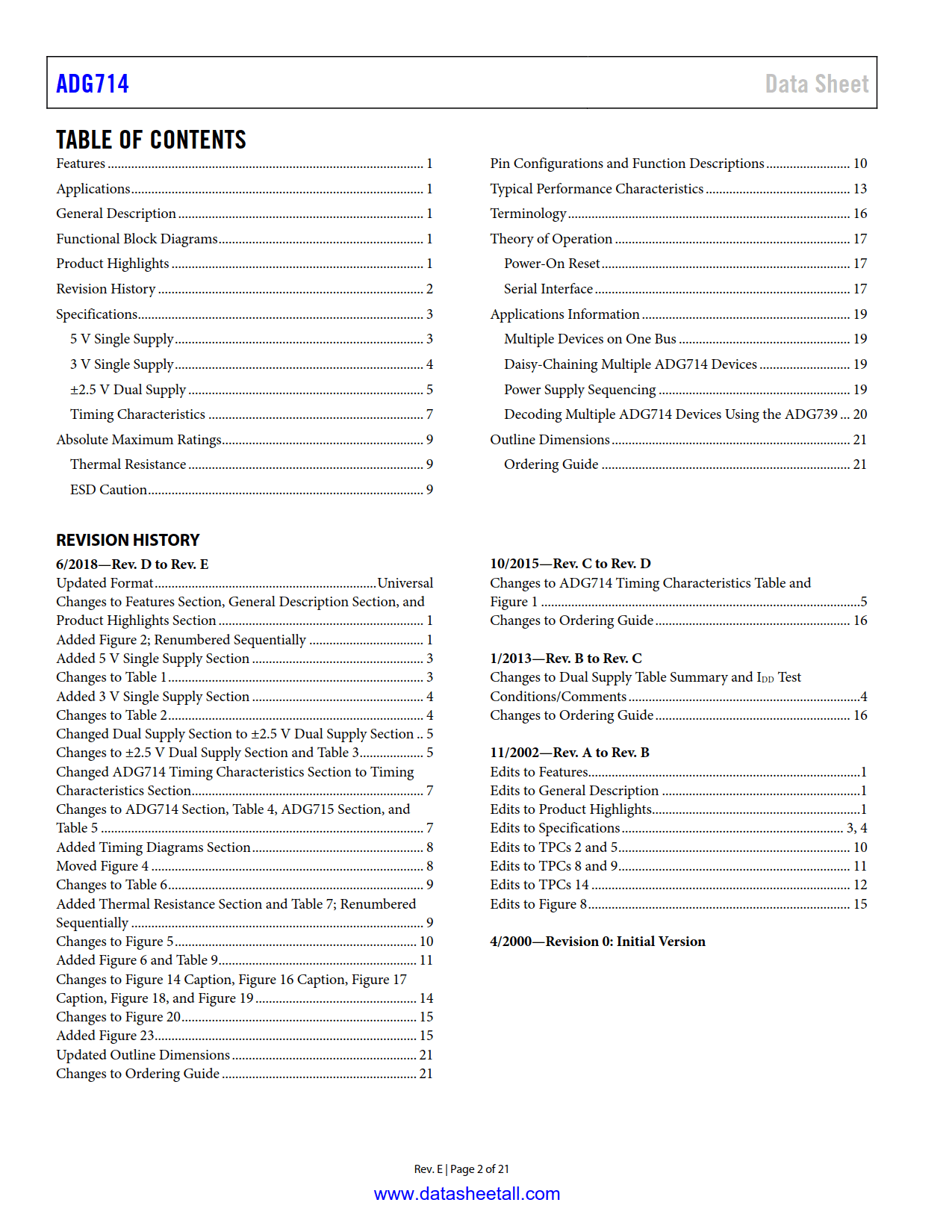

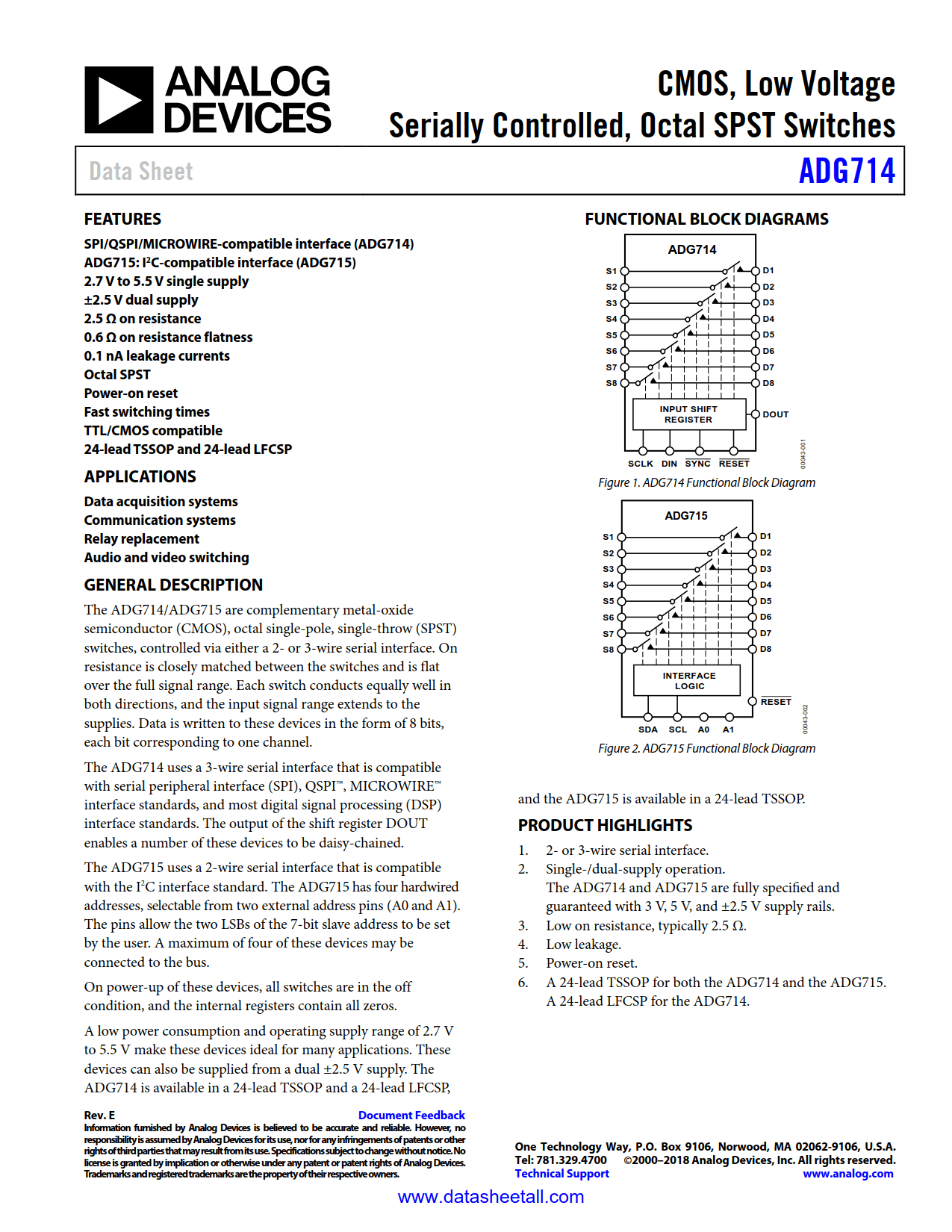

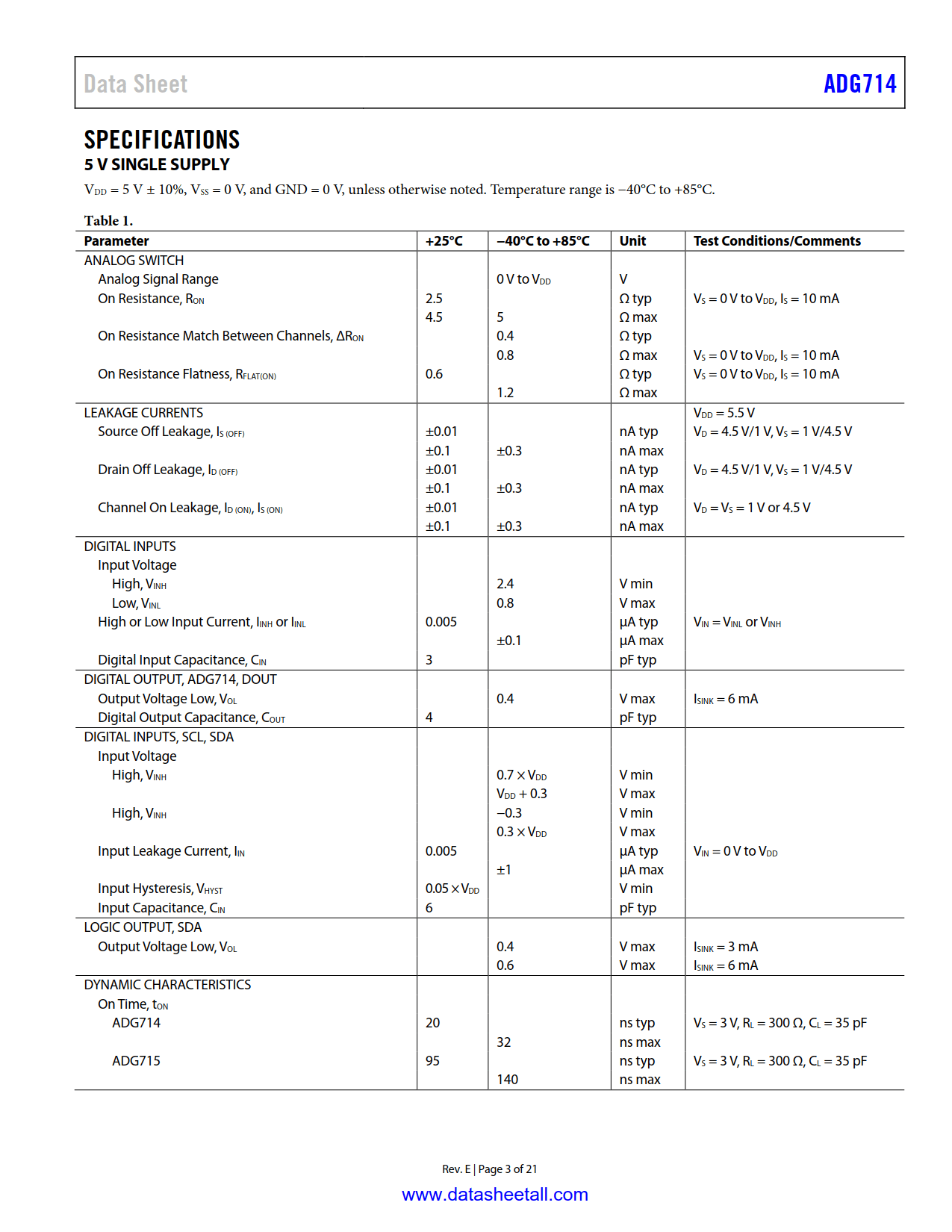

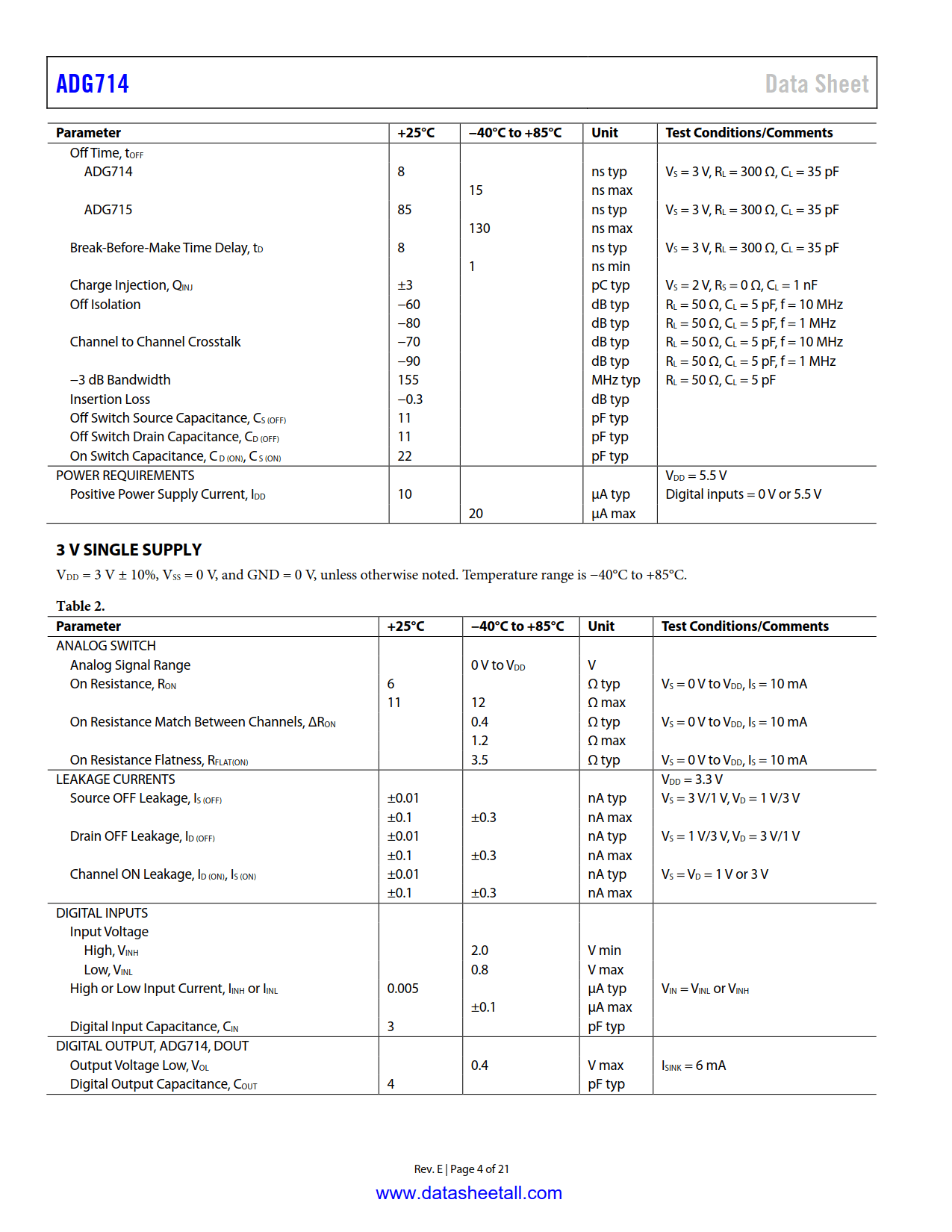

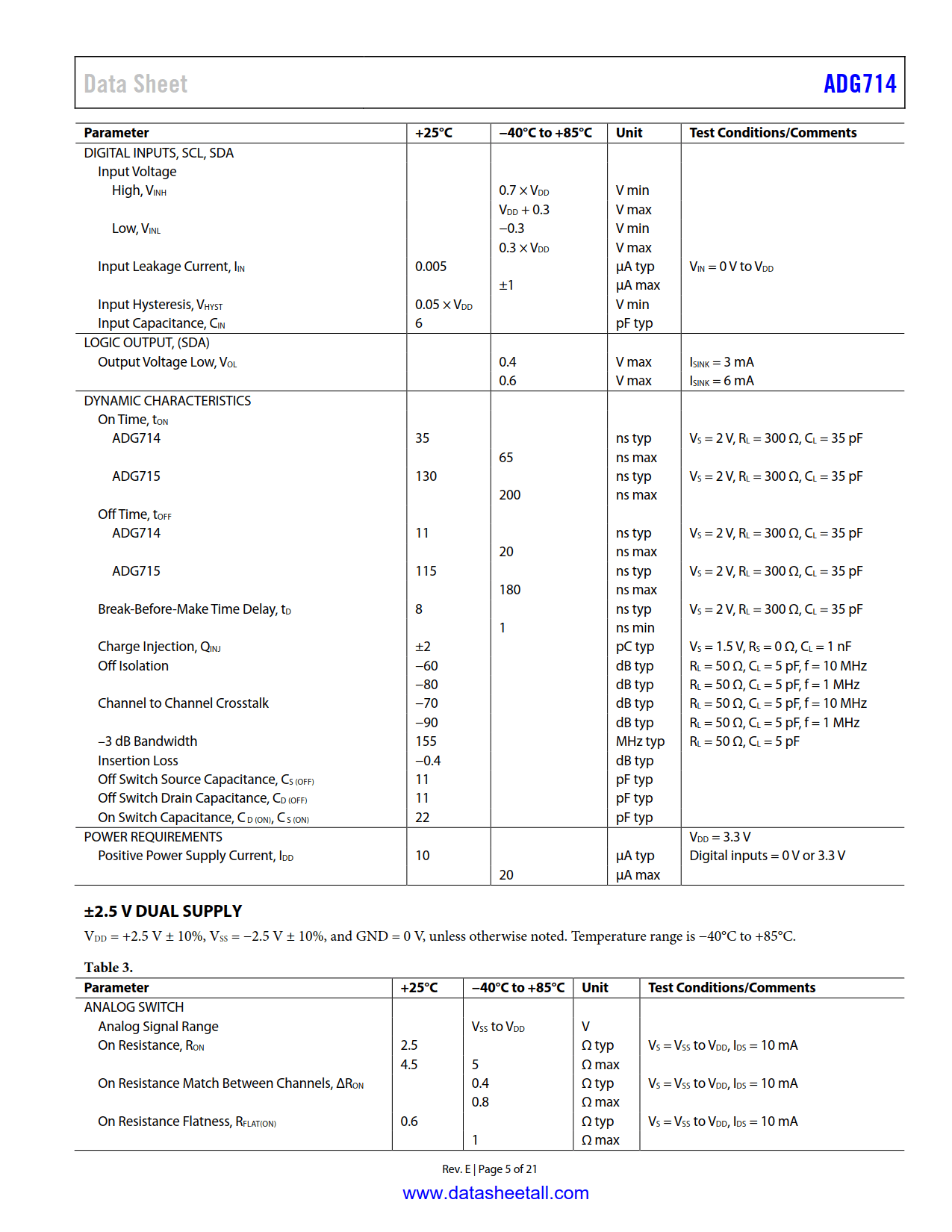

ADG714 Datasheet(Picture)

ADG714 Features

  • SPI/QSPI/MICROWIRE-compatible interface
  • 2.7 V to 5.5 V single supply
  • ±2.5 V dual supply
  • 2.5 Ω on resistance
  • 0.6 Ω on resistance fatness
  • 0.1 nA leakage currents
  • Octal SPST
  • Power-on reset
  • Fast switching times
  • TTL/CMOS compatible
  • 24-lead TSSOP and 24-lead LFCSP

ADG714 Applications

  • Data acquisition systems
  • Communication systems
  • Relay replacement
  • Audio and video switching

ADG714 Description

The ADG714 is a complementary metal-oxide semiconductor (CMOS), octal single-pole, single-throw (SPST) switch controlled via a 3-wire serial interface. On resistance is closely matched between the switches and is flat over the full signal range. Each switch conducts equally well in both directions, and the input signal range extends to the supplies. Data is written to these devices in the form of 8 bits, each bit corresponding to one channel.

The ADG714 uses a 3-wire serial interface that is compatible with serial peripheral interface (SPI), QSPI, MICROWIRE interface standards, and most digital signal processing (DSP) interface standards. The output of the shift register DOUT enables a number of these devices to be daisy-chained.

On power-up, all switches are in the OFF condition, and the internal registers contain all zeros.

A low power consumption and operating supply range of 2.7 V to 5.5 V makes this part ideal for many applications. The ADG714 may also be supplied from a dual ±2.5 V supply. The ADG714 is available in a 24-lead TSSOP and a 24-lead LFCSP.
