| Part No.： | ADF4360-7 |
| Page： | 25 Pages |
| Size： | 413 KB |
| Manufacturer： | Analog Devices, Inc. |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-12-08 14:53:19 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| ADF4360-7BCPZ | Tray | 490 | 3 | 24 | -40°C ~ 85°C | 24-Lead Lead Frame Chip Scale Package [LFCSP] | ||
| ADF4360-7BCPZRL | Reel | 5000 | 3 | 24 | -40°C ~ 85°C | 24-Lead Lead Frame Chip Scale Package [LFCSP] | ||
| ADF4360-7BCPZRL7 | Reel | 1500 | 3 | 24 | -40°C ~ 85°C | 24-Lead Lead Frame Chip Scale Package [LFCSP] |

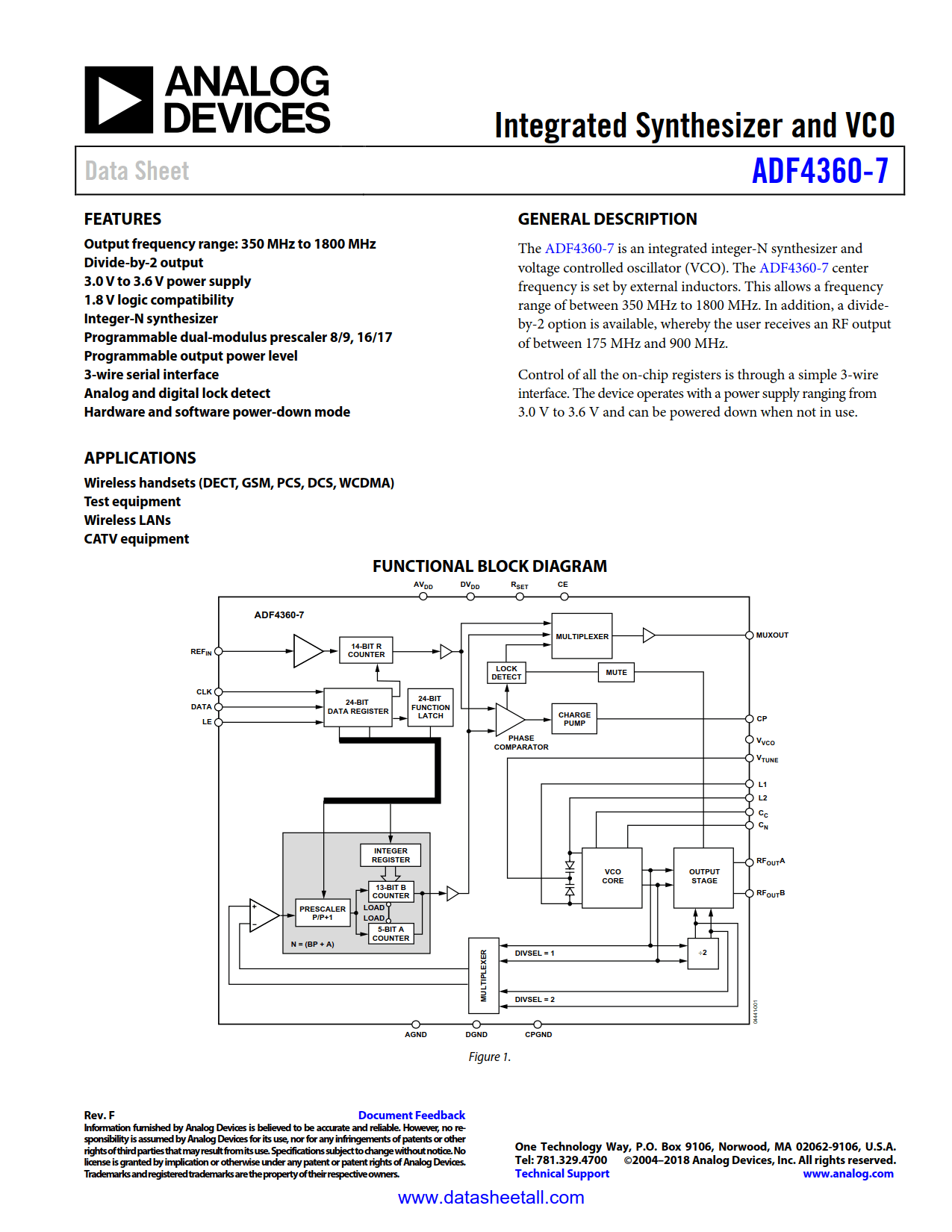

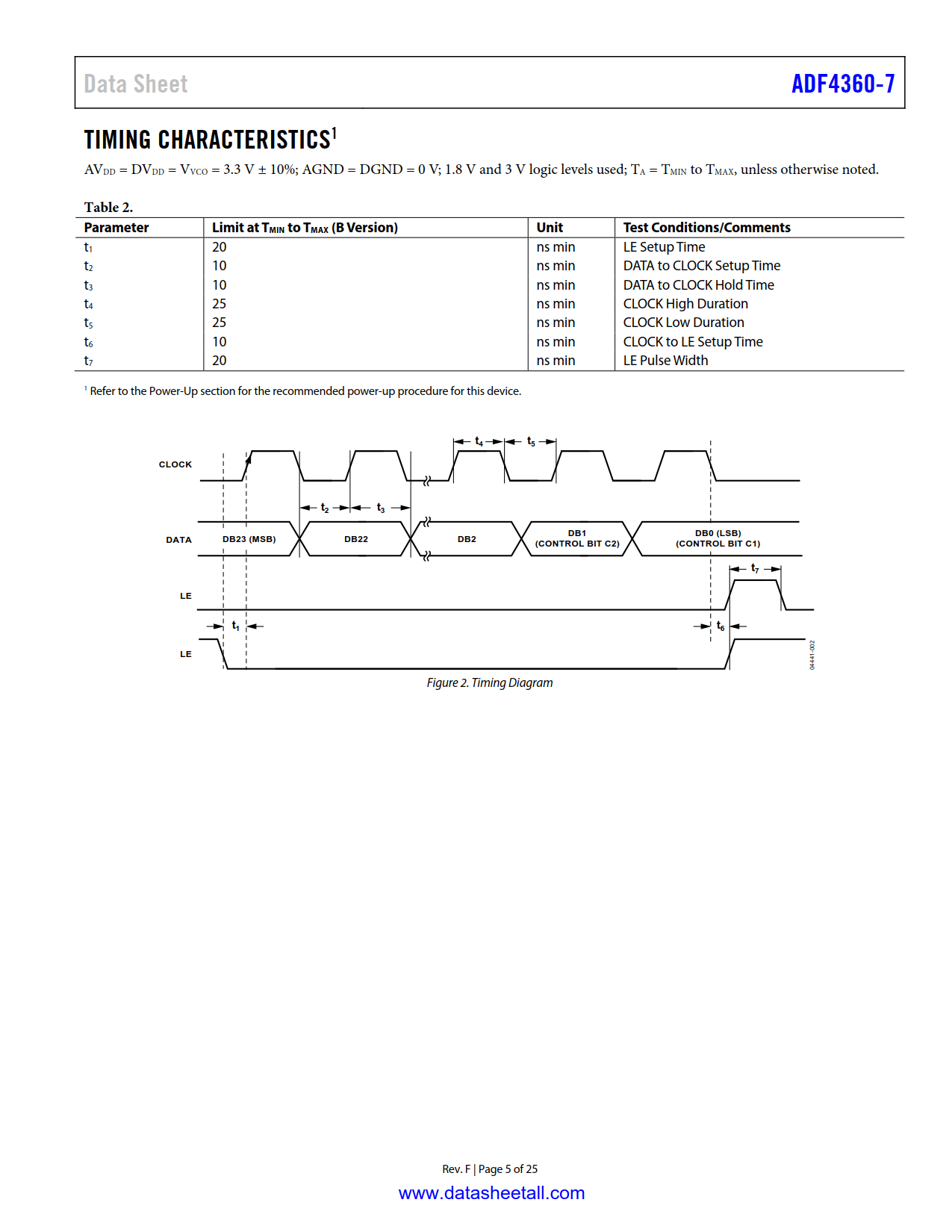

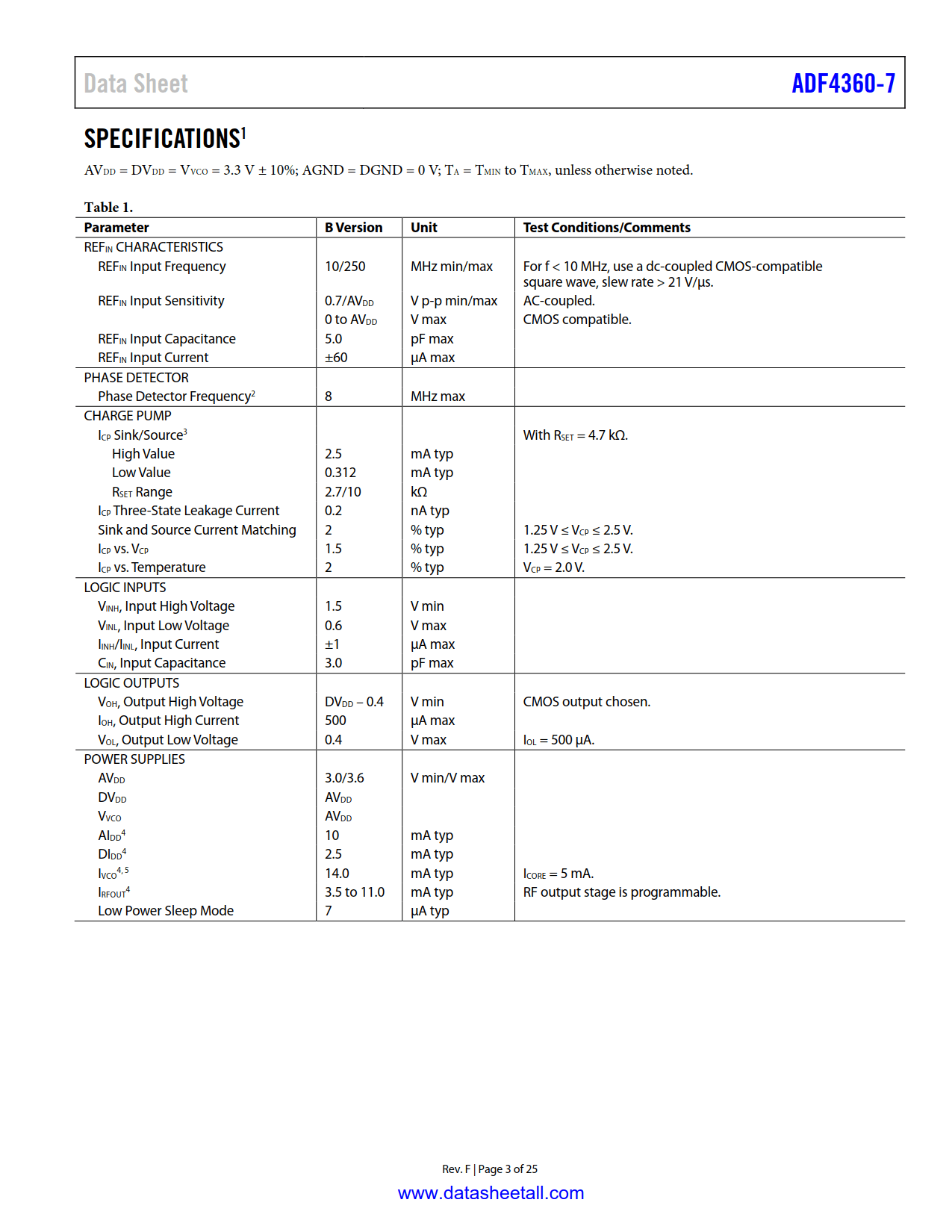

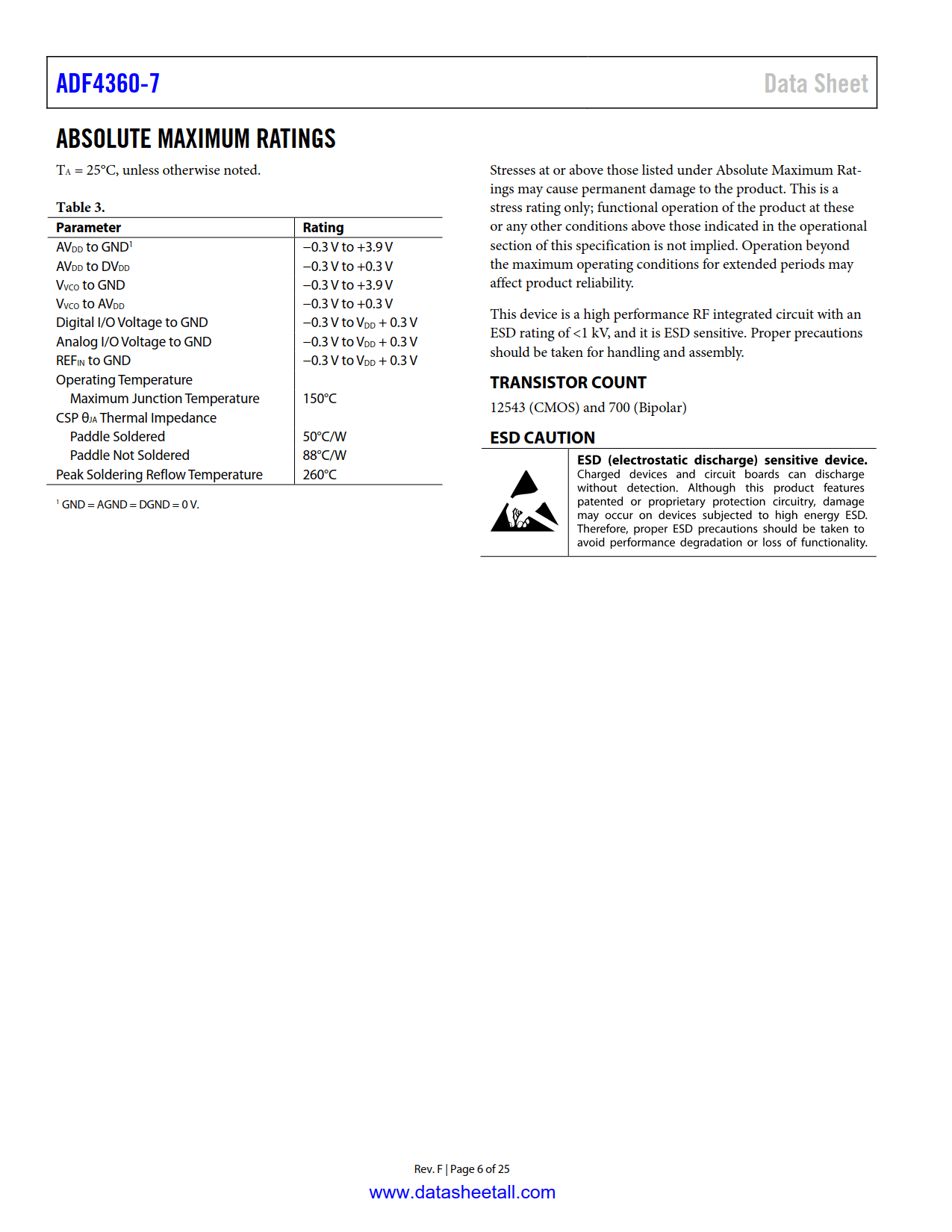

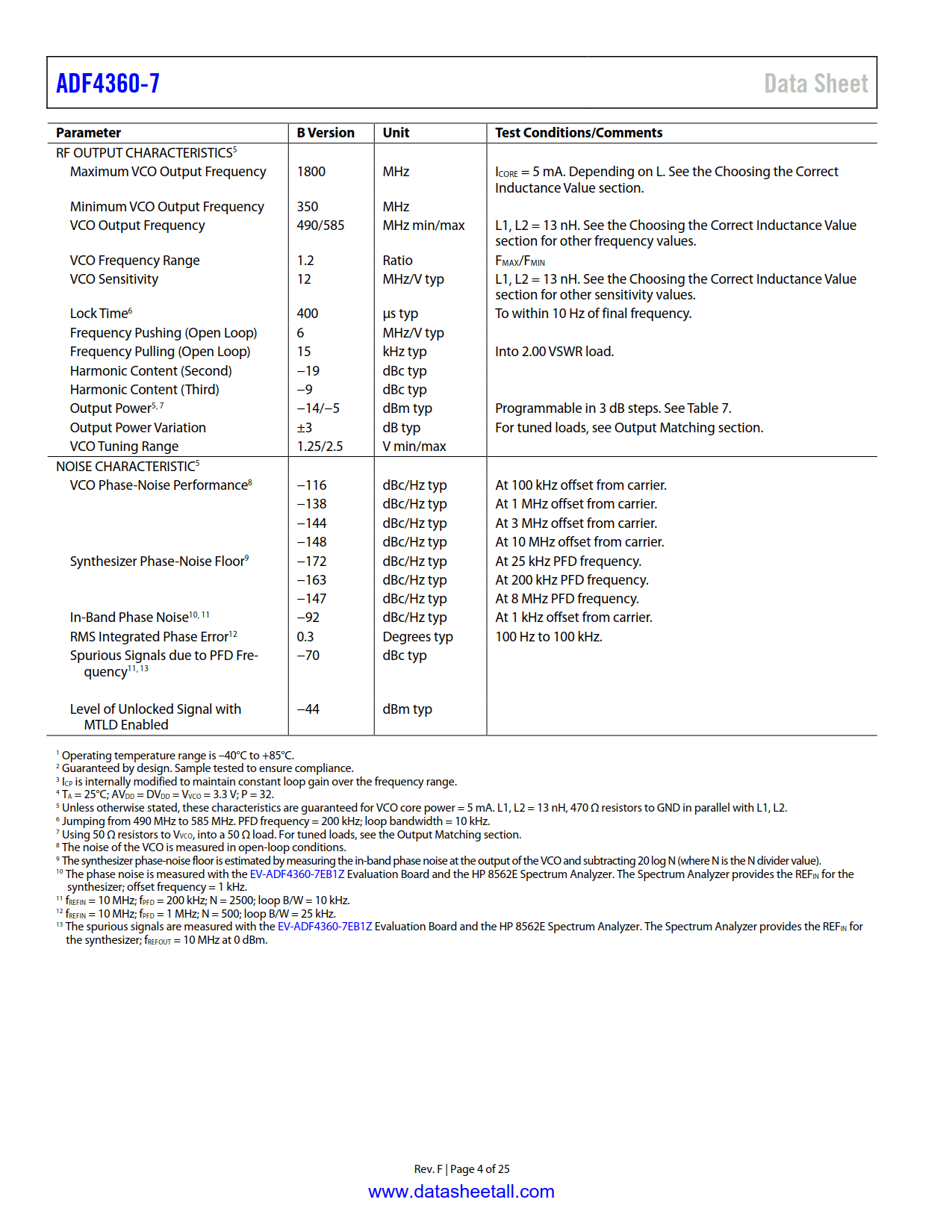

The ADF4360-7 is an integrated integer-N synthesizer and voltage controlled oscillator (VCO). The ADF4360-7 center frequency is set by external inductors. This allows a frequency range of between 350 MHz to 1800 MHz. In addition, a divide-by-2 option is available, whereby the user receives an RF output of between 175 MHz and 900 MHz.
Control of all the on-chip registers is through a simple 3-wire interface. The device operates with a power supply ranging from 3.0 V to 3.6 V and can be powered down when not in use.
