AD9742 Datasheet

AD9742 Datasheet

12-Bit, 210 MSPS TxDAC® D/A Converter
Part No.: AD9742
Page: 32 Pages
Size: 1041 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 2
Update Time: 2024-01-05 11:18:04
DataSheet: Download

AD9742 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
AD9742AR Tube 27   3 28 -40°C ~ 85°C 28-Lead Standard Small Outline Package [SOIC]
AD9742ARZ Tube 27   3 28 -40°C ~ 85°C 28-Lead Standard Small Outline Package [SOIC]
AD9742ARZRL Reel 1000   3 28 -40°C ~ 85°C 28-Lead Standard Small Outline Package [SOIC]
AD9742ARU Tube 50   3 28 -40°C ~ 85°C 28-Lead Thin Shrink Small Outline Package [TSSOP]
AD9742ARURL7 Reel 1000   3 28 -40°C ~ 85°C 28-Lead Thin Shrink Small Outline Package [TSSOP]
AD9742ARUZ Tube 50   3 28 -40°C ~ 85°C 28-Lead Thin Shrink Small Outline Package [TSSOP]
AD9742ARUZRL7 Reel 1000   3 28 -40°C ~ 85°C 28-Lead Thin Shrink Small Outline Package [TSSOP]
AD9742ACPZ Tray 490   3 32 -40°C ~ 85°C 32-Lead Lead Frame Chip Scale Package [LFCSP_WQ]
AD9742ACPZRL7 Reel 1500   3 32 -40°C ~ 85°C 32-Lead Lead Frame Chip Scale Package [LFCSP_WQ]
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

AD9742 Datasheet(PDF)

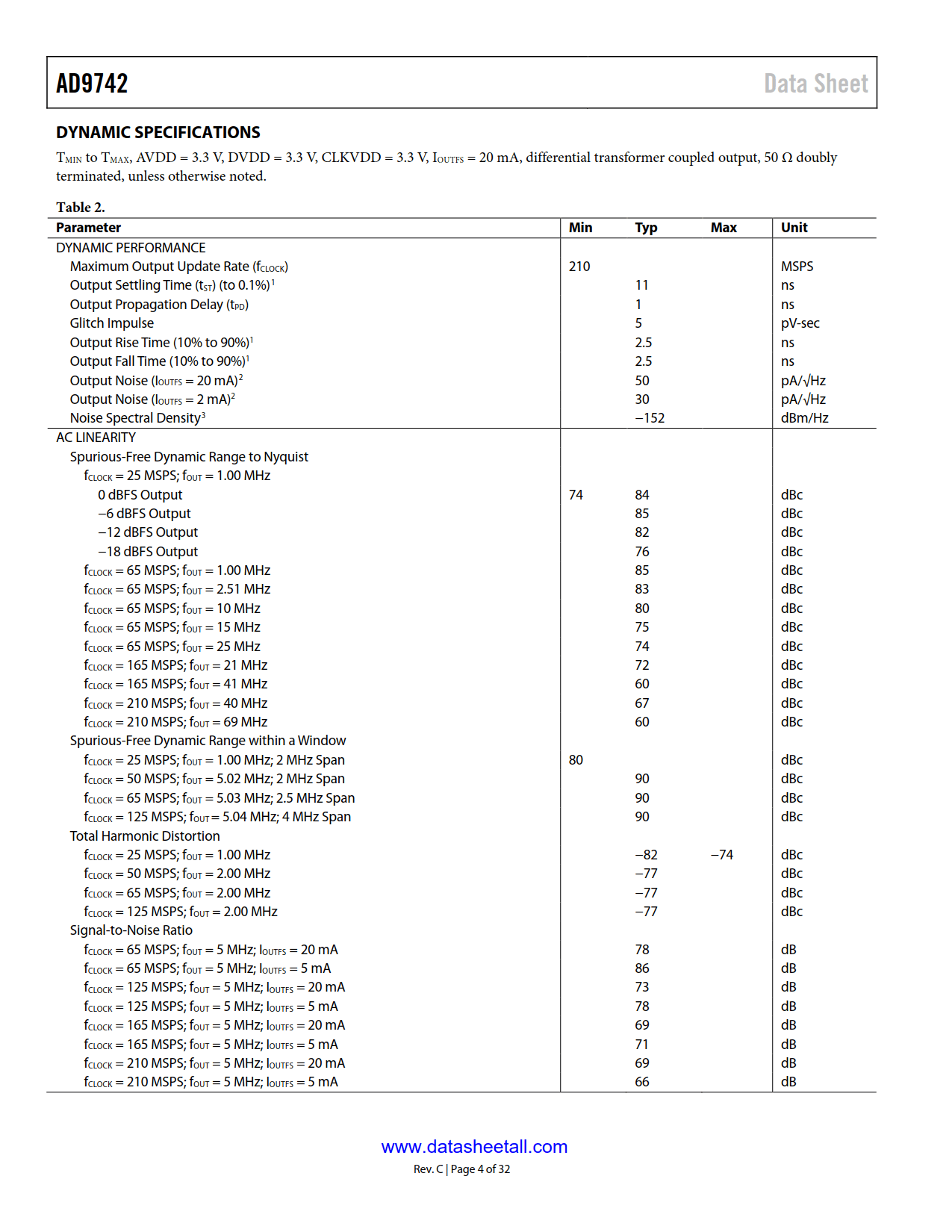

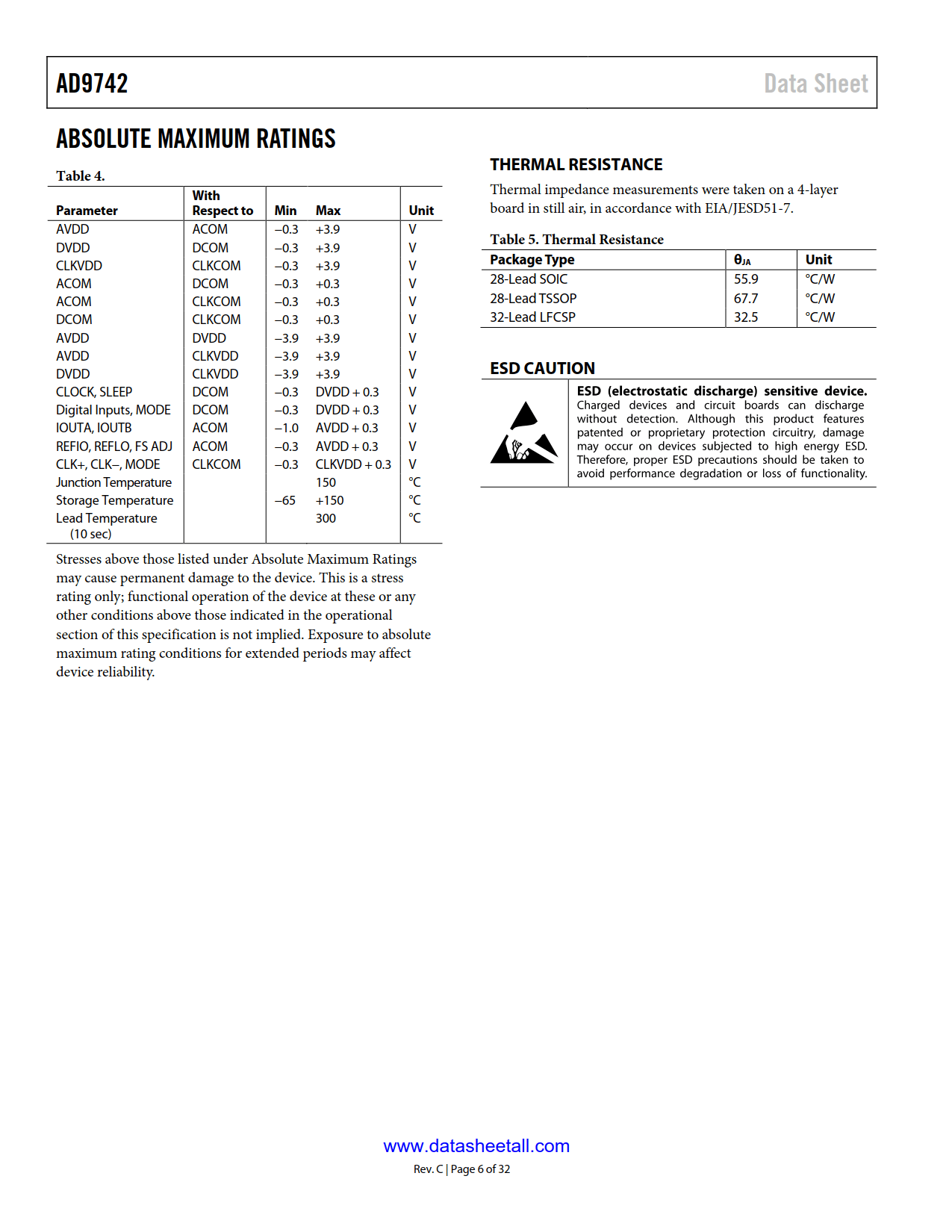

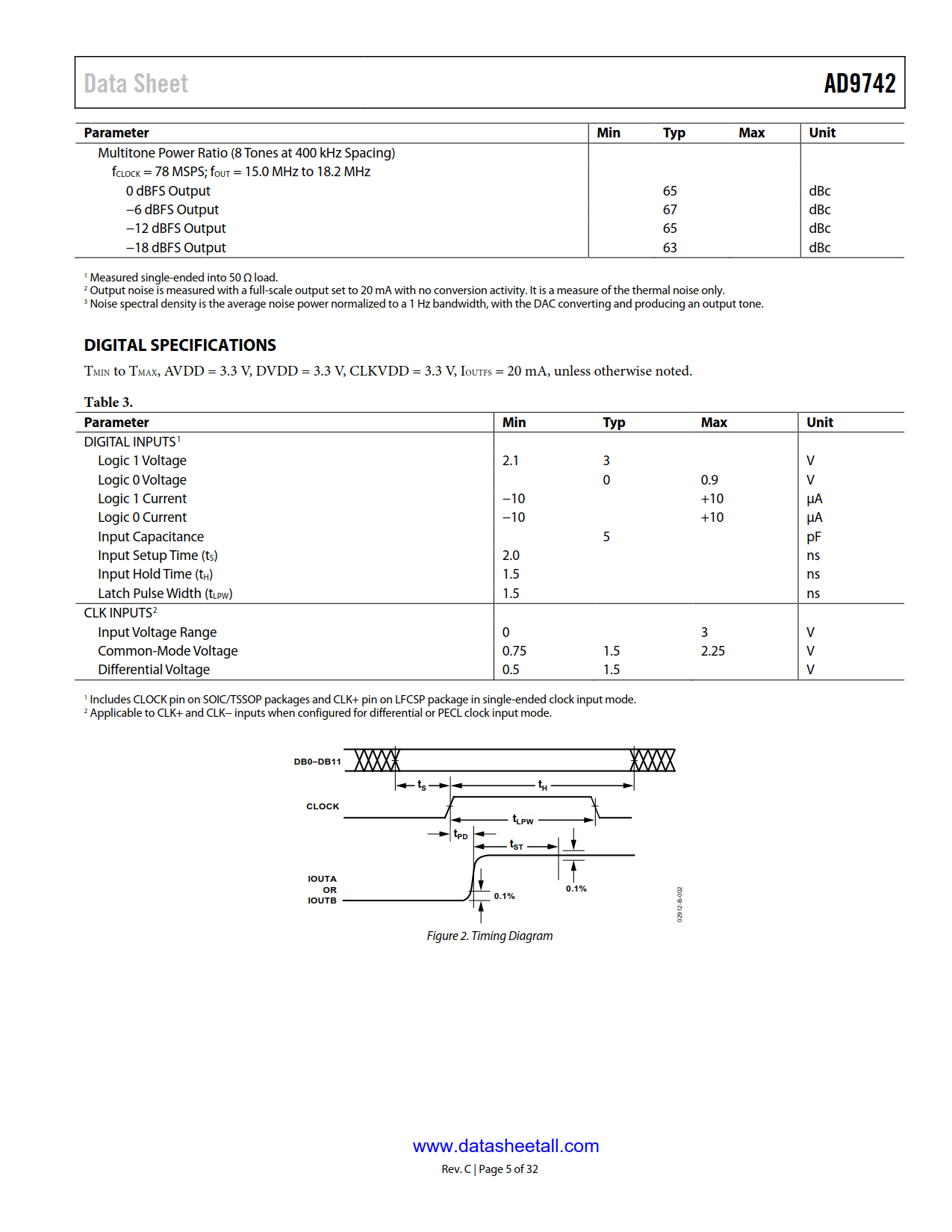

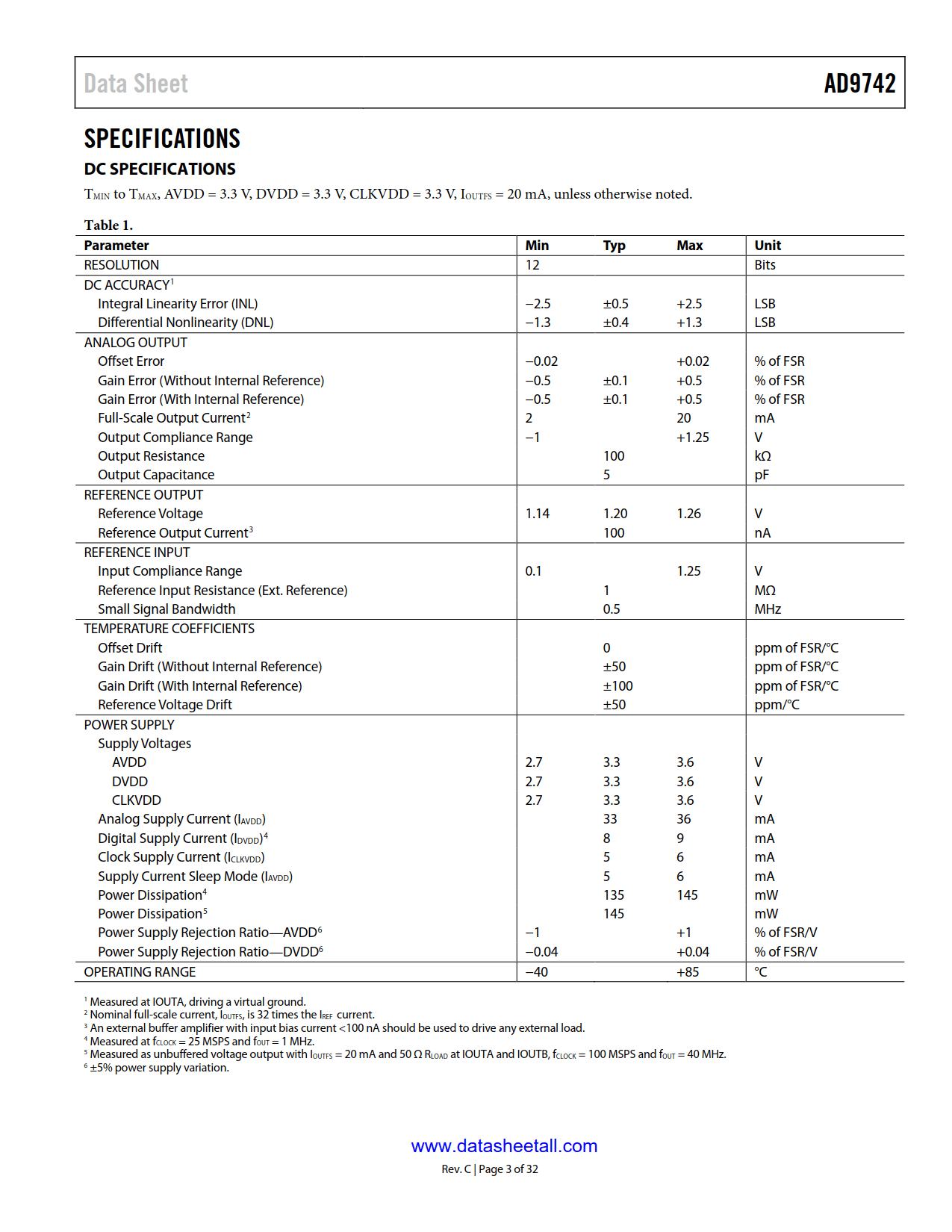

AD9742 Datasheet(Picture)

AD9742 Features

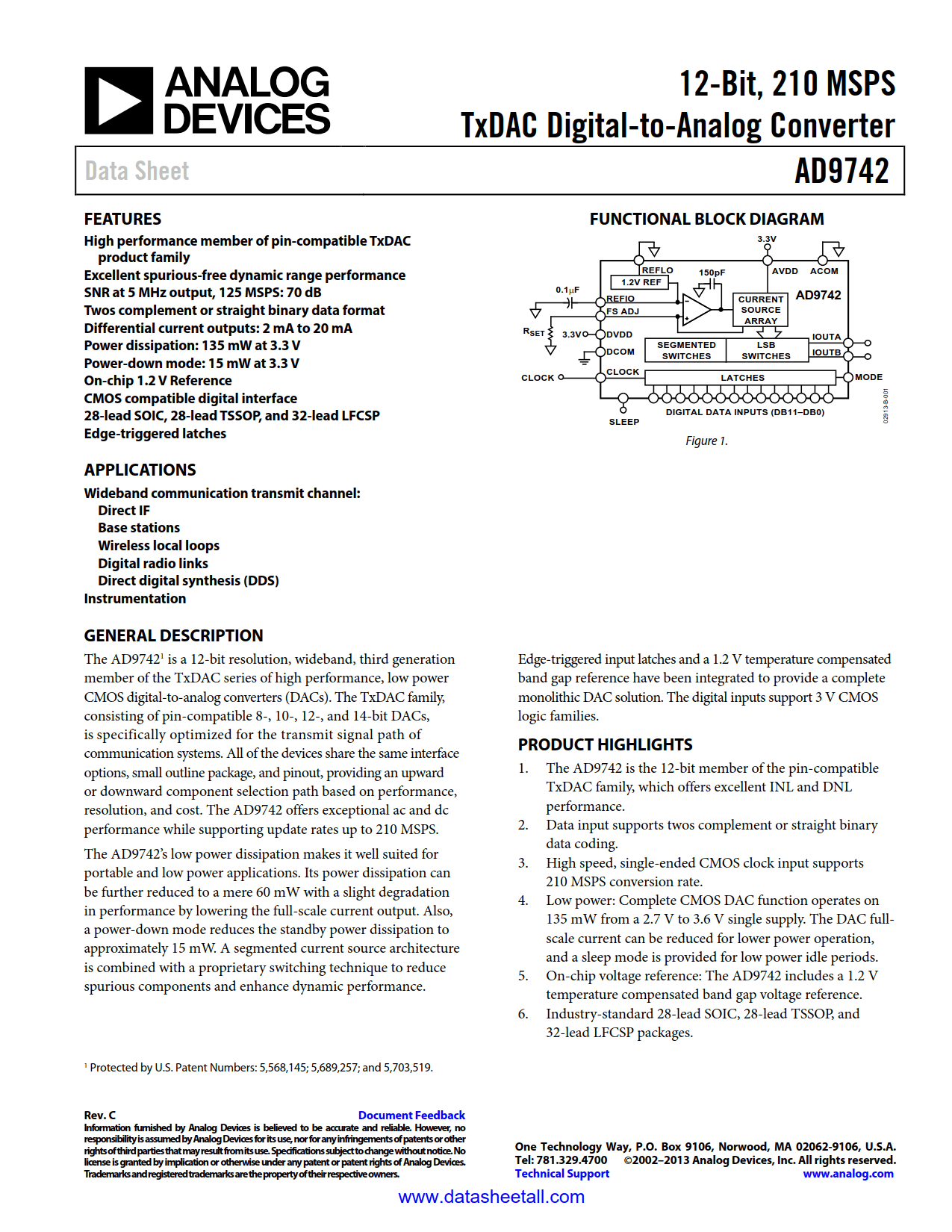

  • High performance member of pin-compatible TxDAC product family
  • Excellent spurious-free dynamic range performance
  • SNR at 5 MHz output, 125 MSPS: 70 dB
  • Twos complement or straight binary data format
  • Differential current outputs: 2 mA to 20 mA
  • Power dissipation: 135 mW at 3.3 V
  • Power-down mode: 15 mW at 3.3 V
  • On-chip 1.2 V Reference
  • CMOS compatible digital interface
  • 28-lead SOIC, 28-lead TSSOP, and 32-lead LFCSP
  • Edge-triggered latches

AD9742 Applications

  • Wideband communication transmit channel:
    • Direct IF
    • Base stations
    • Wireless local loops
    • Digital radio links
    • Direct digital synthesis (DDS)
  • Instrumentation

AD9742 Description

The AD9742 is a 12-bit resolution, wideband, third generation member of the TxDAC series of high performance, low power CMOS digital-to-analog converters (DACs). The TxDAC family, consisting of pin-compatible 8-, 10-, 12-, and 14-bit DACs, is specifically optimized for the transmit signal path of communication systems. All of the devices share the same interface options, small outline package, and pinout, providing an upward or downward component selection path based on performance, resolution, and cost. The AD9742 offers exceptional ac and dc performance while supporting update rates up to 210 MSPS.

The AD9742’s low power dissipation makes it well suited for portable and low power applications. Its power dissipation can be further reduced to a mere 60 mW with a slight degradation in performance by lowering the full-scale current output. Also, a power-down mode reduces the standby power dissipation to approximately 15 mW. A segmented current source architecture is combined with a proprietary switching technique to reduce spurious components and enhance dynamic performance.

Edge-triggered input latches and a 1.2 V temperature compensated band gap reference have been integrated to provide a complete monolithic DAC solution. The digital inputs support 3 V CMOS logic families.
