AD9225 Datasheet PDF (Analog Devices; Inc.)

AD9225 Datasheet Applicable Part

Part No.	Packing	SPQ	Marking	MSL	Pins	Temp Range	Package Description	Buy
AD9225AR	Tube	27	AD9225AR	1	28	-40°C ~ 85°C	28-Lead SOIC_W
AD9225ARS	Tube	47	AD9225ARS	1	28	-40°C ~ 85°C	28-Lead SSOP
AD9225ARSRL	Reel	1500	AD9225ARS	1	28	-40°C ~ 85°C	28-Lead SSOP
AD9225ARZ	Tube	27	AD9225ARZ	1	28	-40°C ~ 85°C	28-Lead SOIC_W
AD9225ARZRL	Reel	1000	AD9225ARZ	1	28	-40°C ~ 85°C	28-Lead SOIC_W
AD9225ARSZ	Tube	47	AD9225ARSZ	1	28	-40°C ~ 85°C	28-Lead SSOP
AD9225ARSZRL	Reel	1500	AD9225ARSZ	1	28	-40°C ~ 85°C	28-Lead SSOP

SPQ：Standard Pack Quantity；MSL：Moisture Sensitivity Level

AD9225 Features

Low Power Dissipation: 280 mW
Single +5V Supply
No Missing Codes Guaranteed
DNL: ±0.4 LSB
On-Chip Sample-and-Hold Amplifier and Voltage Reference
SNR: 71 dB
SFDR: -85 dB
Out-of-Range Indicator
Straight Binary Output Data
28-Lead SOIC
28-Lead SSOP
Compatible with 3 V Logic

AD9225 Description

The AD9225 is a monolithic, single supply 12-bit, 25MSPS Analog to Digital Converter with an on-chip, high performance sample-and-hold amplifier and voltage reference. The AD9225 uses a multi-stage differential pipelined architecture with output error correction logic to provide 12-bit accuracy at 25MSPS data rates and guarantees no missing codes over the full operating temperature range.

Part No.：	AD9225
Page：	25 Pages
Size：	896 KB
Manufacturer：	Analog Devices, Inc.
Logo：
Views：	0
Update Time：	2025-02-14 14:21:02
DataSheet：	Download

AD9225 Datasheet

AD9225 Datasheet Applicable Part

AD9225 Datasheet(PDF)

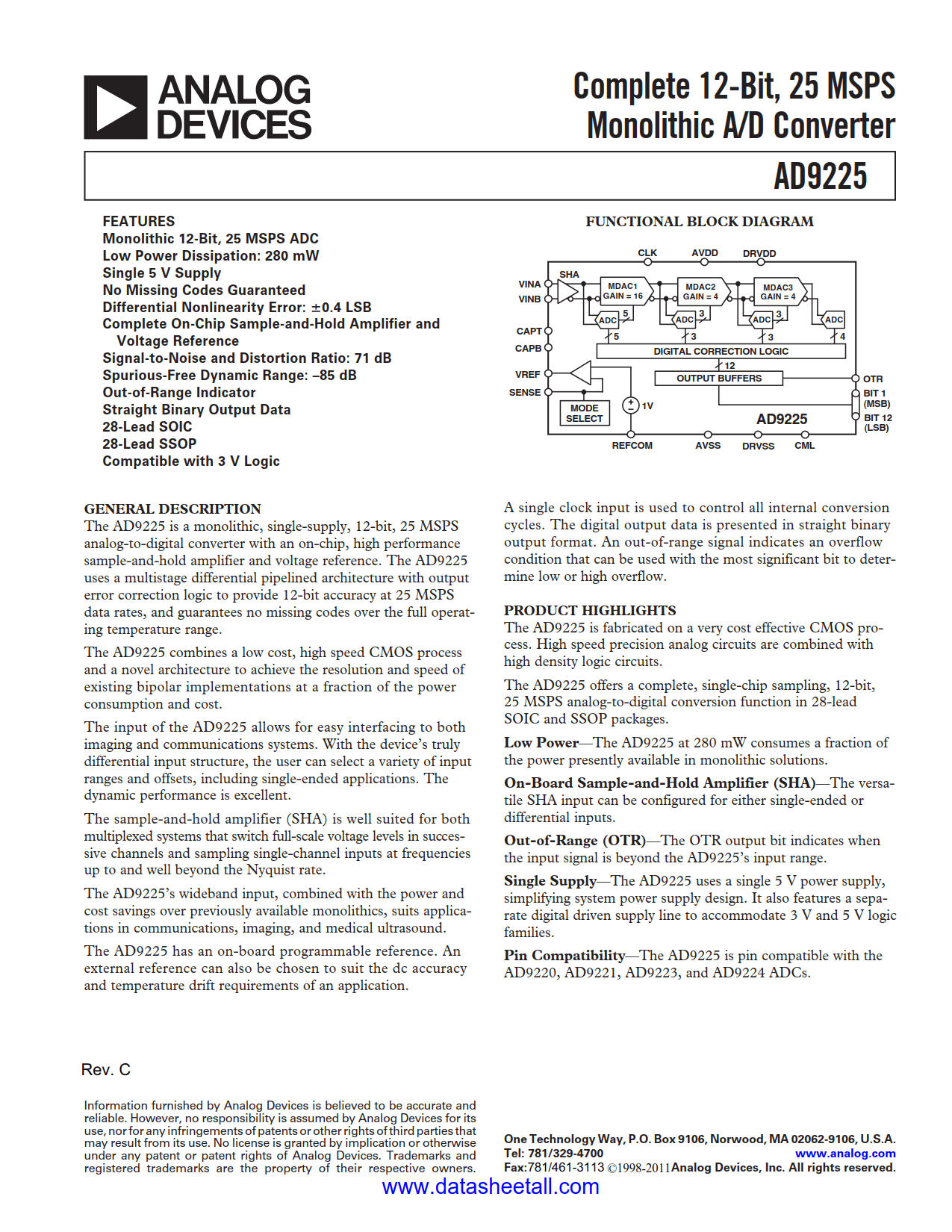

AD9225 Datasheet(Picture)
