AD8665 Datasheet

AD8665 Datasheet

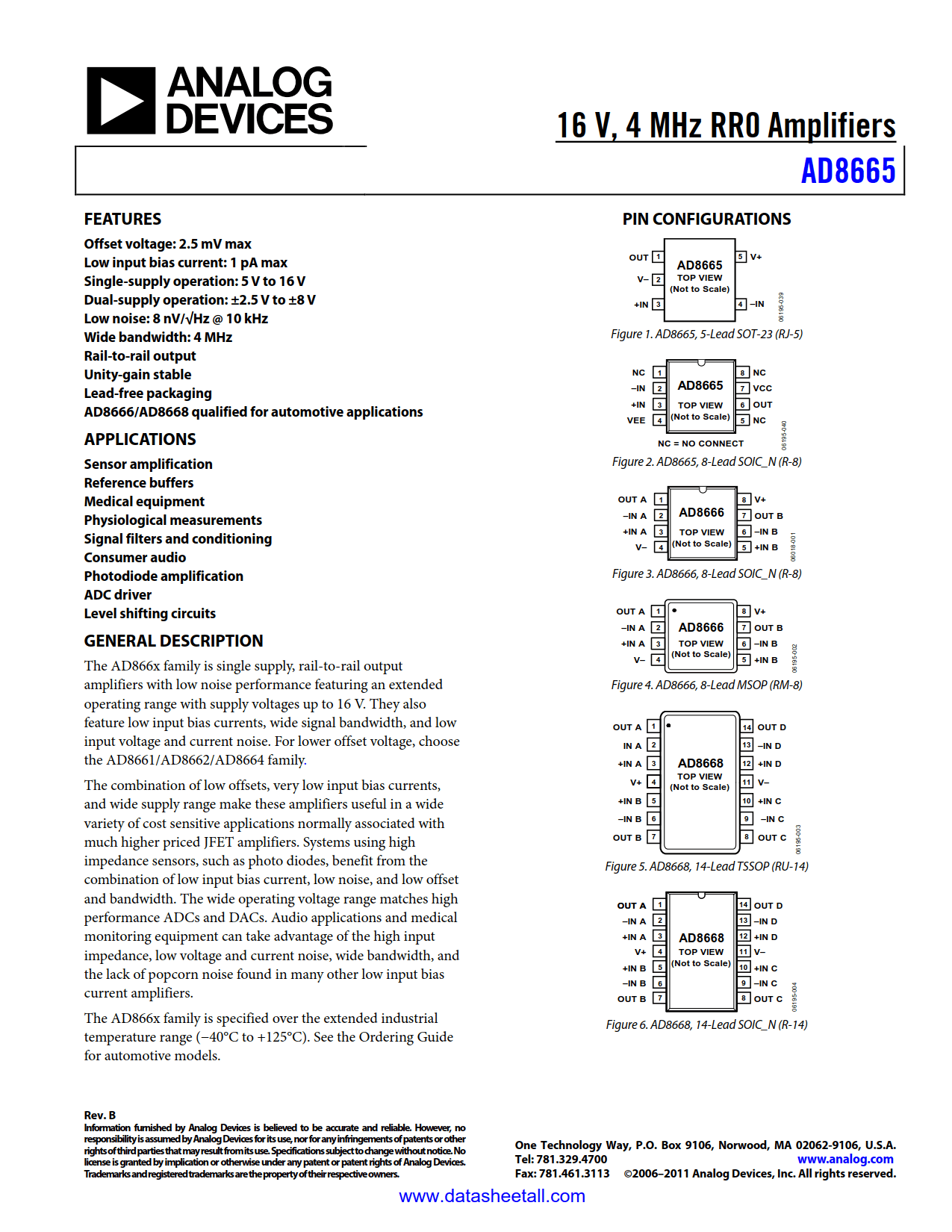

16 V, 4 MHz Rail-to-Rail Single Op Amp
Part No.: AD8665
Page: 16 Pages
Size: 323 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 1
Update Time: 2023-12-21 11:27:10
DataSheet: Download

AD8665 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
AD8665ARZ Tube 98   1 8 -40°C ~ 125°C 8-Lead SOIC_N
AD8665ARZ-REEL Reel 2500   1 8 -40°C ~ 125°C 8-Lead SOIC_N
AD8665ARZ-REEL7 Reel 1000   1 8 -40°C ~ 125°C 8-Lead SOIC_N
AD8665ARJZ-R2 Reel     1 5 -40°C ~ 125°C 5-Lead SOT-23
AD8665ARJZ-REEL Reel     1 5 -40°C ~ 125°C 5-Lead SOT-23
AD8665ARJZ-REEL7 Reel 3000   1 5 -40°C ~ 125°C 5-Lead SOT-23
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

AD8665 Datasheet(PDF)

AD8665 Datasheet(Picture)

AD8665 Features

  • Offset voltage: 2.5 mV max
  • Low input bias current: 1 pA max
  • Single-supply operation: 5 V to 16 V
  • Dual-supply operation: ±2.5 V to ±8 V
  • Low noise: 8 nV/√Hz @ 10 kHz
  • Wide bandwidth: 4 MHz
  • Rail-to-rail output
  • Unity-gain stable
  • Lead-free packaging

AD8665 Applications

  • Reference Buffers
  • Medical Equipment
  • Physiological measurements
  • Signal filters and conditioning
  • Consumer audio
  • Photodiode amplification
  • ADC driver
  • Level shifting circuits

AD8665 Description

The AD8665 are single supply, rail-to-rail output amplifiers with low noise performance featuring an extended operating range with supply voltages up to 16 V. They also feature low input bias currents, wide signal bandwidth, and low input voltage and current noise. For lower offset voltage, choose the AD8661/AD8662/AD8664 family.

The combination of low offset, very low input bias current, and a wide supply range makes these amplifiers useful in a wide variety of applications usually associated with higher priced JFET amplifiers. Systems using high impedance sensors, such as photodiodes, benefit from the combination of low input bias current, low noise, low offset, and wide bandwidth. The wide operating voltage range matches high performance ADCs and DACs. Audio applications and medical monitoring equipment can take advantage of the high input impedance, low voltage and current noise, wide bandwidth, and the lack of popcorn noise found in many other low input bias current amplifiers. The AD8665 is specified over the extended industrial temperature range (−40°C to +125°C).
