AD8626 Datasheet

AD8626 Datasheet

Precision, Low Power, Single-Supply, JFET Amplifier in MSOP
Part No.: AD8626
Page: 20 Pages
Size: 257 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 1
Update Time: 2024-01-04 11:12:06
DataSheet: Download

AD8626 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
AD8626ARMZ-REEL Reel 3000   1 8 -40°C ~ 85°C 8-Lead MSOP
AD8626ARMZ Tube 50   1 8 -40°C ~ 85°C 8-Lead MSOP
AD8626ARZ Tube 98   1 8 -40°C ~ 85°C 8-Lead SOIC_N
AD8626ARZ-REEL Tube 2500   1 8 -40°C ~ 85°C 8-Lead SOIC_N
AD8626ARZ-REEL7 Reel 1000   1 8 -40°C ~ 85°C 8-Lead SOIC_N
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

AD8626 Datasheet(PDF)

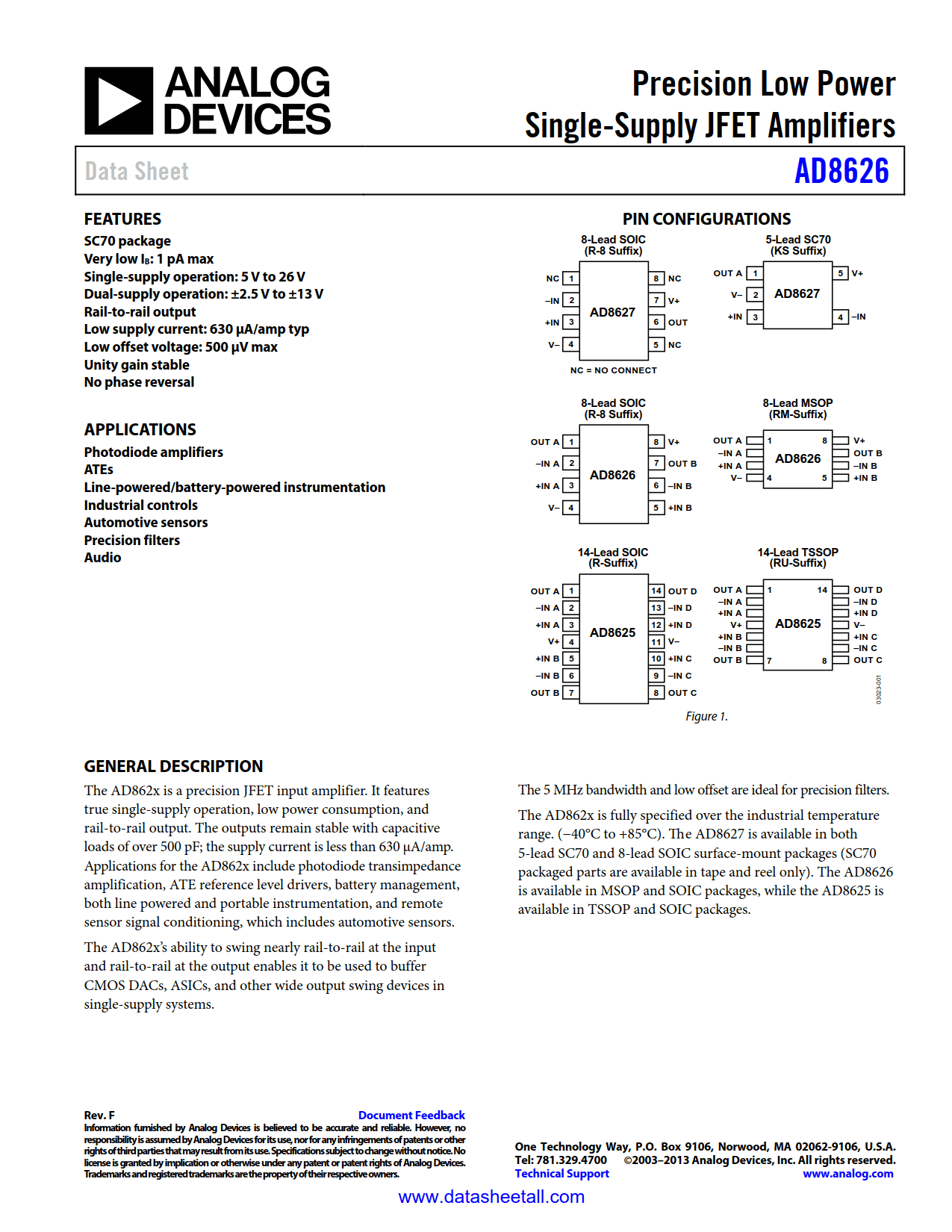

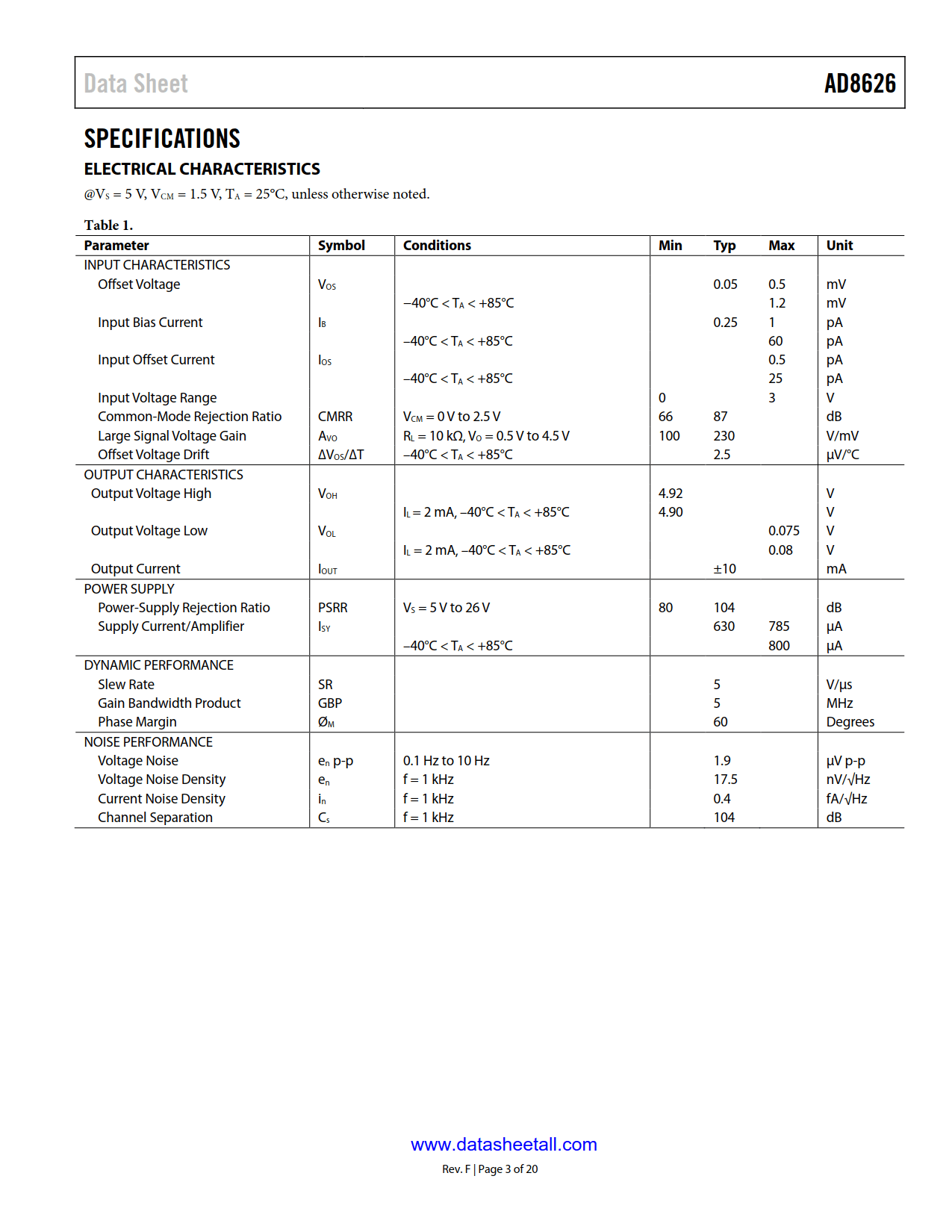

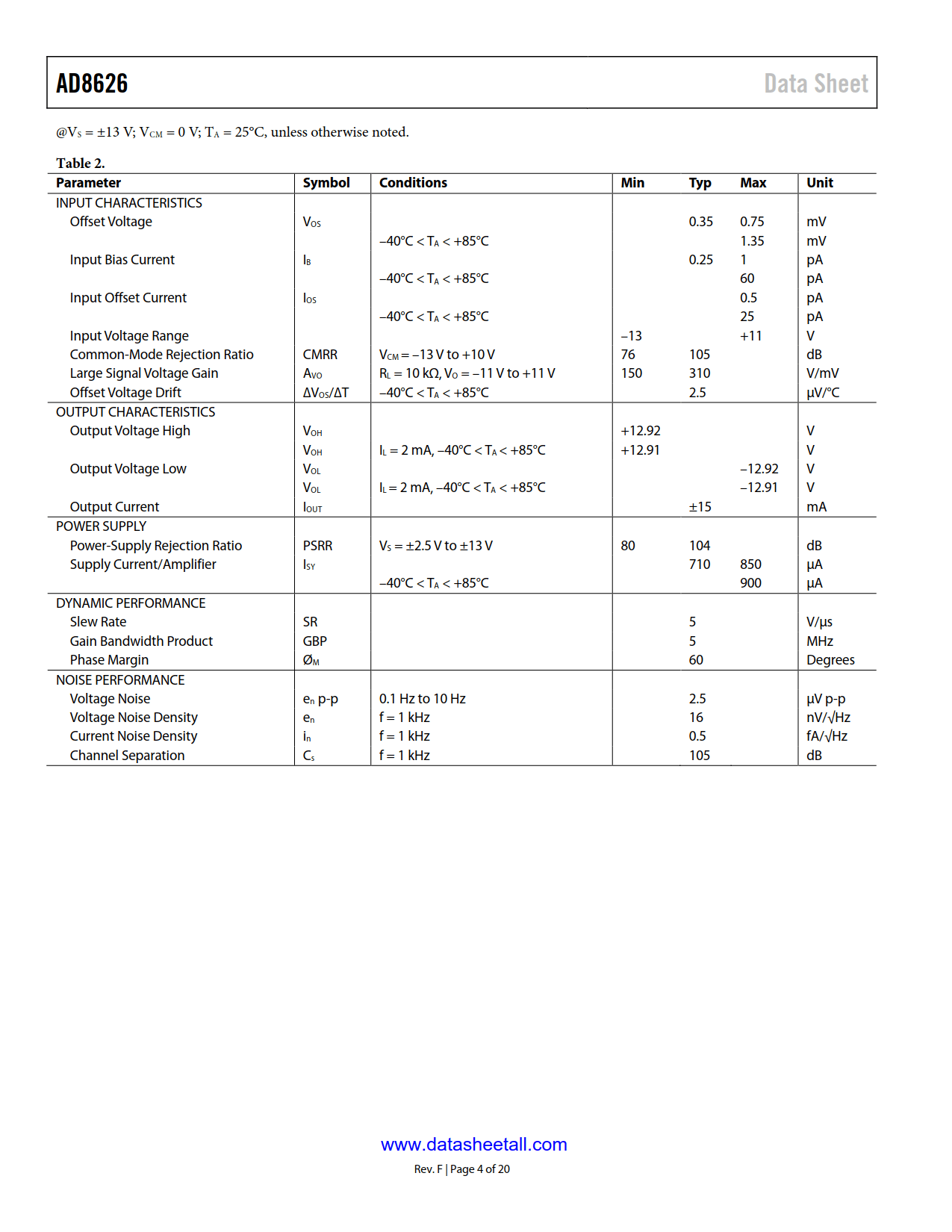

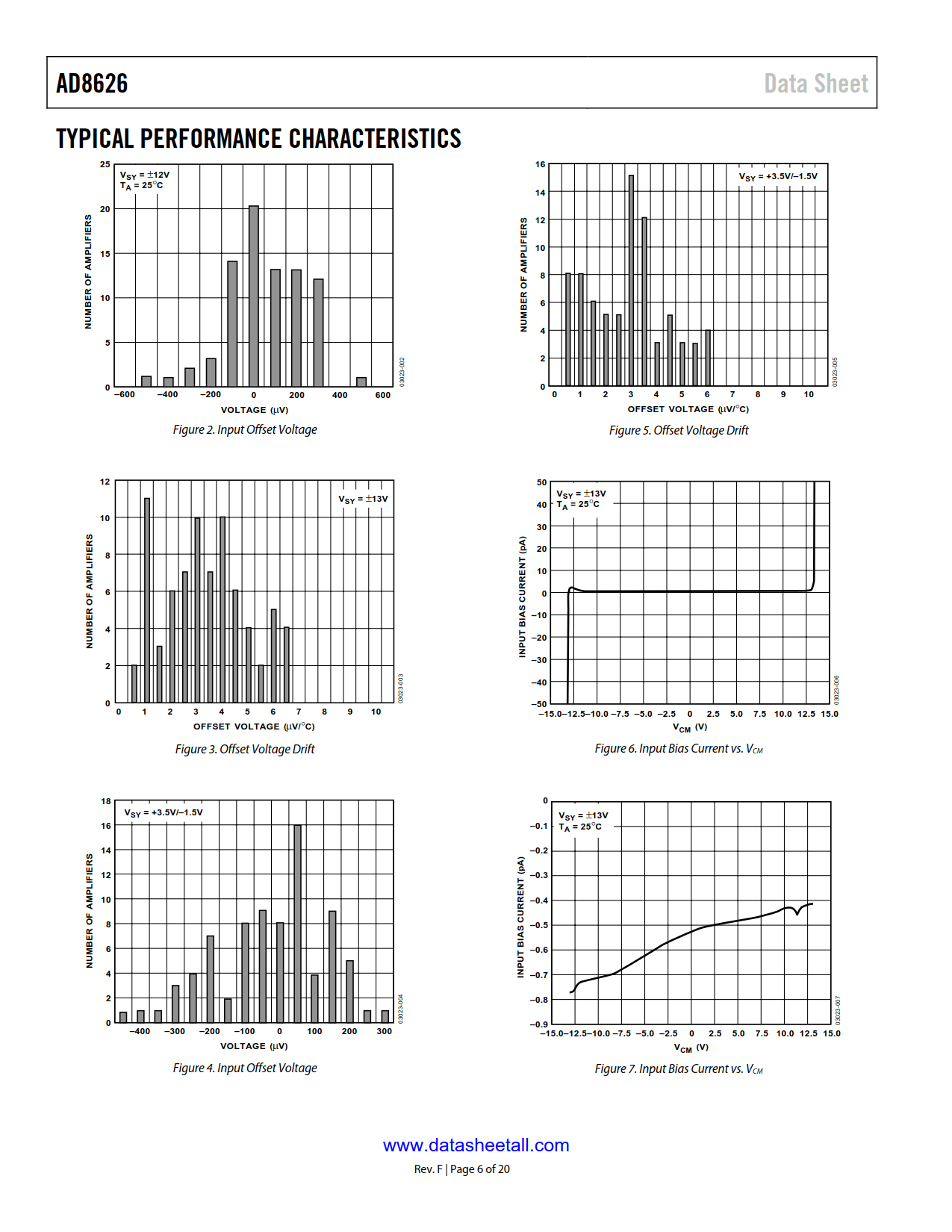

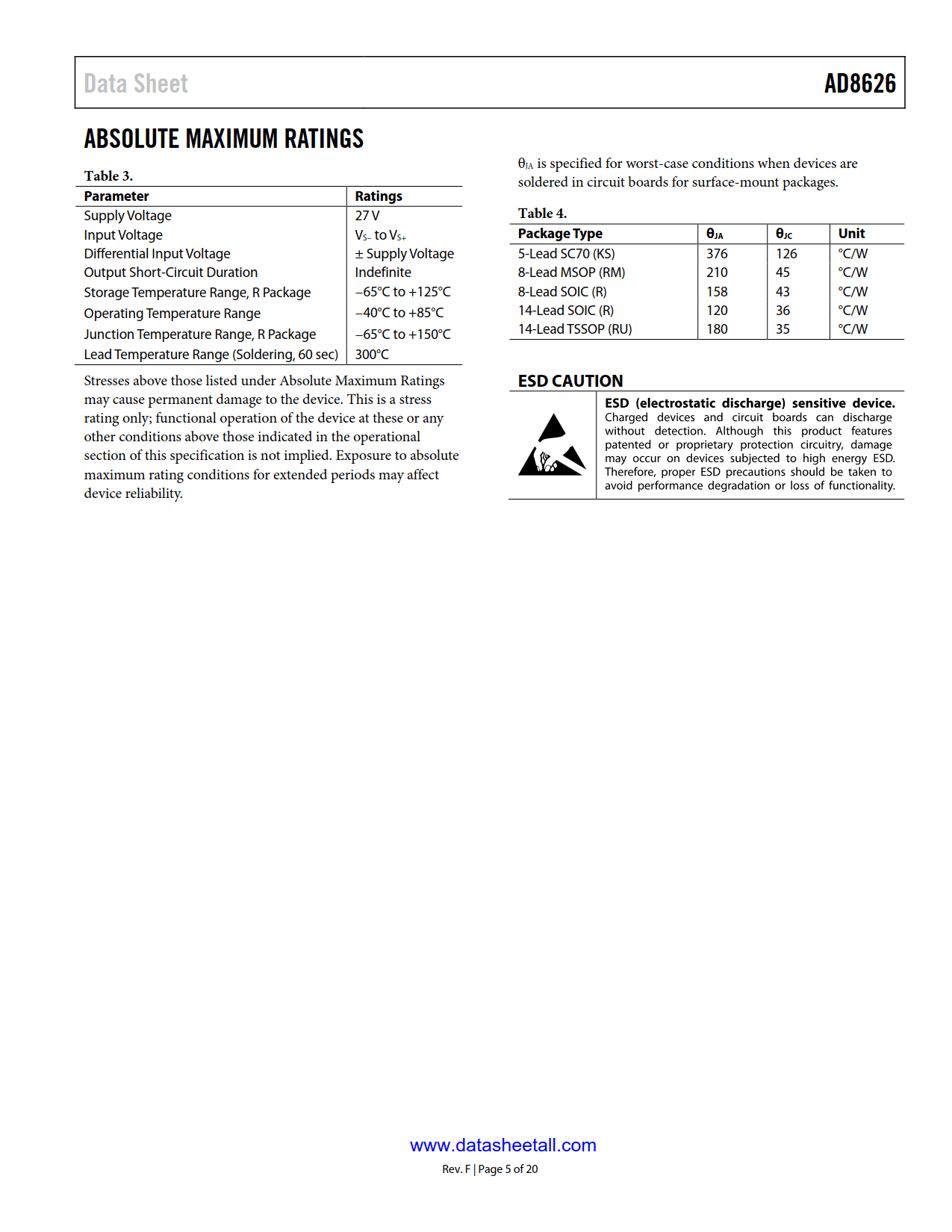

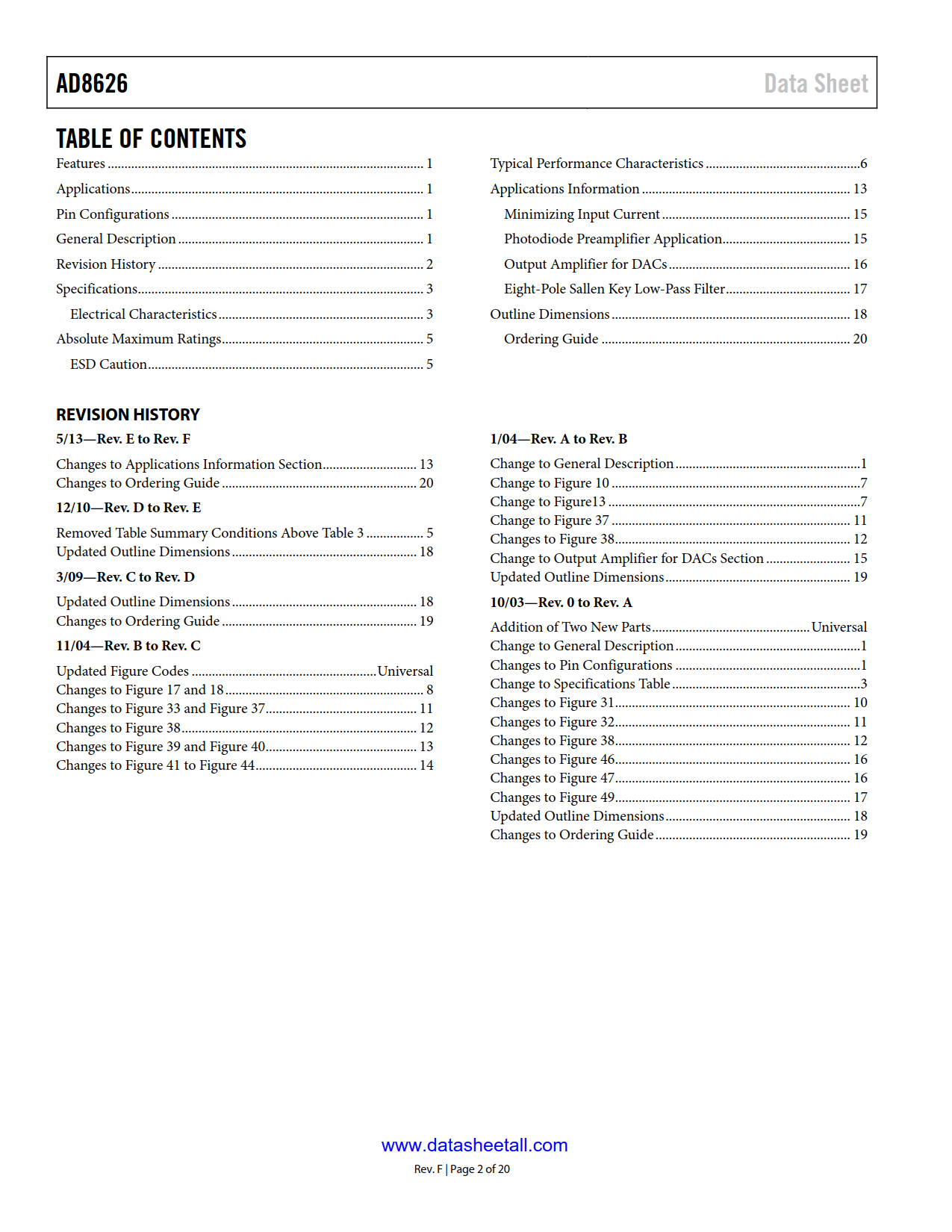

AD8626 Datasheet(Picture)

AD8626 Features

  • SC70 Package
  • Very Low IB: 1 pA max
  • Single-supply Operation: 5 V to 26 V
  • Dual-supply Operation: ±2.5 V to ±13 V
  • Rail-to-rail Output
  • Low Supply Current: 630 µA/amp typ
  • Low Offset Voltage: 500 µV max
  • Unity Gain Stable
  • No Phase Reversal

AD8626 Applications

  • Photodiode amplifiers
  • ATEs
  • Line-powered/battery-powered instrumentation
  • Industrial controls
  • Automotive sensors
  • Precision filters
  • Audio

AD8626 Description

The AD8626 is a precision JFET input amplifier. It features true single-supply operation, low power consumption, and rail-to-rail output. The outputs remain stable with capacitive loads of over 500 pF; the supply current is less than 630 µA/amp. Applications for the AD8626 include photodiode transimpedance amplification, ATE reference level drivers, battery management, both line powered and portable instrumentation, and remote sensor signal conditioning including automotive sensors.

The AD8626’s ability to swing nearly rail-to-rail at the input and rail-to-rail at the output enables it to be used to buffer CMOS, DACs, ASICs, and other wide output swing devices in single-supply systems.

The 5 MHz bandwidth and low offset are ideal for precision filters.

The AD8626 is fully specified over the extended industrial (−40°C to +85°C) temperature range. The AD8626 is available in MSOP.
