| Part No.： | AD8615 |
| Page： | 20 Pages |
| Size： | 415 KB |
| Manufacturer： | Analog Devices, Inc. |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2023-09-13 15:52:29 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| AD8615AUJZ-R2 | Reel | 250 | BKA | 1 | 5 | -40°C ~ 125°C | 5-Lead TSOT-23 | |
| AD8615AUJZ-REEL | Reel | 10000 | BKA | 1 | 5 | -40°C ~ 125°C | 5-Lead TSOT-23 | |
| AD8615AUJZ-REEL7 | Reel | 3000 | BKA | 1 | 5 | -40°C ~ 125°C | 5-Lead TSOT-23 |

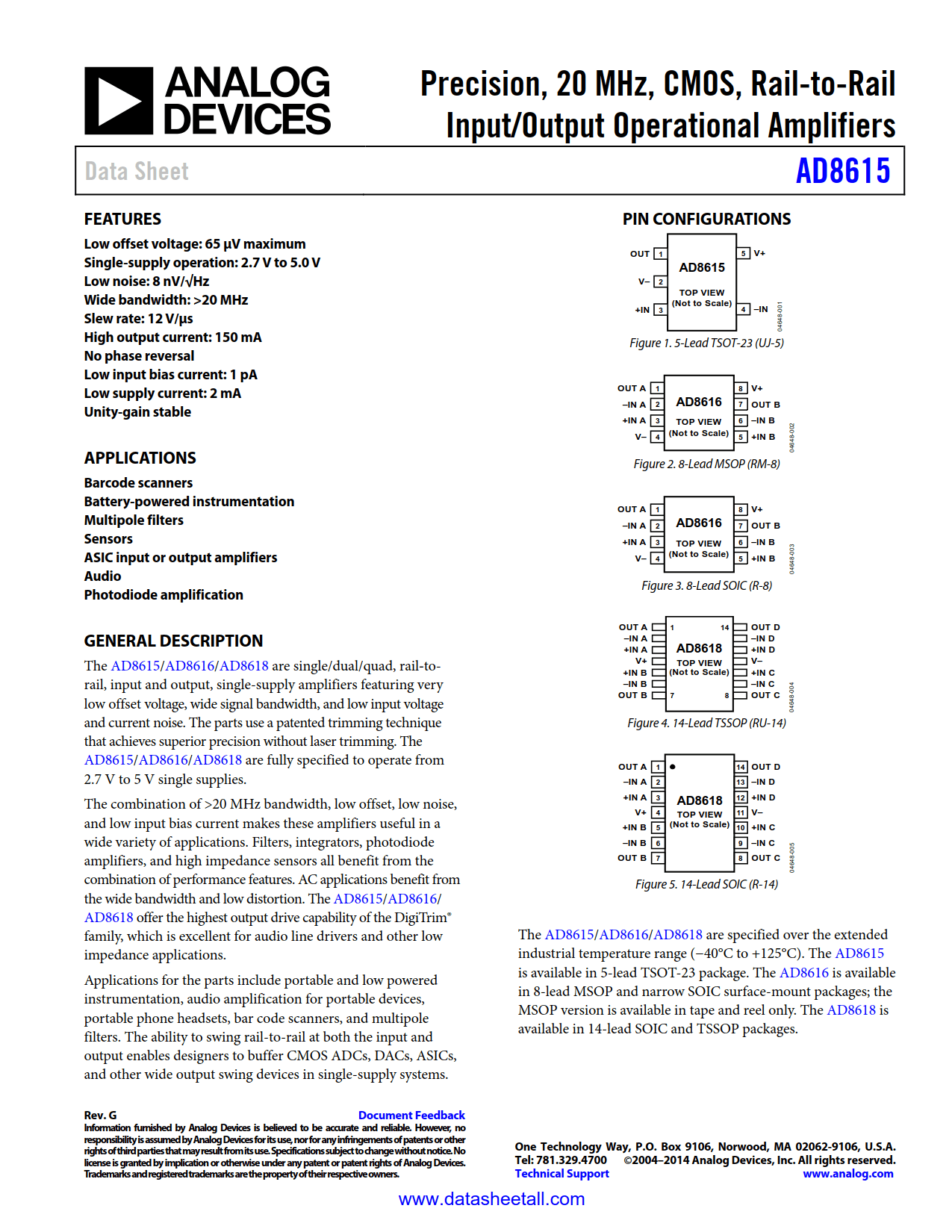

The AD8615 is single rail-to-rail input and output single supply amplifiers featuring very low offset voltage, wide signal bandwidth, and low input voltage and current noise. These amplifiers use a patented trimming technique that achieves superior precision without laser trimming. All are fully specified to operate from +2.7 V to +5 V single supply.
The combination of low offsets, low noise, very low input bias currents, and high speed make these amplifiers useful in a wide variety of applications. Filters, integrators, photo-diode amplifiers and high impedance sensors all benefit from the combination of performance features. Audio and other AC applications benefit from the wide bandwidth and low distortion.
