Precision, Low Noise, CMOS, RRIO Op Amp (single)
Part No.: AD8605
Page: 24 Pages
Size: 641 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 1
Update Time: 2023-10-17 15:04:57
DataSheet: Download

AD8605 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
AD8605ACBZ-REEL7 Reel 4000   3 5 -40°C ~ 125°C 5-Ball WLCSP
AD8605ARTZ-R2 Reel 250   3 5 -40°C ~ 125°C 5-Lead SOT-23
AD8605ARTZ-REEL Reel 10000   3 5 -40°C ~ 125°C 5-Lead SOT-23
AD8605ARTZ-REEL7 Reel 3000   3 5 -40°C ~ 125°C 5-Lead SOT-23
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

AD8605 Datasheet(PDF)

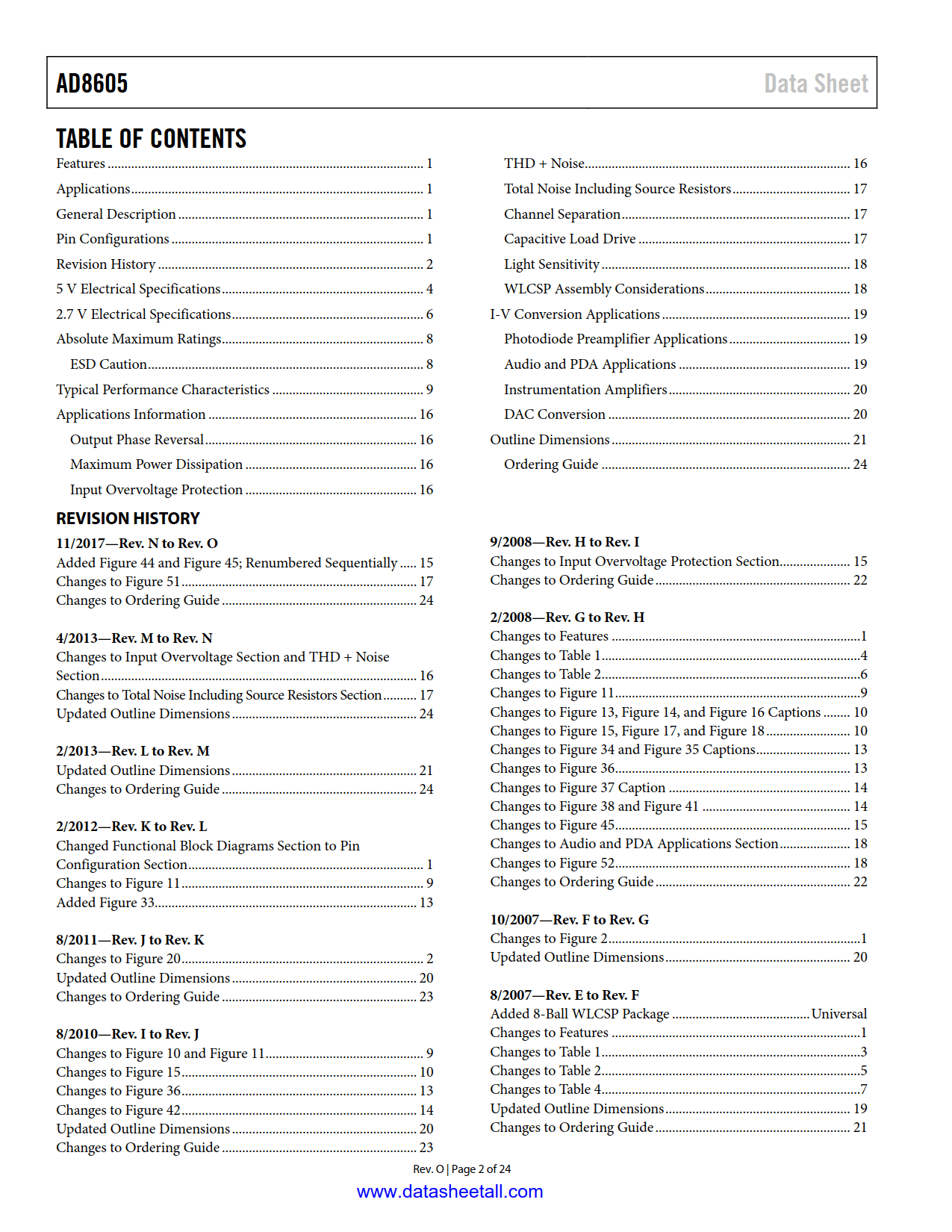

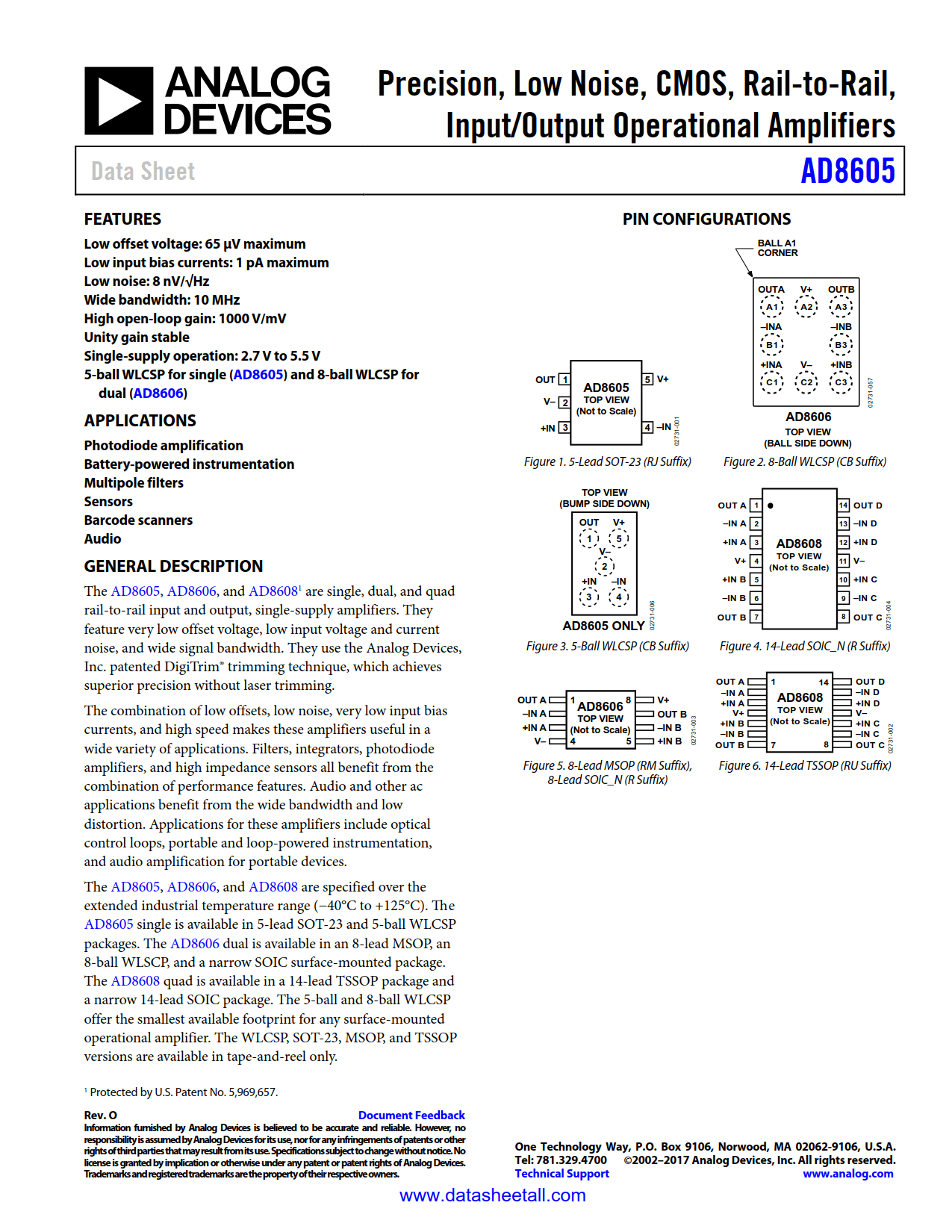

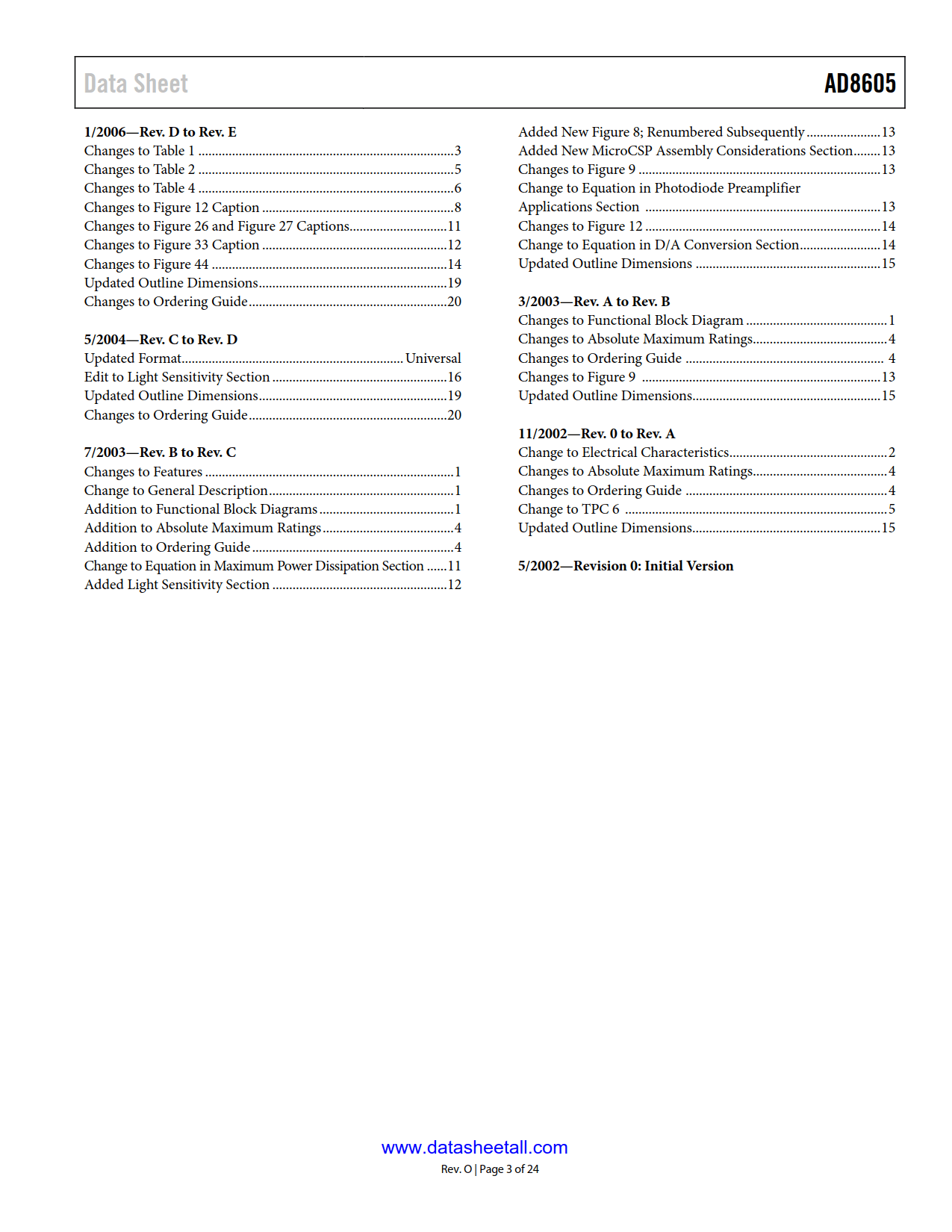

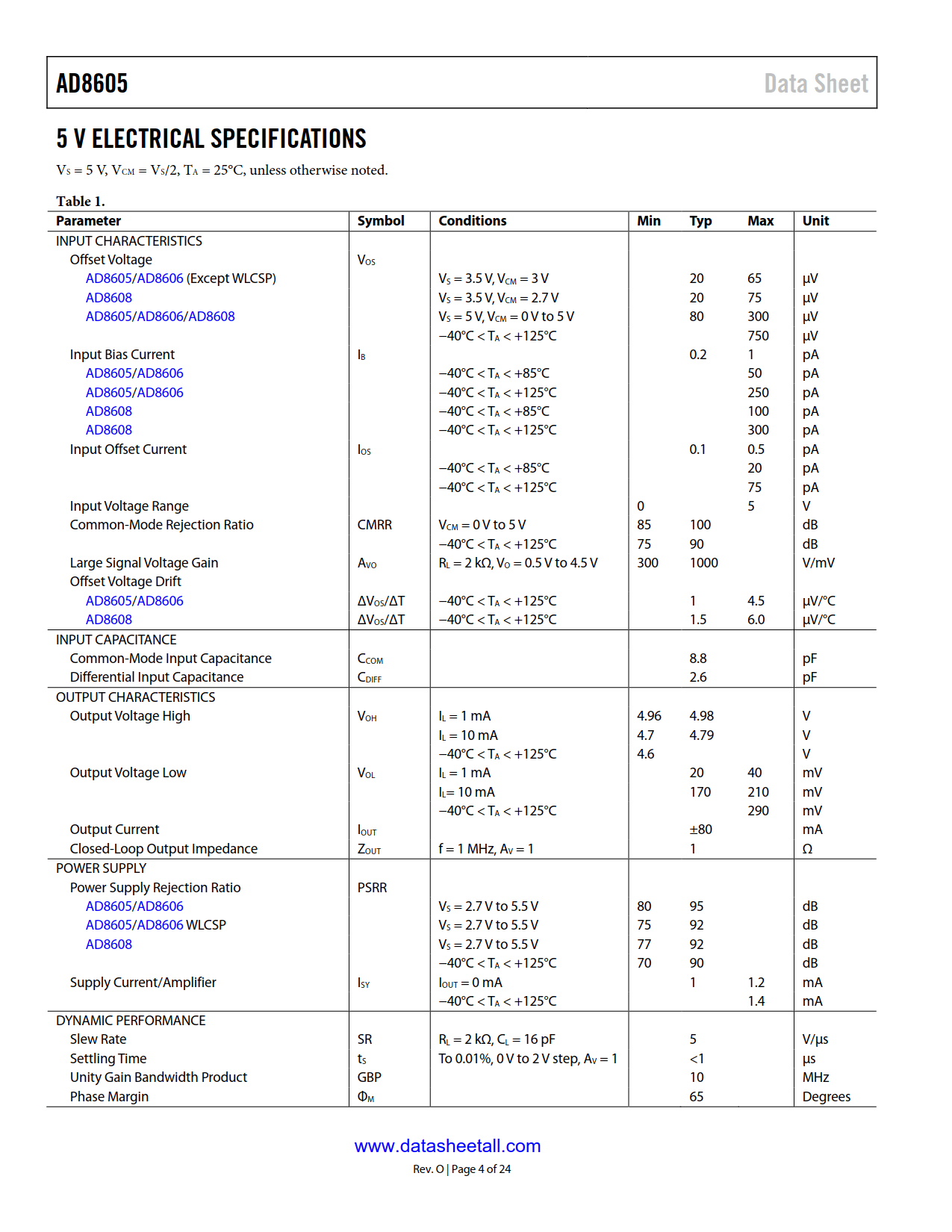

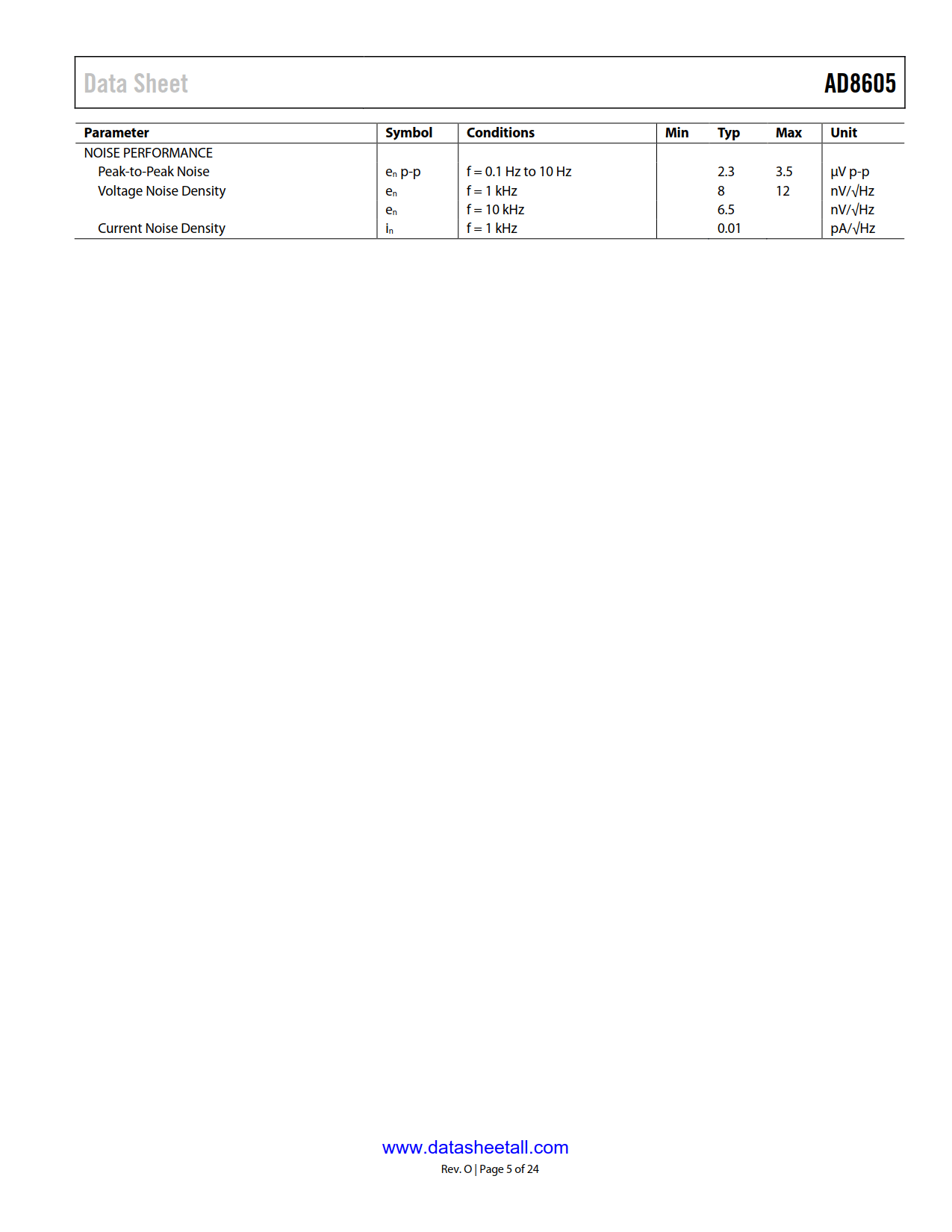

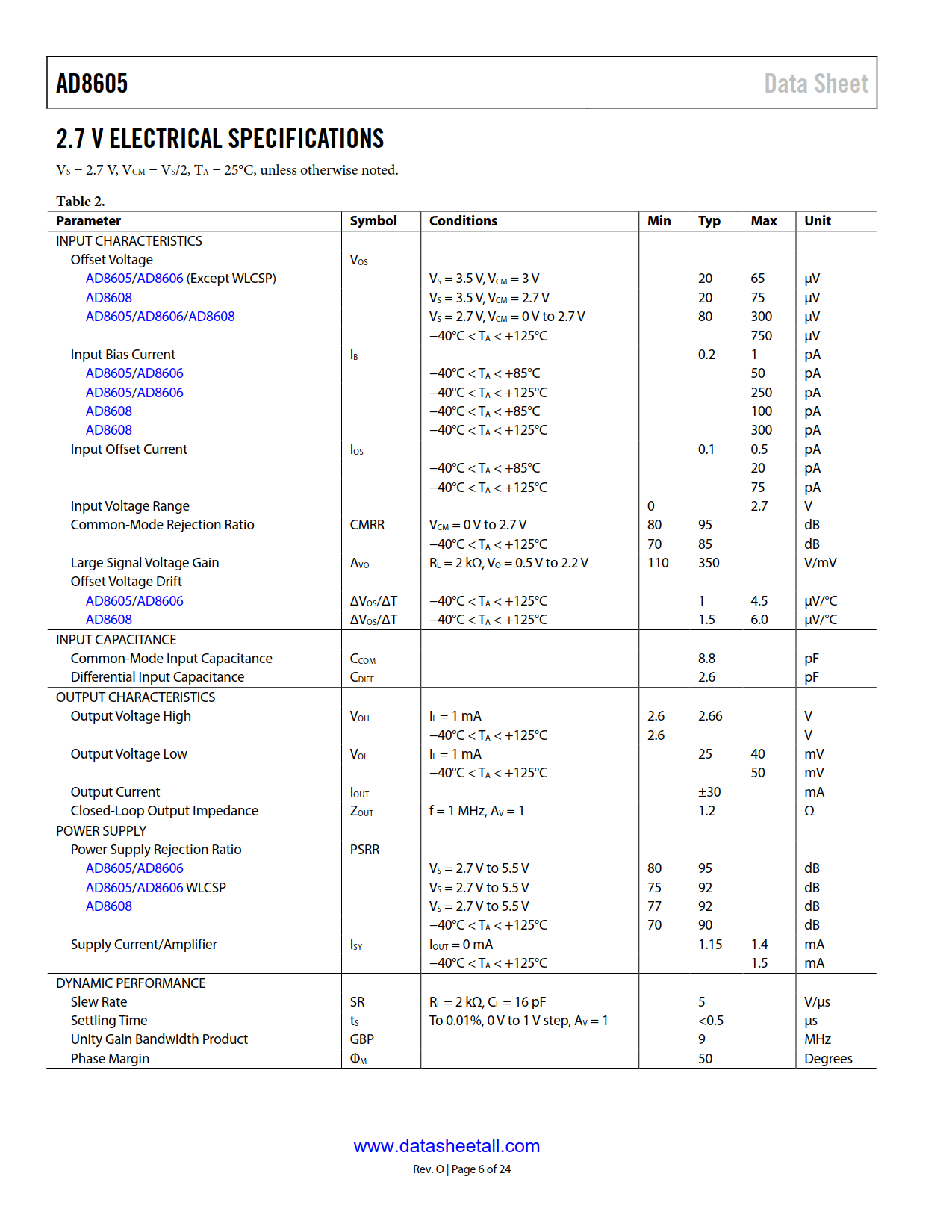

AD8605 Datasheet(Picture)

AD8605 Features

  • Low offset voltage: 65 µV maximum
  • Low input bias currents: 1 pA maximum
  • Low noise: 8 nV/√Hz
  • Wide bandwidth: 10 MHz
  • High open-loop gain: 1000 V/mV
  • Unity gain stable
  • Single-supply operation: 2.7 V to 5.5 V
  • 5-ball WLCSP for single (AD8605)

AD8605 Applications

  • Photodiode amplification
  • Battery-powered instrumentation
  • Multipole filters
  • Sensors
  • Barcode scanners
  • Audio

AD8605 Description

The AD8605 are single rail-to-rail input and output, single-supply amplifiers. They feature very low offset voltage, low input voltage and current noise, and wide signal bandwidth. They use the Analog Devices, Inc. patented DigiTrim® trimming technique, which achieves superior precision without laser trimming.

The combination of low offsets, low noise, very low input bias currents, and high speed makes these amplifiers useful in a wide variety of applications. Filters, integrators, photodiode amplifiers, and high impedance sensors all benefit from the combination of performance features. Audio and other ac applications benefit from the wide bandwidth and low distortion. Applications for these amplifiers include optical control loops, portable and loop-powered instrumentation, and audio amplification for portable devices.

The AD8605 are specified over the extended industrial temperature range (−40°C to +125°C). The AD8605 single is available in 5-lead SOT-23 and 5-ball WLCSP packages. The 5-ball and 8-ball WLCSP offer the smallest available footprint for any surface-mounted operational amplifier. The WLCSP, SOT-23, MSOP, and TSSOP versions are available in tape-and-reel only.
