| Part No.： | AD8417 |
| Page： | 17 Pages |
| Size： | 322 KB |
| Manufacturer： | Analog Devices, Inc. |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-12-02 18:26:08 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| AD8417BRMZ | Tube | 50 | Y4Y | 1 | 8 | -40°C ~ 125°C | 8-Lead MSOP | |
| AD8417BRMZ-RL | Reel | 3000 | Y4Y | 1 | 8 | -40°C ~ 125°C | 8-Lead MSOP | |
| AD8417WBRMZ | Tube | 50 | Y4X | 1 | 8 | -40°C ~ 125°C | 8-Lead MSOP | |
| AD8417WBRMZ-RL | Reel | 3000 | Y4X | 1 | 8 | -40°C ~ 125°C | 8-Lead MSOP | |
| AD8417WBRZ | Tube | 98 | AD8417WBRZ | 1 | 8 | -40°C ~ 125°C | 8-Lead SOIC | |
| AD8417WBRZ-RL | Reel | 2500 | AD8417WBRZ | 1 | 8 | -40°C ~ 125°C | 8-Lead SOIC | |
| AD8417WHRZ | Tube | 98 | AD8417WHRZ | 1 | 8 | -40°C ~ 150°C | 8-Lead SOIC | |
| AD8417WHRZ-RL | Reel | 2500 | AD8417WHRZ | 1 | 8 | -40°C ~ 150°C | 8-Lead SOIC | |
| AD8417WHRMZ | Tube | 50 | Y59 | 1 | 8 | -40°C ~ 150°C | 8-Lead MSOP | |
| AD8417WHRMZ-RL | Reel | 3000 | Y59 | 1 | 8 | -40°C ~ 150°C | 8-Lead MSOP | |
| AD8417WBRMZ-10 | Tube | 50 | A3Y | 1 | 10 | -40°C ~ 125°C | 8-Lead MSOP | |
| AD8417WBRMZ-10RL | Reel | 3000 | A3Y | 1 | 10 | -40°C ~ 125°C | 8-Lead MSOP |

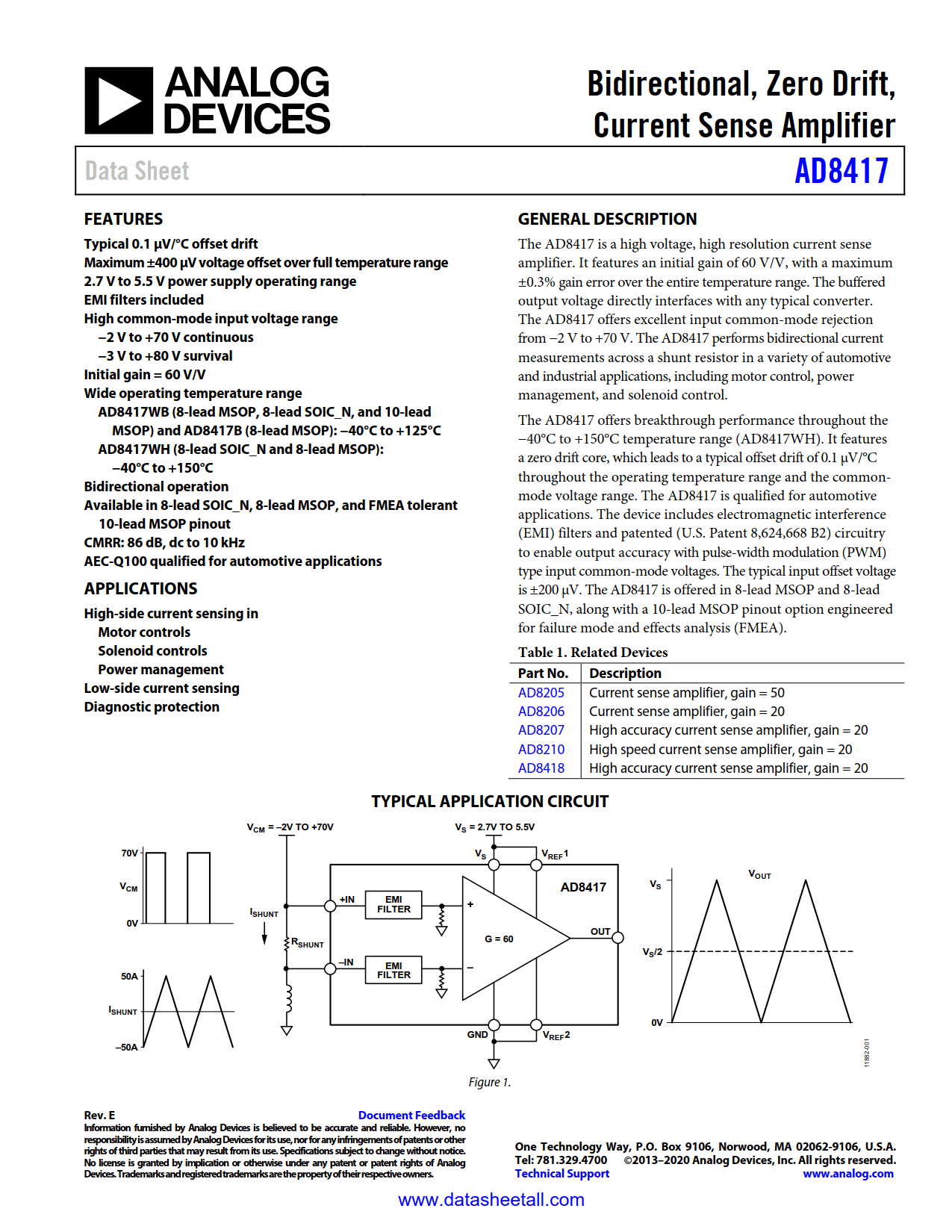

The AD8417 is a high voltage, high resolution current shunt amplifier. It features an initial gain of 60 V/V, with a maximum ±0.3% gain error over the entire temperature range. The buffered output voltage directly interfaces with any typical converter. The AD8417 offers excellent input common-mode rejection from −2 V to +70 V. The AD8417 performs bidirectional current measurements across a shunt resistor in a variety of automotive and industrial applications, including motor control, power management, and solenoid control.

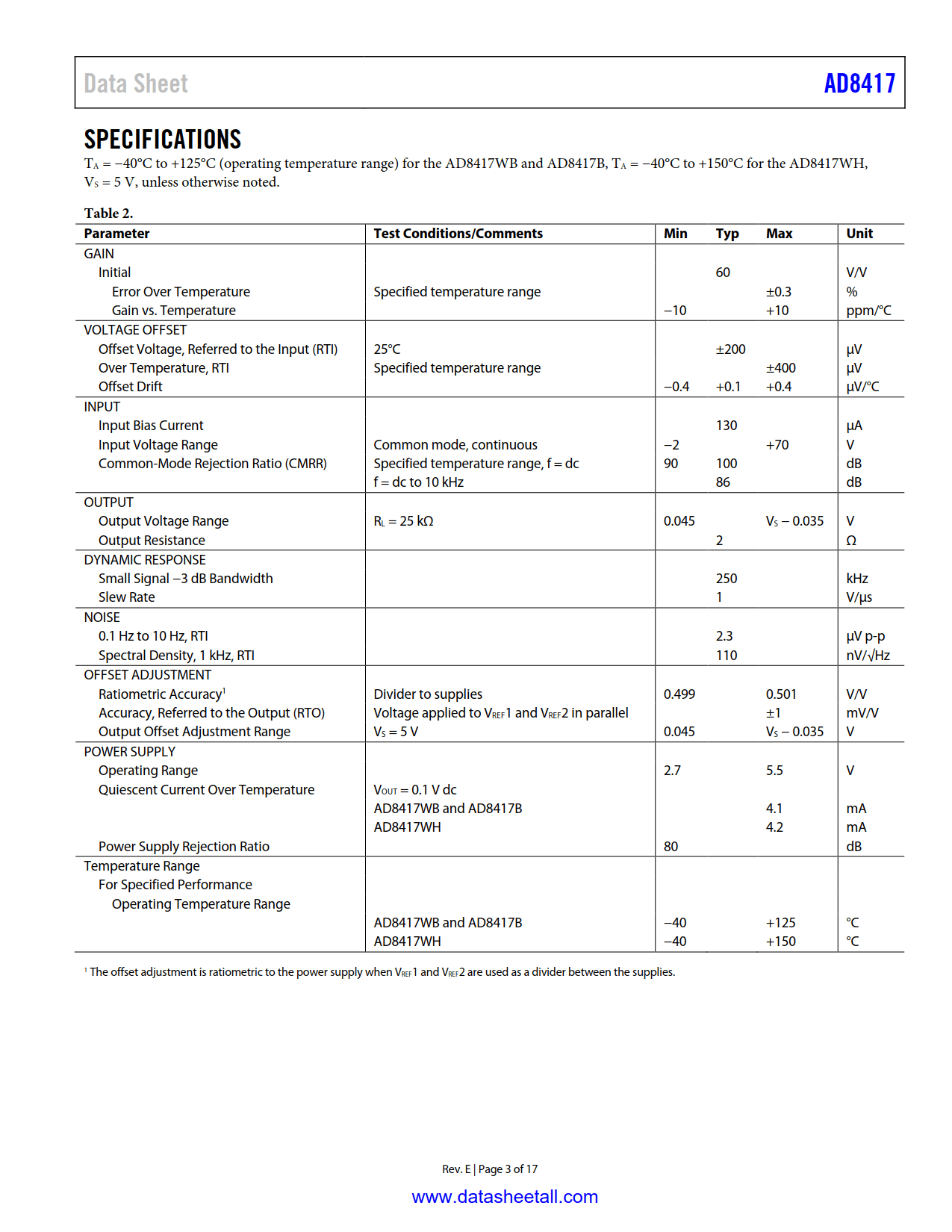

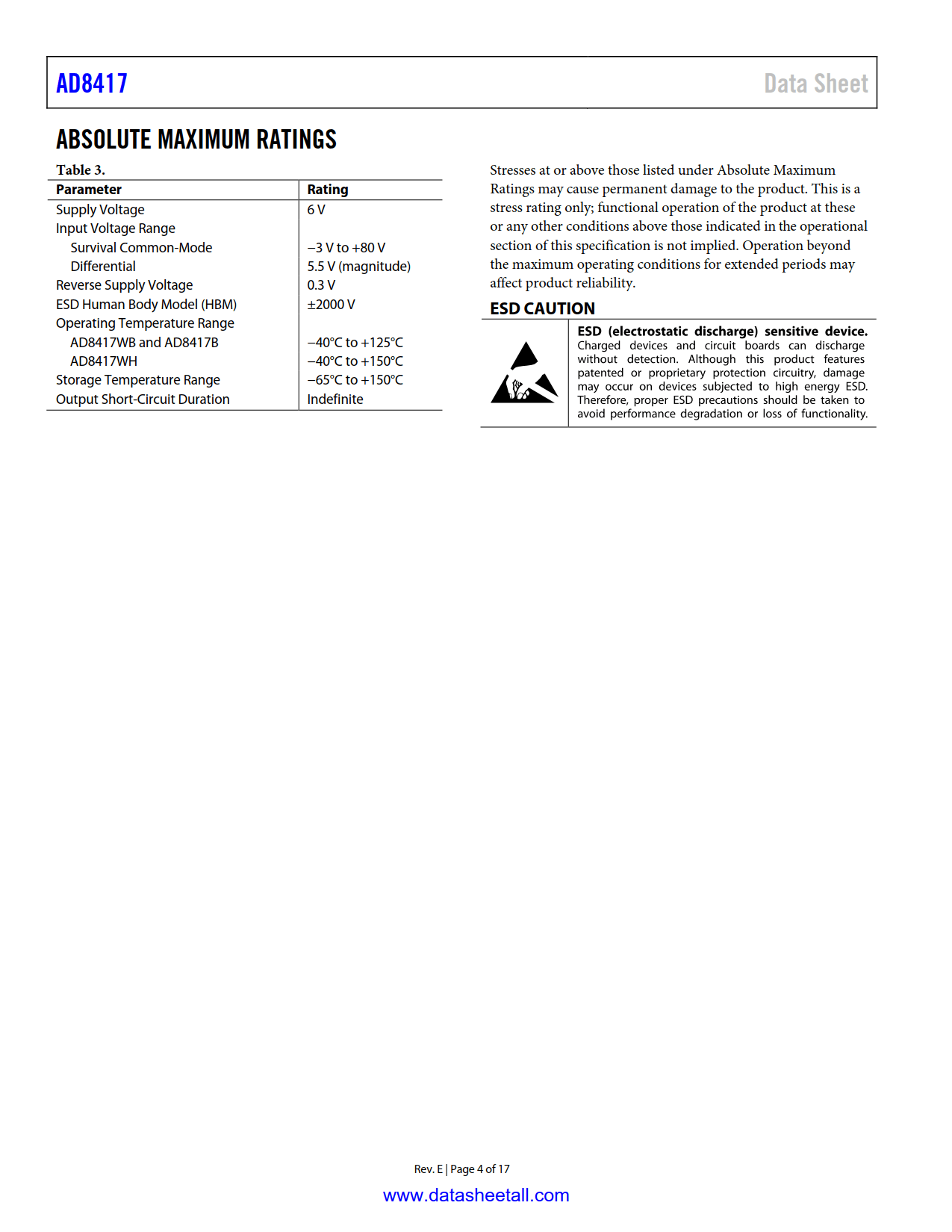

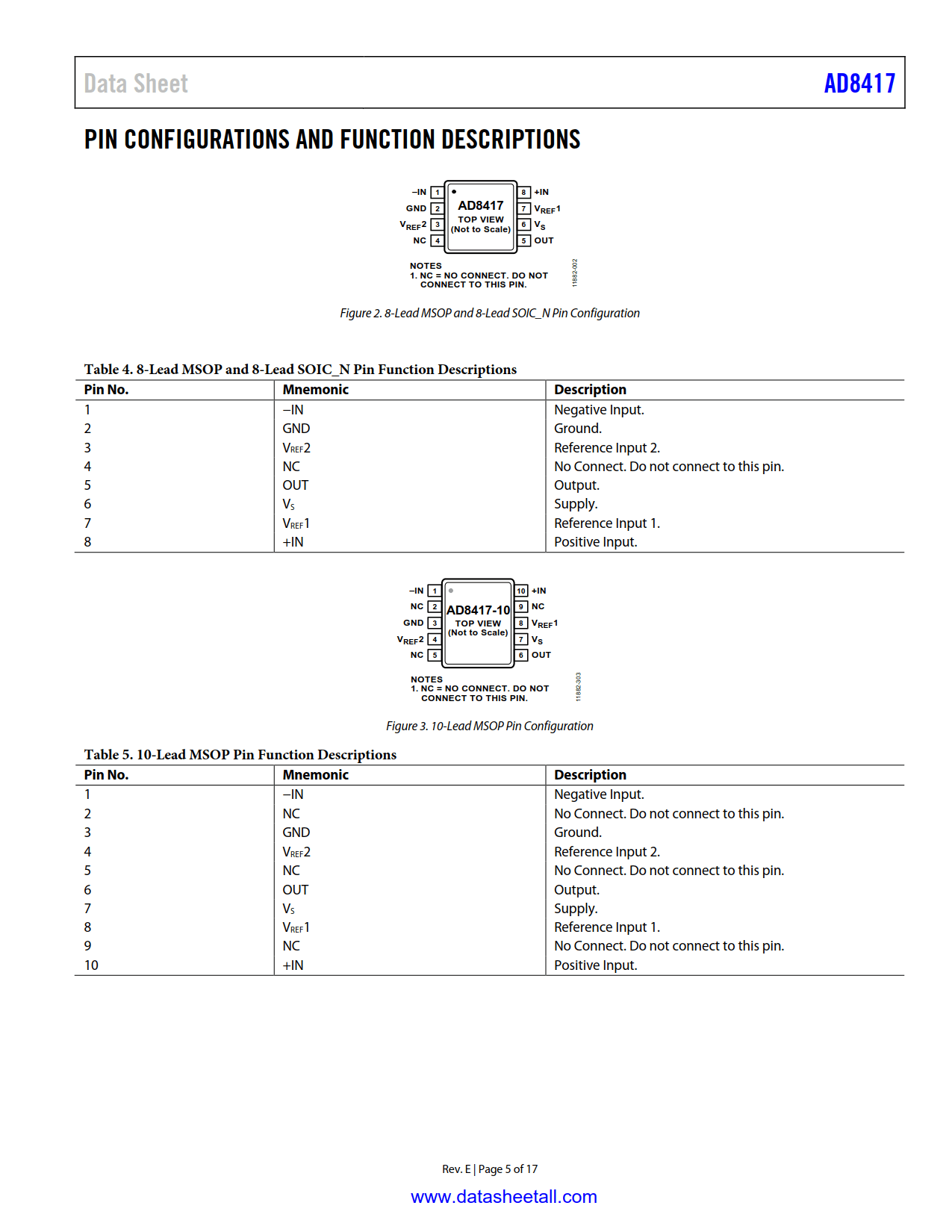

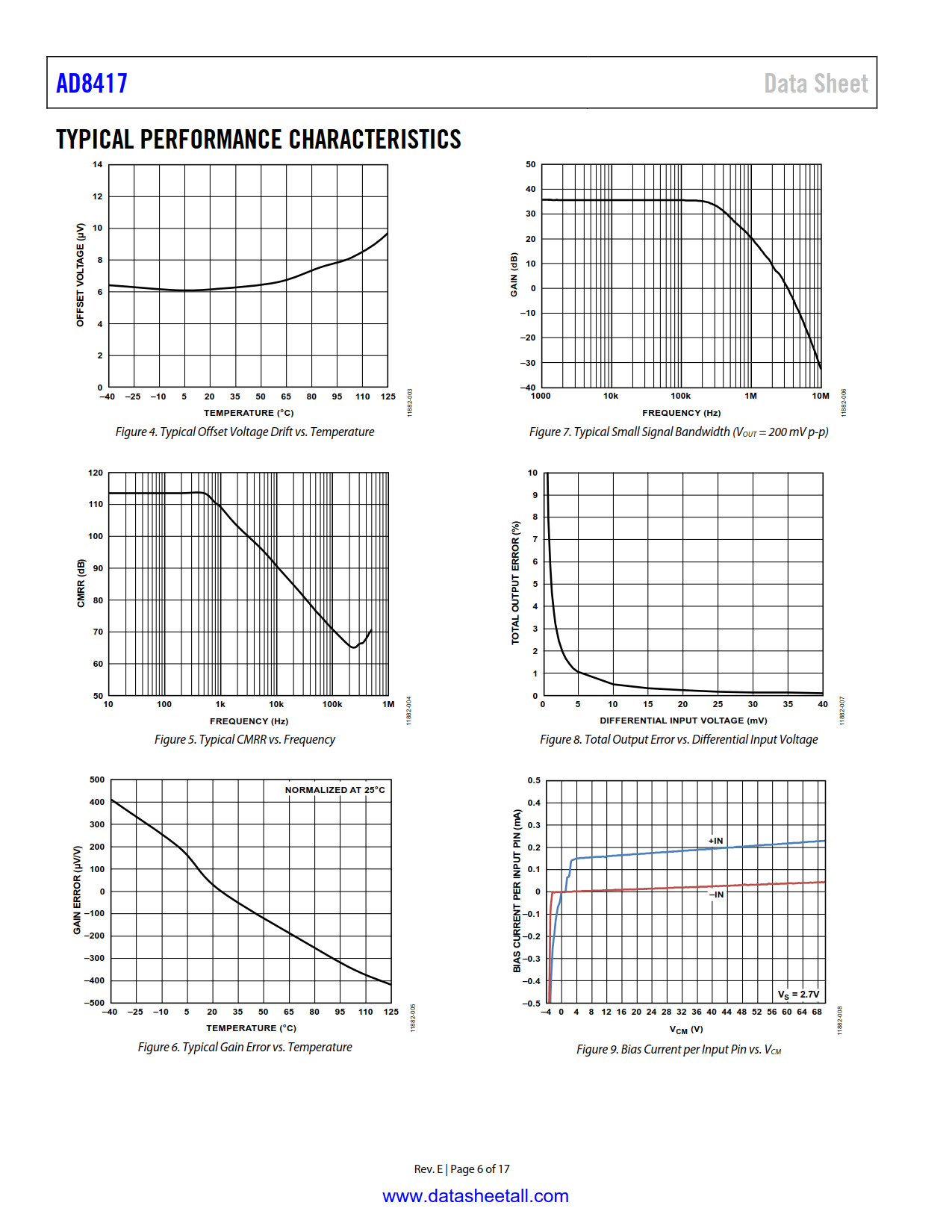

The AD8417 offers breakthrough performance throughout the −40°C to +150°C temperature range. It features a zero drift core, which leads to a typical offset drift of 0.1 µV/°C throughout the operating temperature range and the common-mode voltage range. The AD8417 is qualified for automotive applications. The device includes EMI filters and patented circuitry to enable output accuracy with pulse-width modulation (PWM) type input common-mode voltages. The typical input offset voltage is ±200 µV. The AD8417 is offered in 8-lead MSOP and SOIC packages.
