AD8351S Datasheet

AD8351S Datasheet

Aerospace Low Distortion Fully Differential RF/IF Amplifier
Part No.: AD8351S
Page: 19 Pages
Size: 453 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 2
Update Time: 2023-10-17 15:37:43
DataSheet: Download

AD8351S Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
5962L0821802V2A Tube 54     20 -55°C ~ 125°C LCC:CER LEADLESS CHIP CARR
5962R0821801V2A Tube 54     20 -55°C ~ 125°C 20 ld LCC
AD8351ARC-EMX Tube 1     20   LCC:CER LEADLESS CHIP CARR
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

AD8351S Datasheet(PDF)

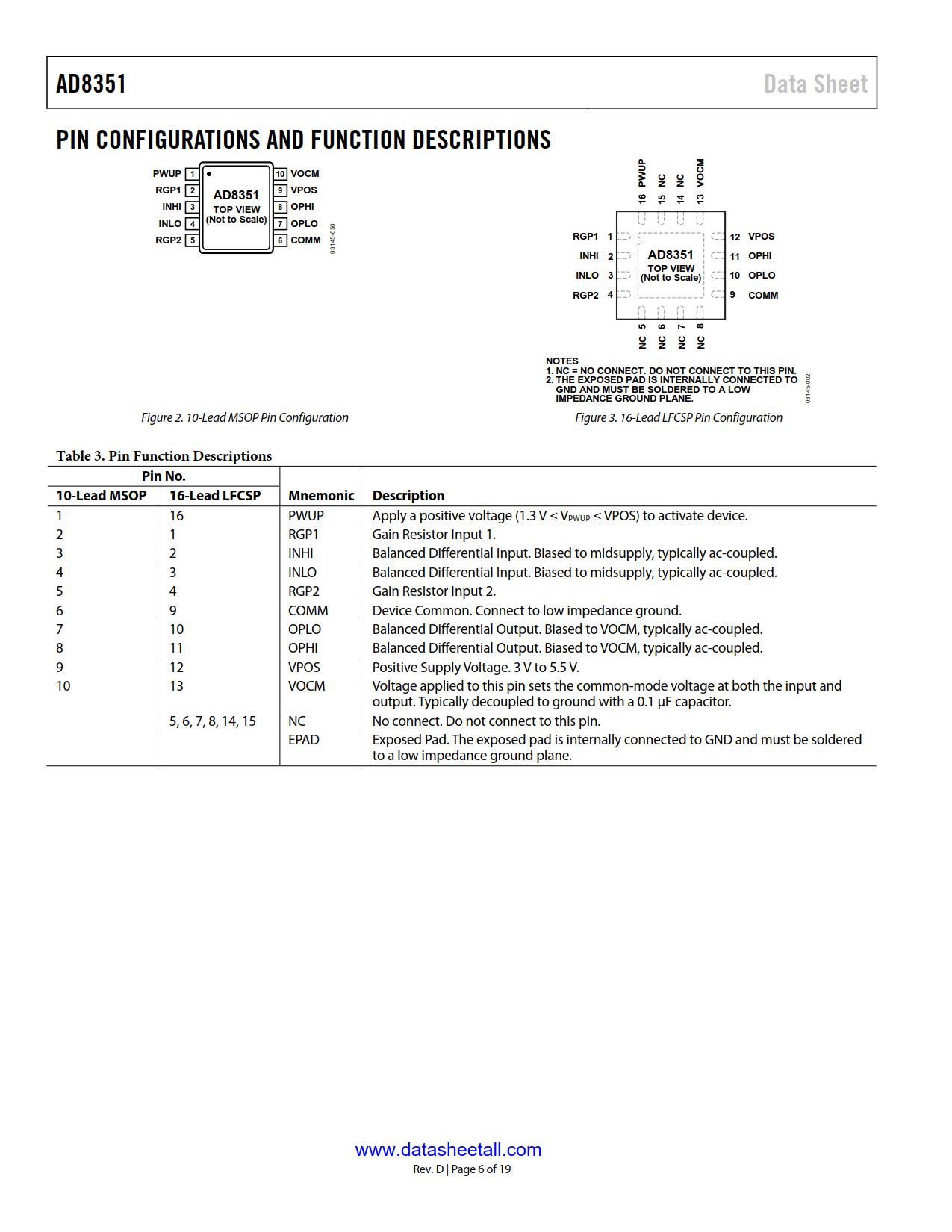

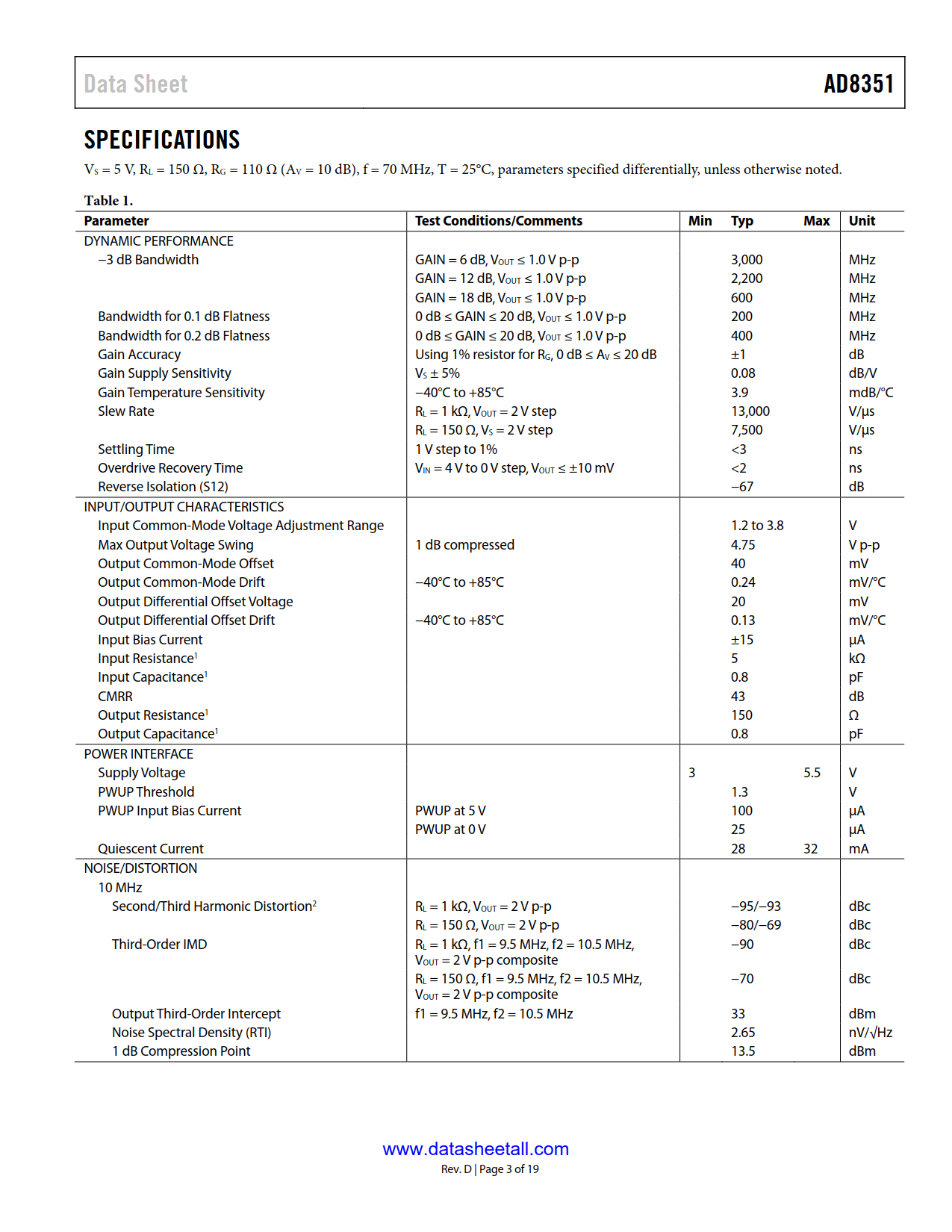

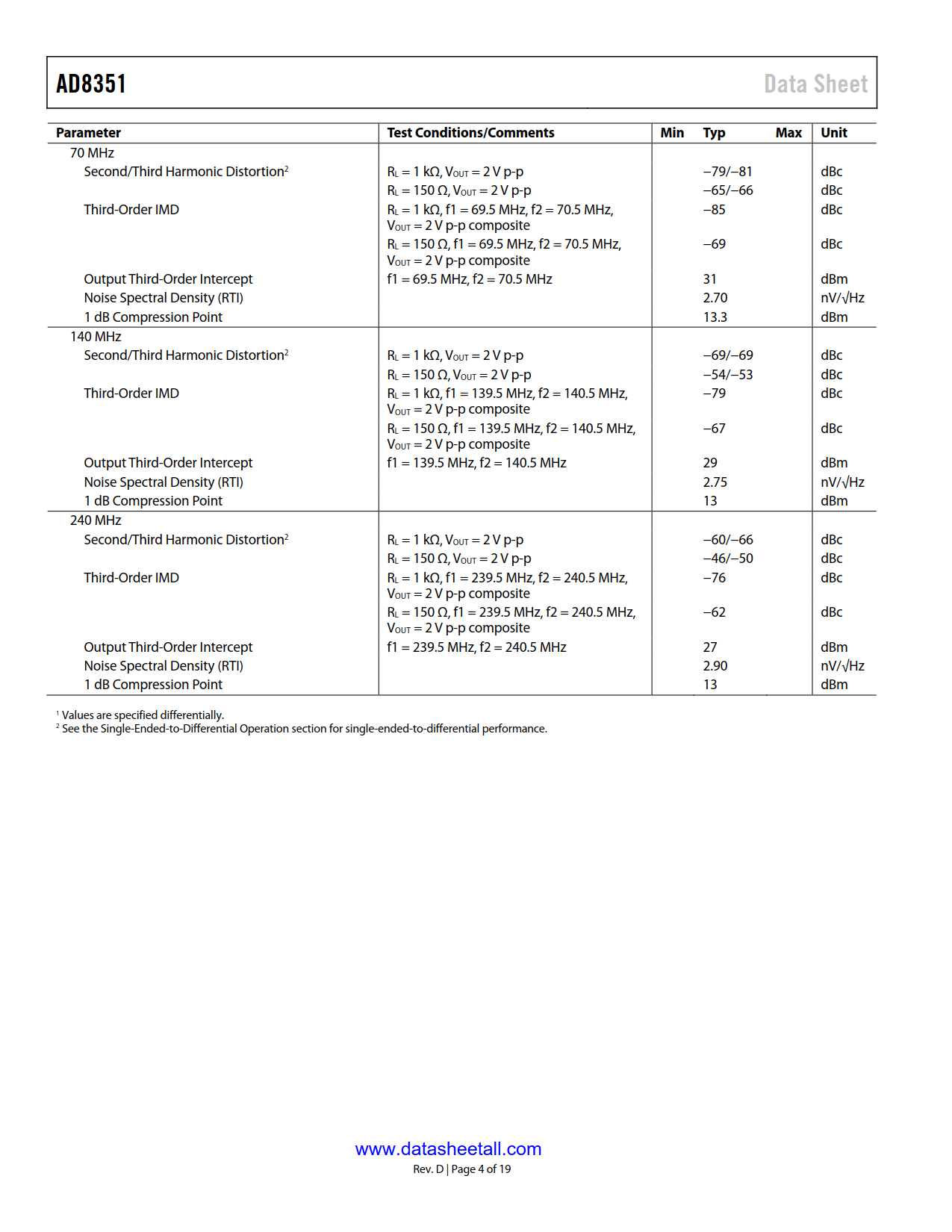

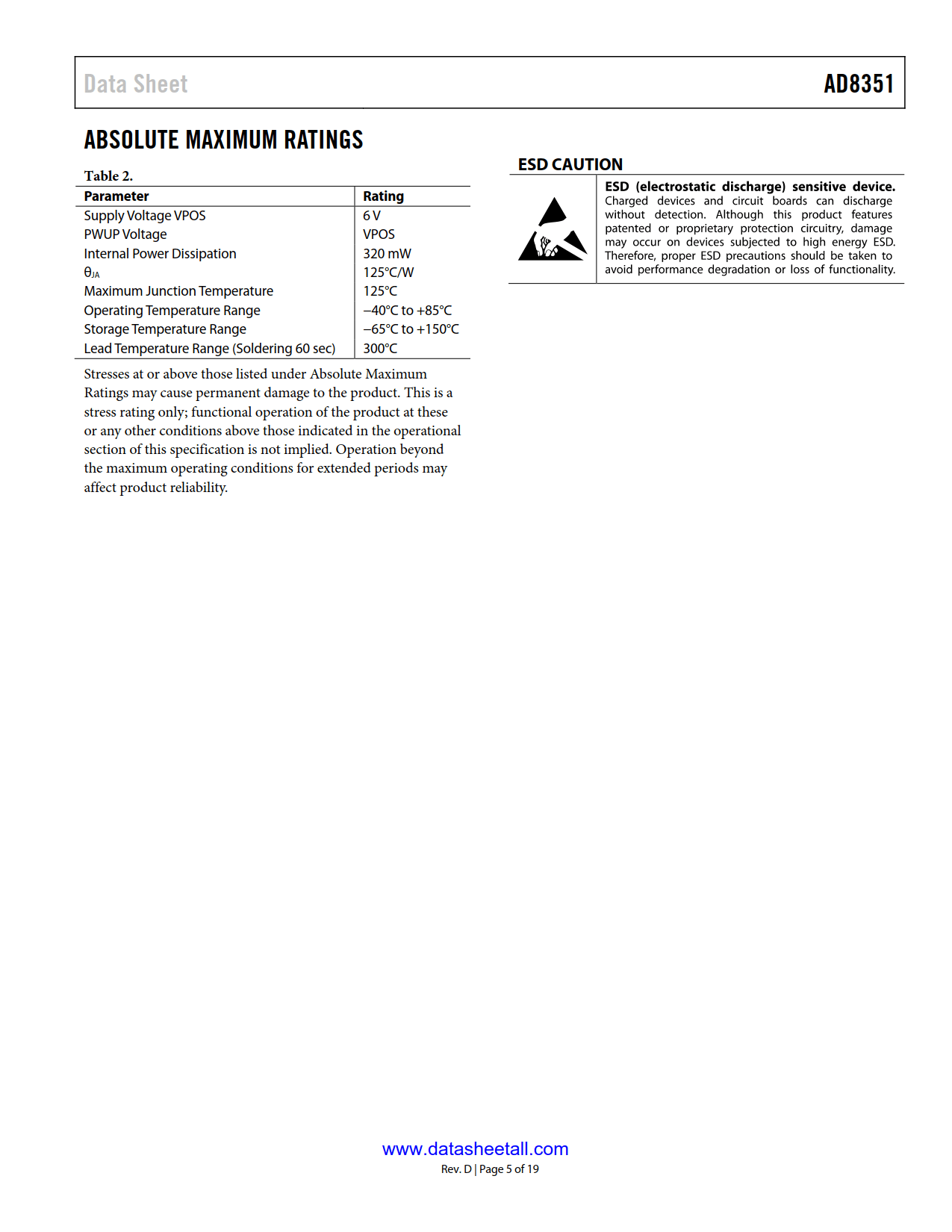

AD8351S Datasheet(Picture)

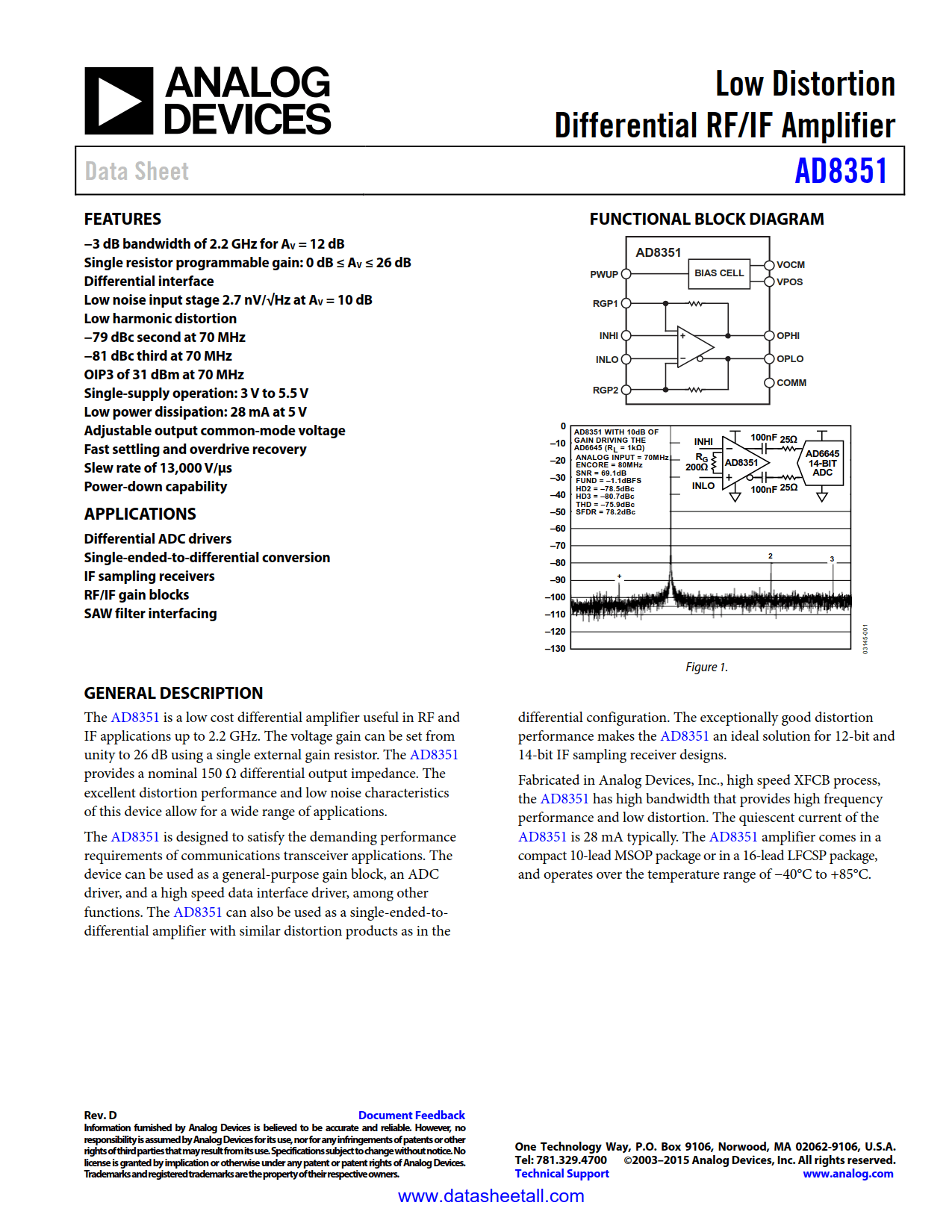

AD8351S Features

  • Wide bandwidth 450 MHz (–3 dB bandwidth @ gain 6 dB)
  • Single external resistor sets gain (0 dB to 26 dB)
  • Adjustable output common mode voltage
  • Fast settling and overdrive recovery
  • Low distortion high linearity differential amplifier
  • Optimized for driving high speed/resolution analog to digital converters
  • Ideal for differential and single ended to differential applications

AD8351S Description

The AD8351S is fully differential amplifier, designed to drive high resolution (10-14 bits)/high speed ADCs (240 MSPS) at IF frequencies within communications receivers.

The AD8351S simplifies ADC driving allowing the user to adjust the gain (up to 26 dB) through one external resistor and incorporates output common mode adjustment circuit to ease the drive levels into the ADC.

The AD8351S is a very low distortion gain stage, along with low noise and wide gain bandwidth, making the part ideally suited to be used in digital communications IF receivers.

The AD8351S product data sheet provides detailed circuits on the driving 12-/14-bit resolution ADCs and using the device for single ended to differential signal conversion.

The AD8351S is fabricated on an advanced silicon bipolar process, operating on a single 3 or 5 volt supply, and fully specified over the –55ºC to +125ºC temperature range.
