Wide Supply Range, Rail-to-Rail Output Instrumentation Amplifier
Part No.: AD8226
Page: 28 Pages
Size: 1497 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 1
Update Time: 2023-09-26 14:37:52
DataSheet: Download

AD8226 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
AD8226ARMZ Tube 50   3 8 -40°C ~ 125°C 8-Lead MSOP
AD8226ARMZ-RL Reel 3000   3 8 -40°C ~ 125°C 8-Lead MSOP, 13" Tape and Reel
AD8226ARMZ-R7 Reel 1000   3 8 -40°C ~ 125°C 8-Lead MSOP, 7" Tape and Reel
AD8226ARZ Tube 98   3 8 -40°C ~ 125°C 8-Lead SOIC_N
AD8226ARZ-RL Reel 2500   3 8 -40°C ~ 125°C 8-Lead SOIC_N, 13" Tape and Reel
AD8226ARZ-R7 Reel 1000   3 8 -40°C ~ 125°C 8-Lead SOIC_N, 7" Tape and Reel
AD8226BRMZ Tube 50   3 8 -40°C ~ 125°C 8-Lead MSOP
AD8226BRMZ-RL Reel 3000   3 8 -40°C ~ 125°C 8-Lead MSOP, 13" Tape and Reel
AD8226BRMZ-R7 Reel 1000   3 8 -40°C ~ 125°C 8-Lead MSOP, 7" Tape and Reel
AD8226BRZ Tube 98   3 8 -40°C ~ 125°C 8-Lead SOIC_N
AD8226BRZ-RL       3 8 -40°C ~ 125°C 8-Lead SOIC_N, 13" Tape and Reel
AD8226BRZ-R7 Reel 1000   3 8 -40°C ~ 125°C 8-Lead SOIC_N, 7" Tape and Reel
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

AD8226 Datasheet(PDF)

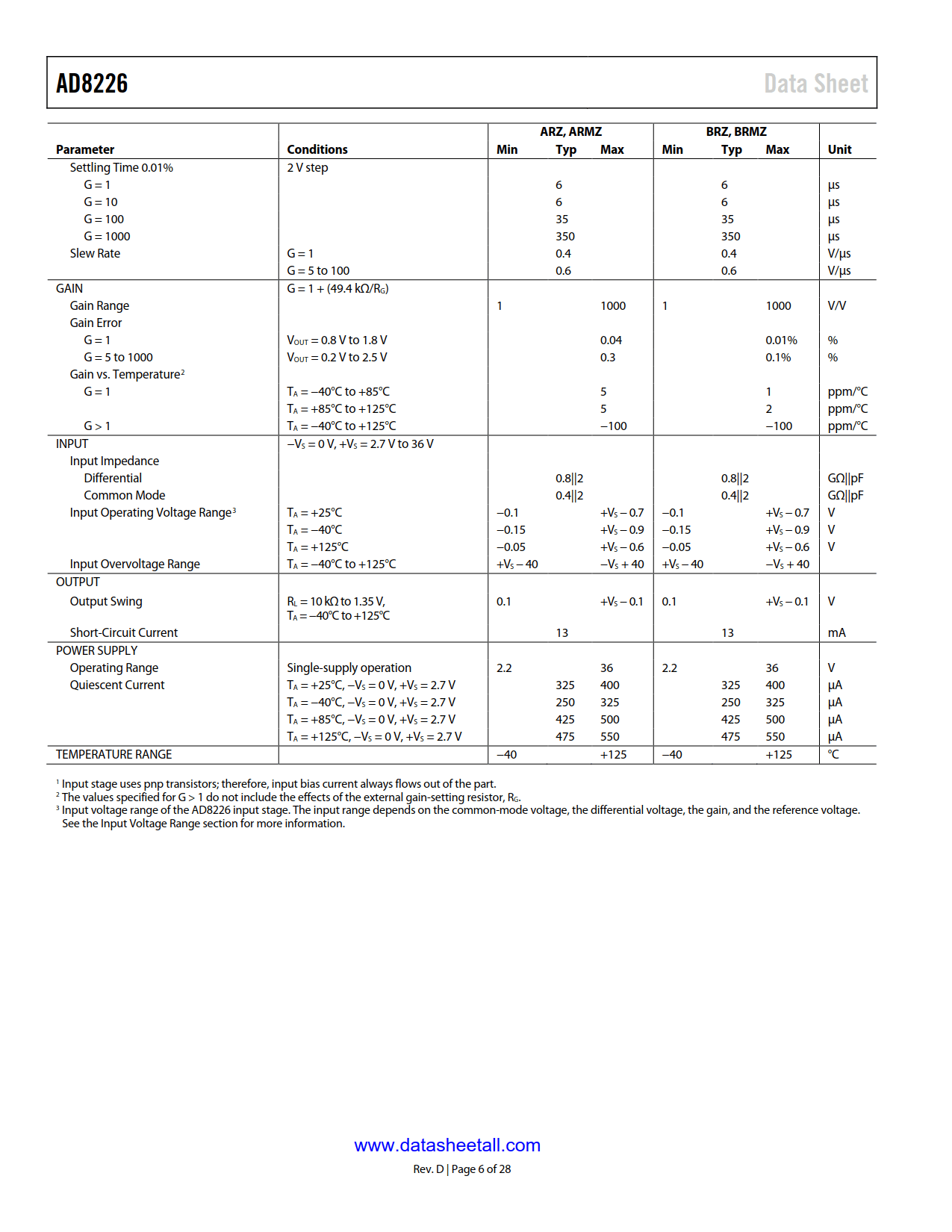

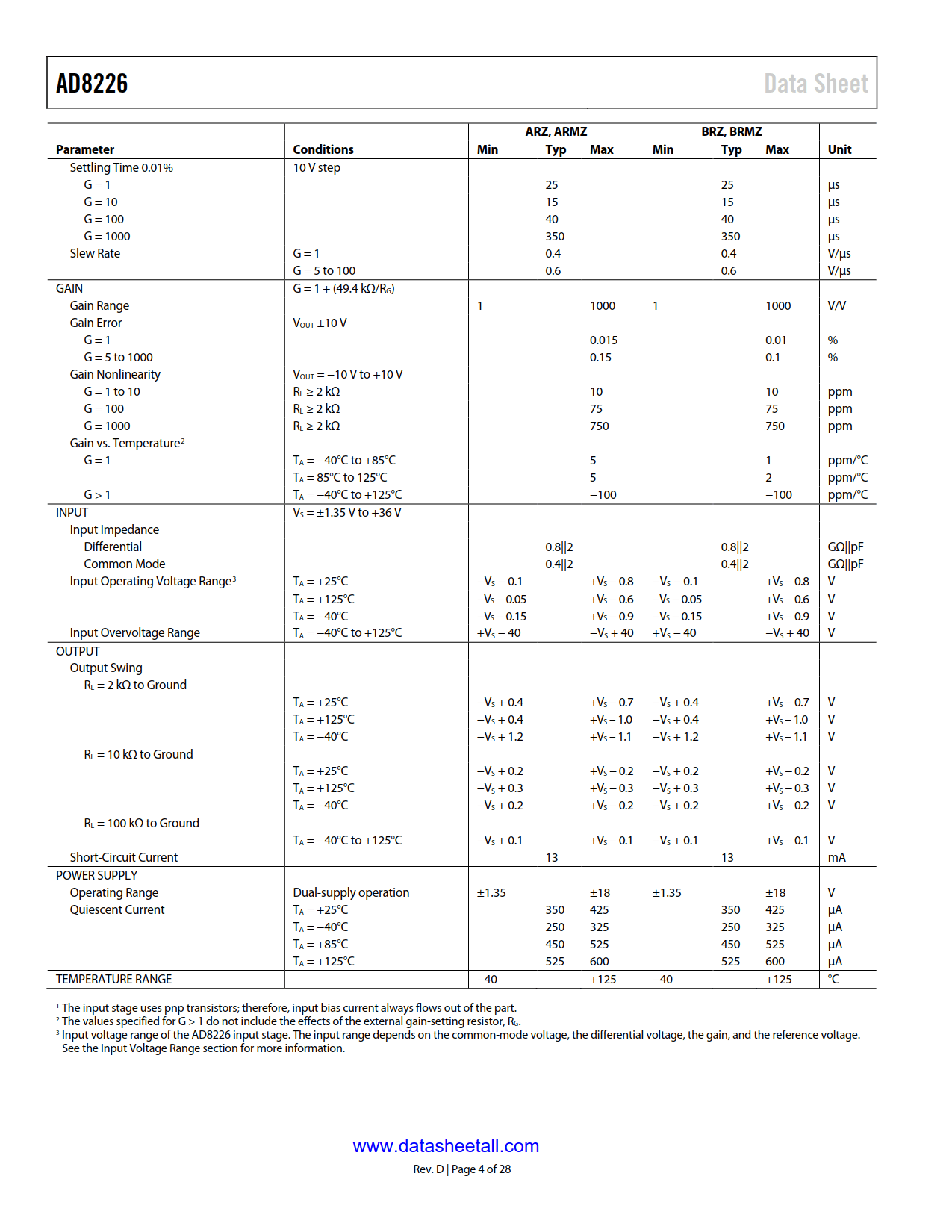

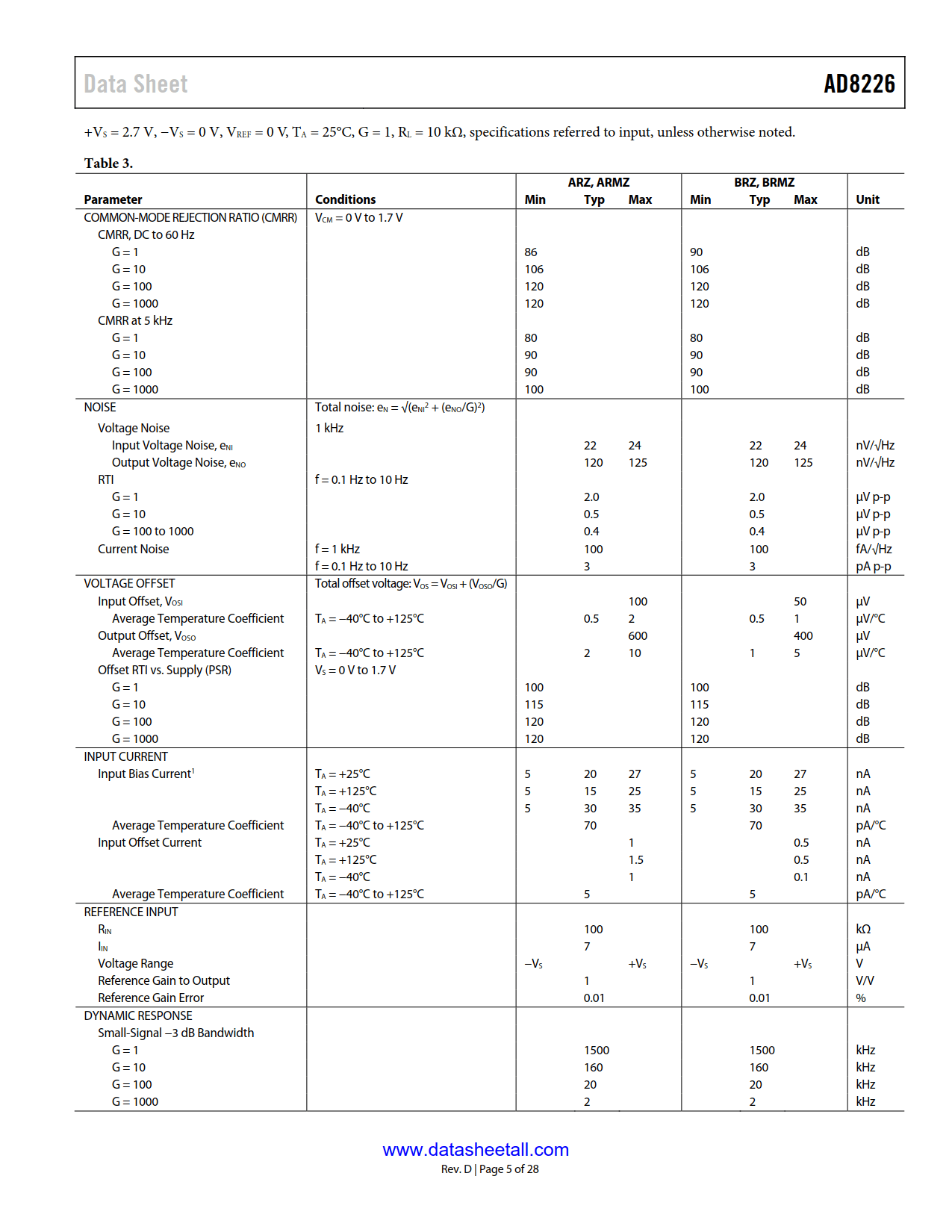

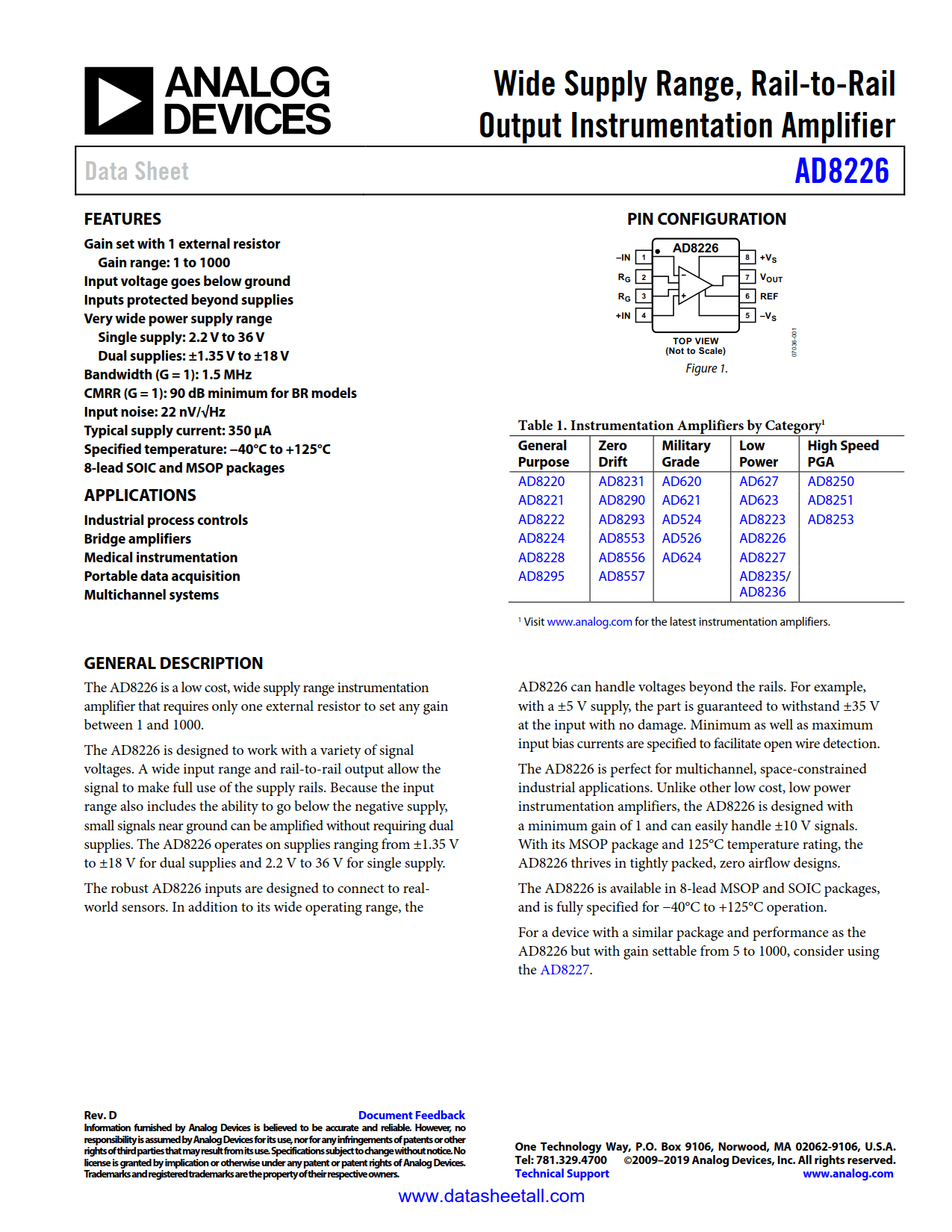

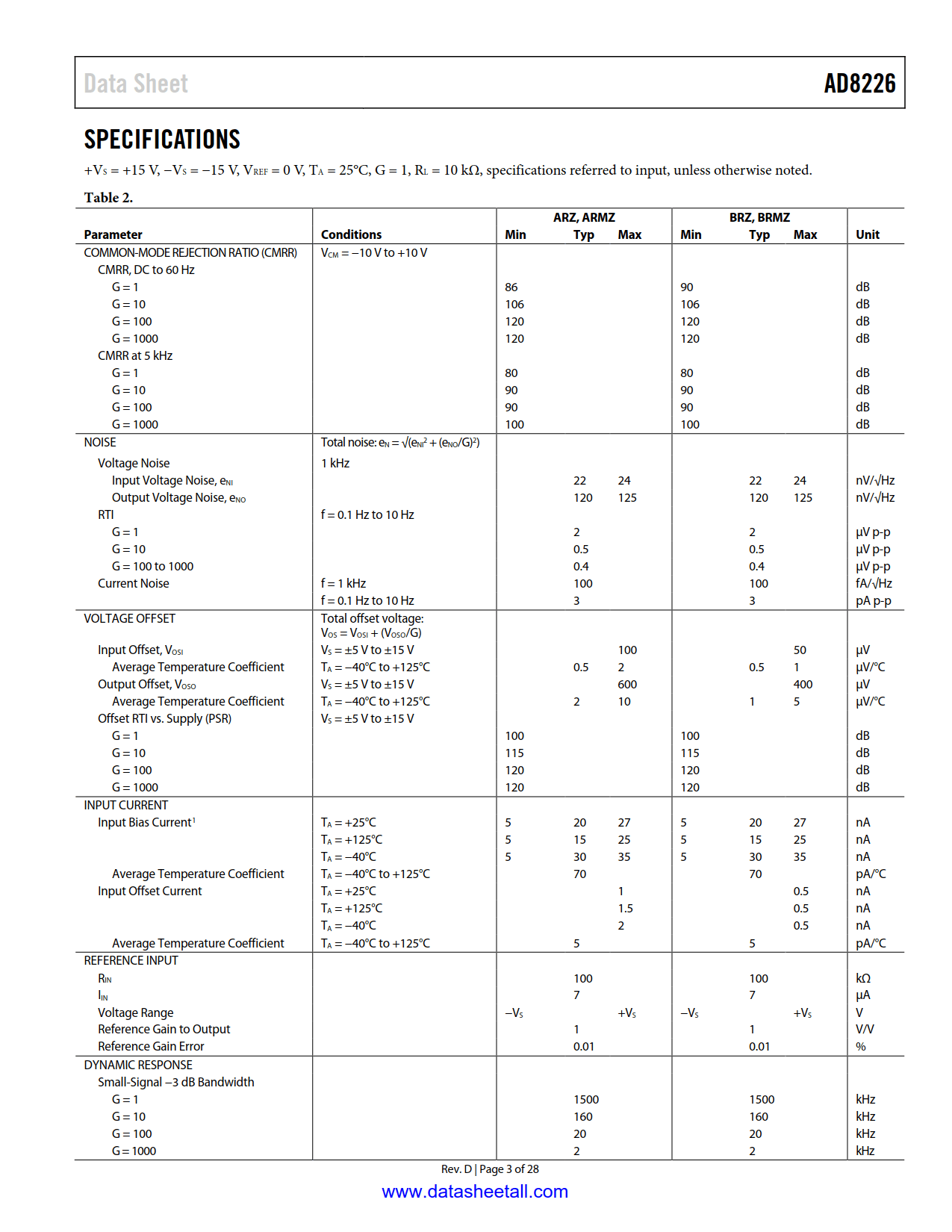

AD8226 Datasheet(Picture)

AD8226 Features

  • Gain set with 1 external resistor
    • Gain range: 1 to 1000
  • Input voltage goes below ground
  • Inputs protected beyond supplies
  • Very wide power supply range
    • Single supply: 2.2 V to 36 V
    • Dual supplies: ±1.35 V to ±18 V
  • Bandwidth (G = 1): 1.5 MHz
  • CMRR (G = 1): 90 dB minimum for BR models
  • Input noise: 22 nV/√Hz
  • Typical supply current: 350 μA
  • Specified temperature: −40°C to +125°C
  • 8-lead SOIC and MSOP packages

AD8226 Applications

  • Industrial process controls
  • Bridge amplifiers
  • Medical instrumentation
  • Portable data acquisition
  • Multichannel systems

AD8226 Description

The AD8226 is a low cost, wide supply range instrumentation amplifier that requires only one external resistor to set any gain between 1 and 1000.

The AD8226 is designed to work with a variety of signal voltages. A wide input range and rail-to-rail output allow the signal to make full use of the supply rails. Because the input range also includes the ability to go below the negative supply, small signals near ground can be amplified without requiring dual supplies. The AD8226 operates on supplies ranging from ±1.35 V to ±18 V for dual supplies and 2.2 V to 36 V for single supply.

The robust AD8226 inputs are designed to connect to real-world sensors. In addition to its wide operating range, the AD8226 can handle voltages beyond the rails. For example, with a ±5 V supply, the part is guaranteed to withstand ±35 V at the input with no damage. Minimum as well as maximum input bias currents are specified to facilitate open wire detection.

The AD8226 is perfect for multichannel, space-constrained industrial applications. Unlike other low cost, low power instrumentation amplifiers, the AD8226 is designed with a minimum gain of 1 and can easily handle ±10 V signals. With its MSOP package and 125°C temperature rating, the AD8226 thrives in tightly packed, zero airflow designs.

The AD8226 is available in 8-lead MSOP and SOIC packages, and is fully specified for −40°C to +125°C operation.

For a device with a similar package and performance as the AD8226 but with gain settable from 5 to 1000, consider using the AD8227.
