Part No.: | AD8054 |
Page: | 24 Pages |
Size: | 701 KB |
Manufacturer: | Analog Devices, Inc. |
Logo: | |
Views: | 1 |
Update Time: | 2024-01-04 14:53:19 |
DataSheet: | Download |
Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
AD8054ARZ | Tube | 56 | 1 | 14 | -40°C ~ 125°C | 14-Lead SOIC_N | ||
AD8054ARZ-REEL | Reel | 2500 | 1 | 14 | -40°C ~ 125°C | 14-Lead SOIC_N, 13" Tape and Reel | ||
AD8054ARZ-REEL7 | Reel | 750 | 1 | 14 | -40°C ~ 125°C | 14-Lead SOIC_N, 7" Tape and Reel | ||
AD8054ARUZ | Tube | 96 | 1 | 14 | -40°C ~ 125°C | 14-Lead TSSOP | ||
AD8054ARUZ-REEL | Reel | 2500 | 1 | 14 | -40°C ~ 125°C | 14-Lead TSSOP, 13" Tape and Reel | ||
AD8054ARUZ-REEL7 | Reel | 1000 | 1 | 14 | -40°C ~ 125°C | 14-Lead TSSOP, 7" Tape and Reel |

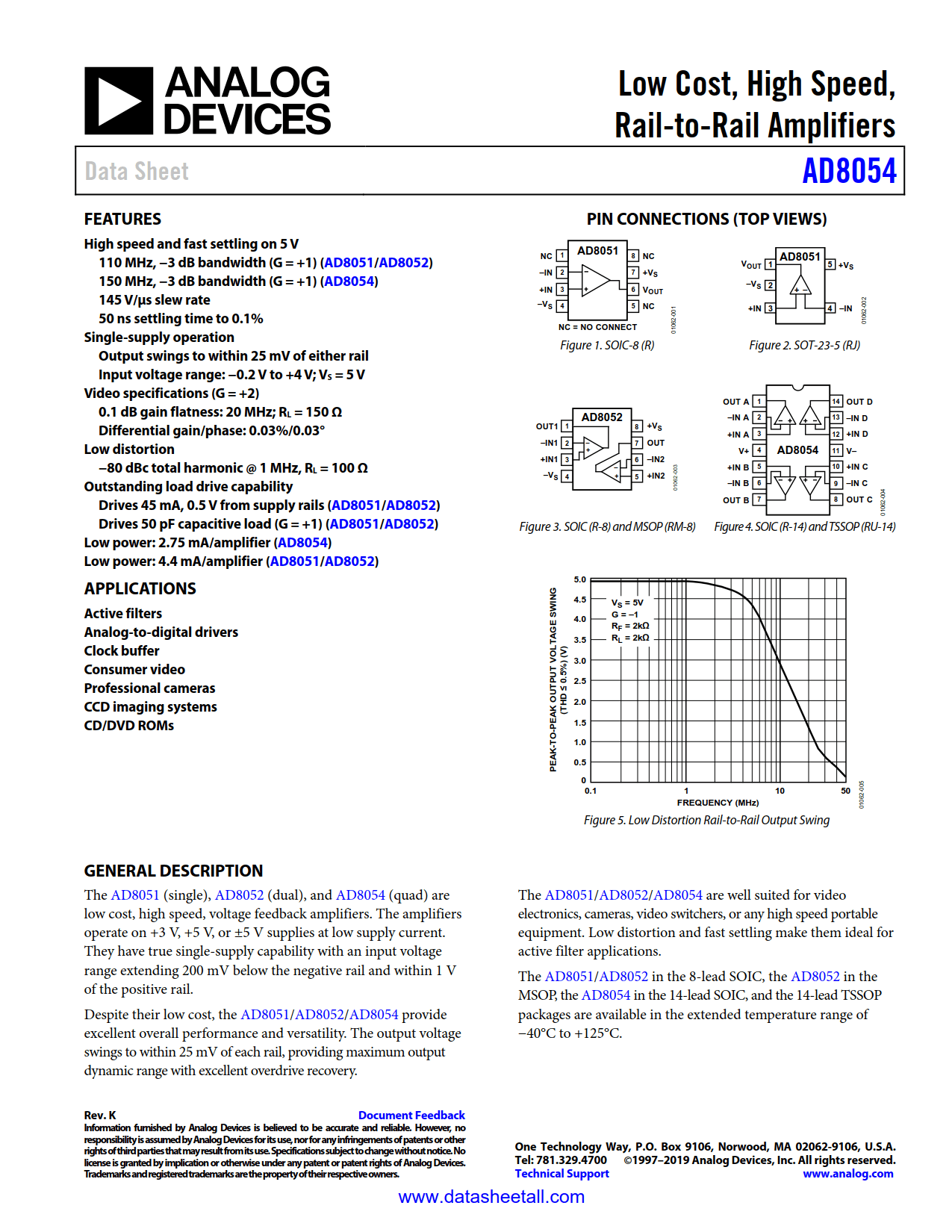

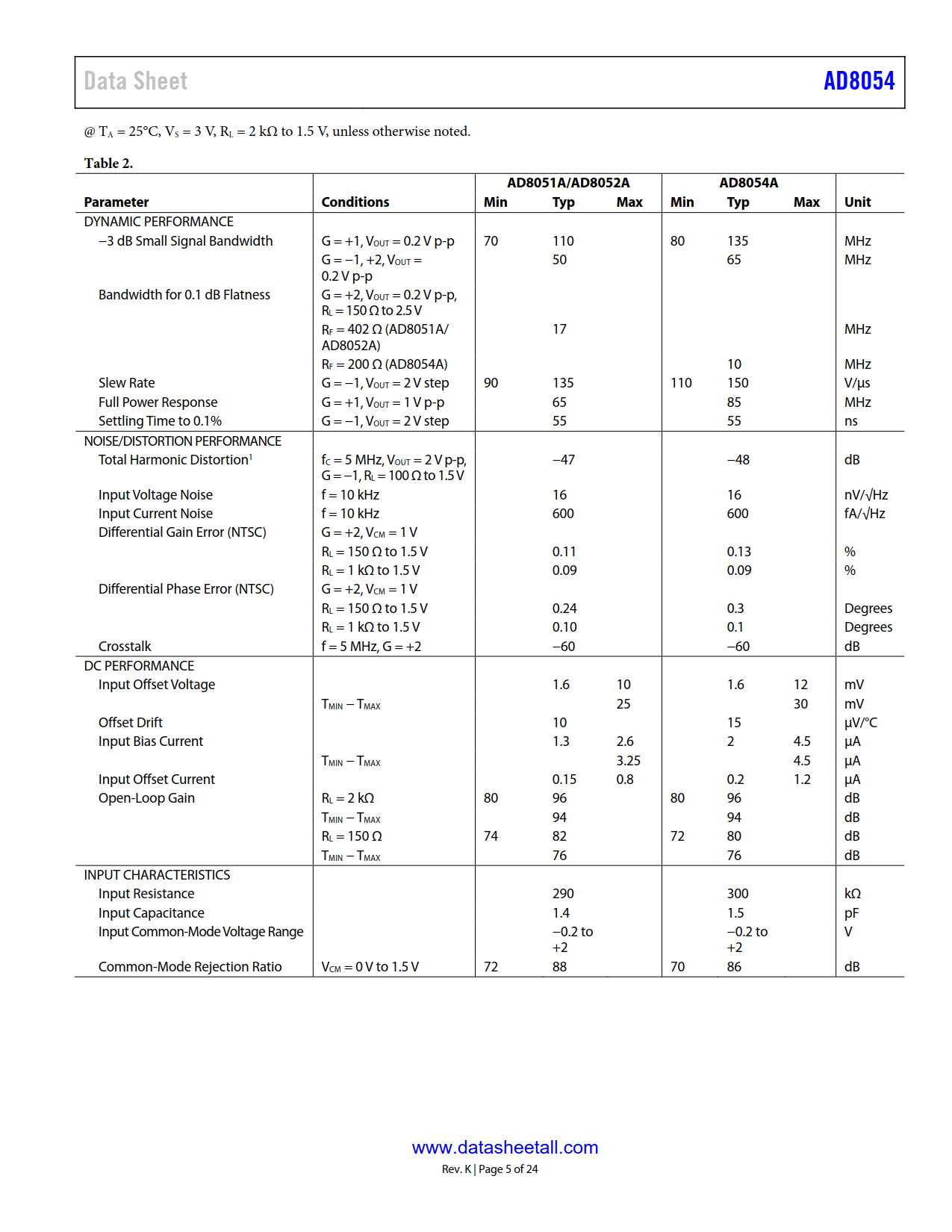

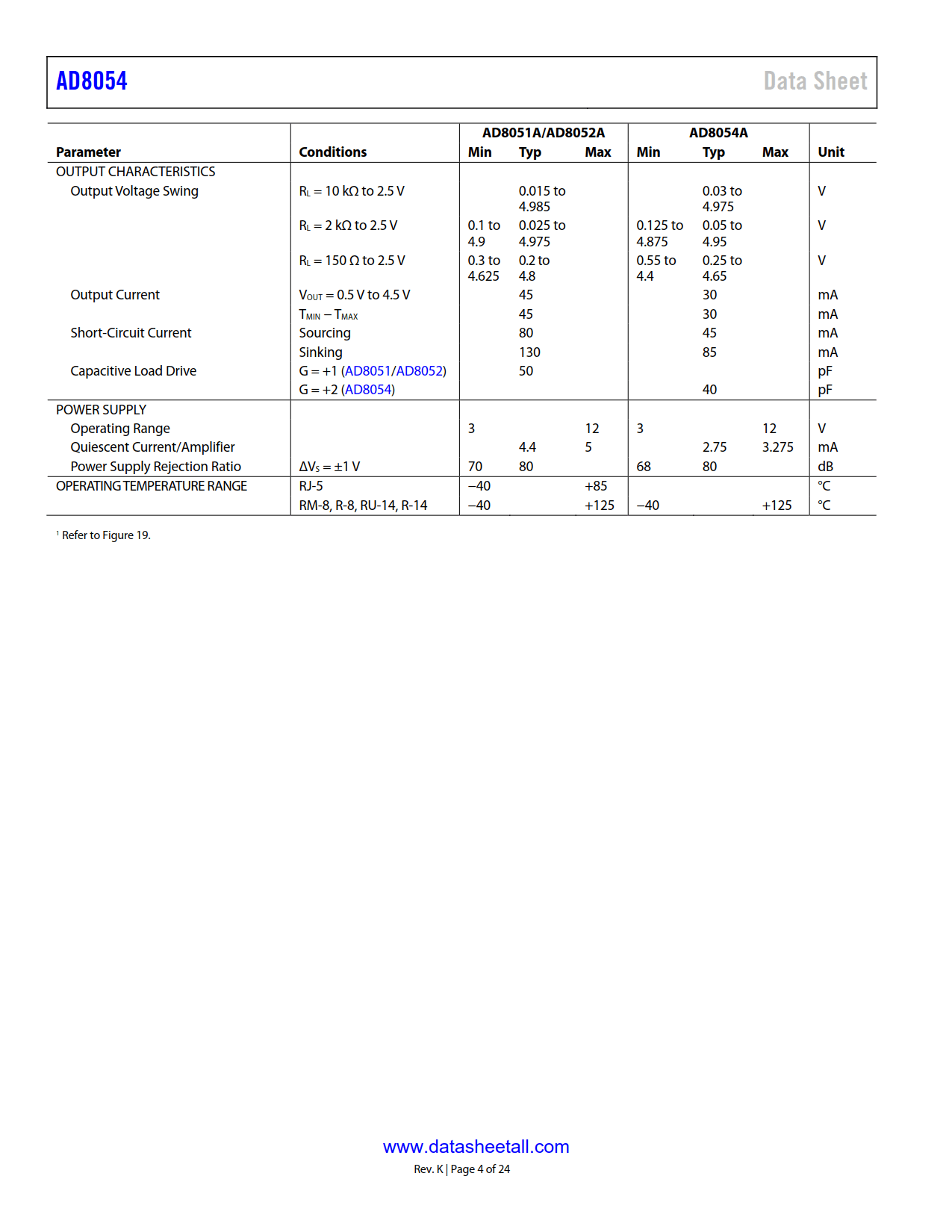

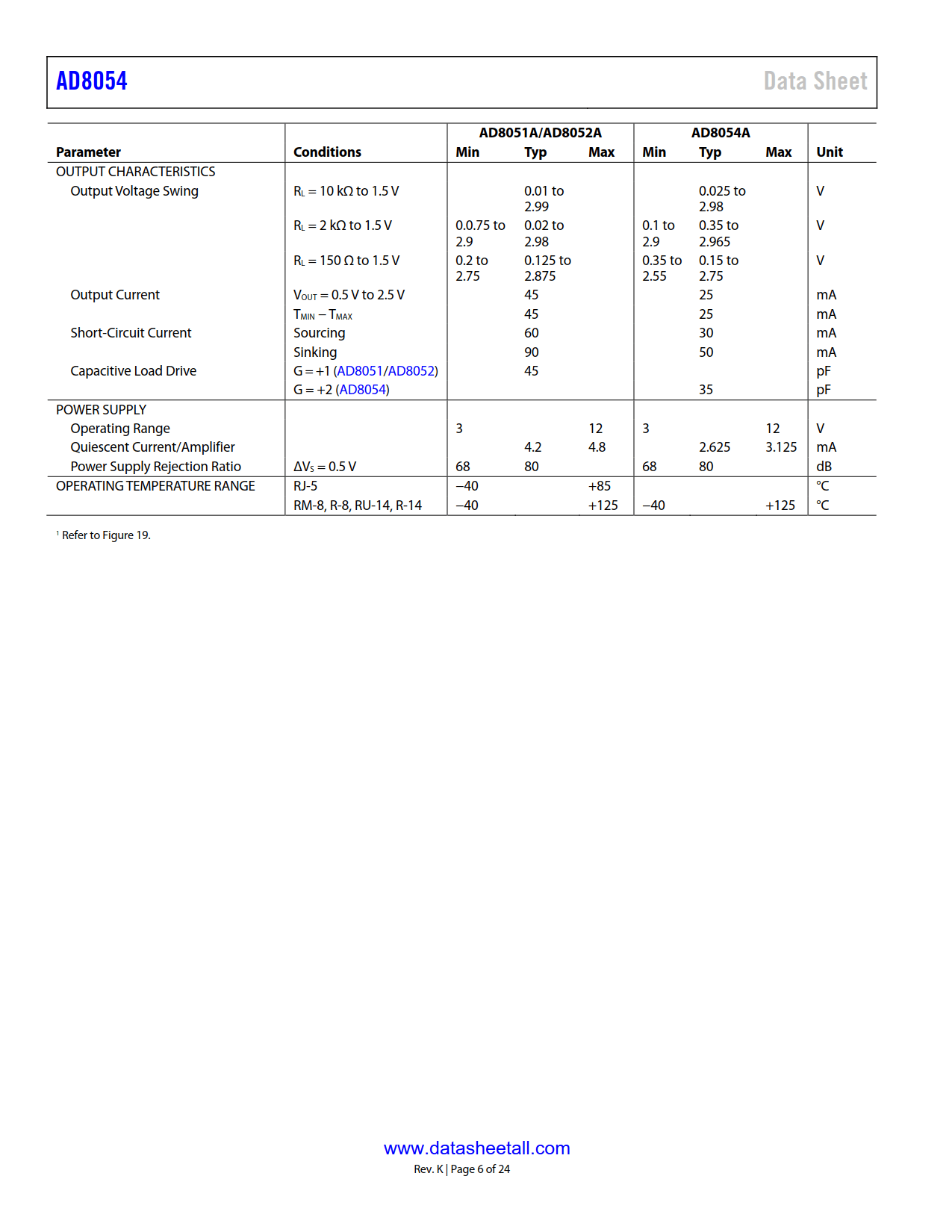

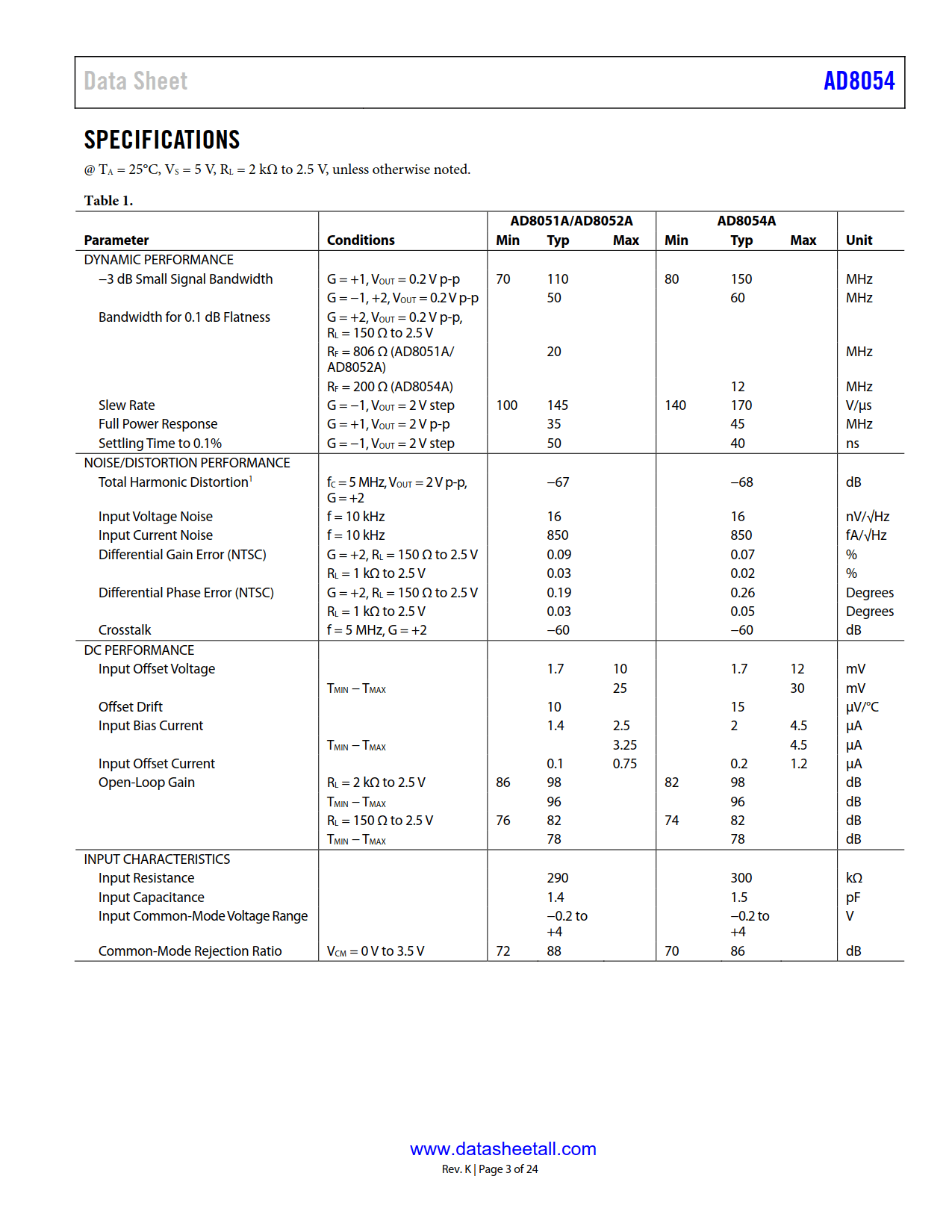

The AD8054 (quad) are low cost, high speed, voltage feedback amplifiers. The amplifiers operate on +3 V, +5 V or ±5 V supplies at low supply current. They have true single-supply capability with an input voltage range extending 200 mV below the negative rail and within 1 V of the positive rail.
Despite their low cost, the AD8054 provide excellent overall performance and versatility. The output voltage swings to within 25 mV of each rail, providing the maximum output dynamic range with excellent overdrive recovery.
The AD8054 are well suited for video electronics, cameras, video switchers, or any high speed portable equipment. Low distortion and fast settling make them ideal for active filter applications.
The AD8054 in the 14-lead SOIC, and the 14-lead TSSOP packages are available in the extended temperature range of −40°C to +125°C.
