| Part No.： | AD8045 |
| Page： | 24 Pages |
| Size： | 1039 KB |
| Manufacturer： | Analog Devices, Inc. |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2025-02-14 14:51:26 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| AD8045ARDZ | Tube | 98 | 8045ARDZ | 3 | 8 | -40°C ~ 125°C | 8-Lead SOIC_N_EP | |
| AD8045ARDZ-REEL7 | Reel | 1000 | 8045ARDZ | 3 | 8 | -40°C ~ 125°C | 8-Lead SOIC_N_EP | |
| AD8045ACPZ-R2 | Reel | 250 | H8B | 3 | 8 | -40°C ~ 125°C | 8-Lead LFCSP | |
| AD8045ACPZ-REEL7 | Reel | 1500 | H8B | 3 | 8 | -40°C ~ 125°C | 8-Lead LFCSP |

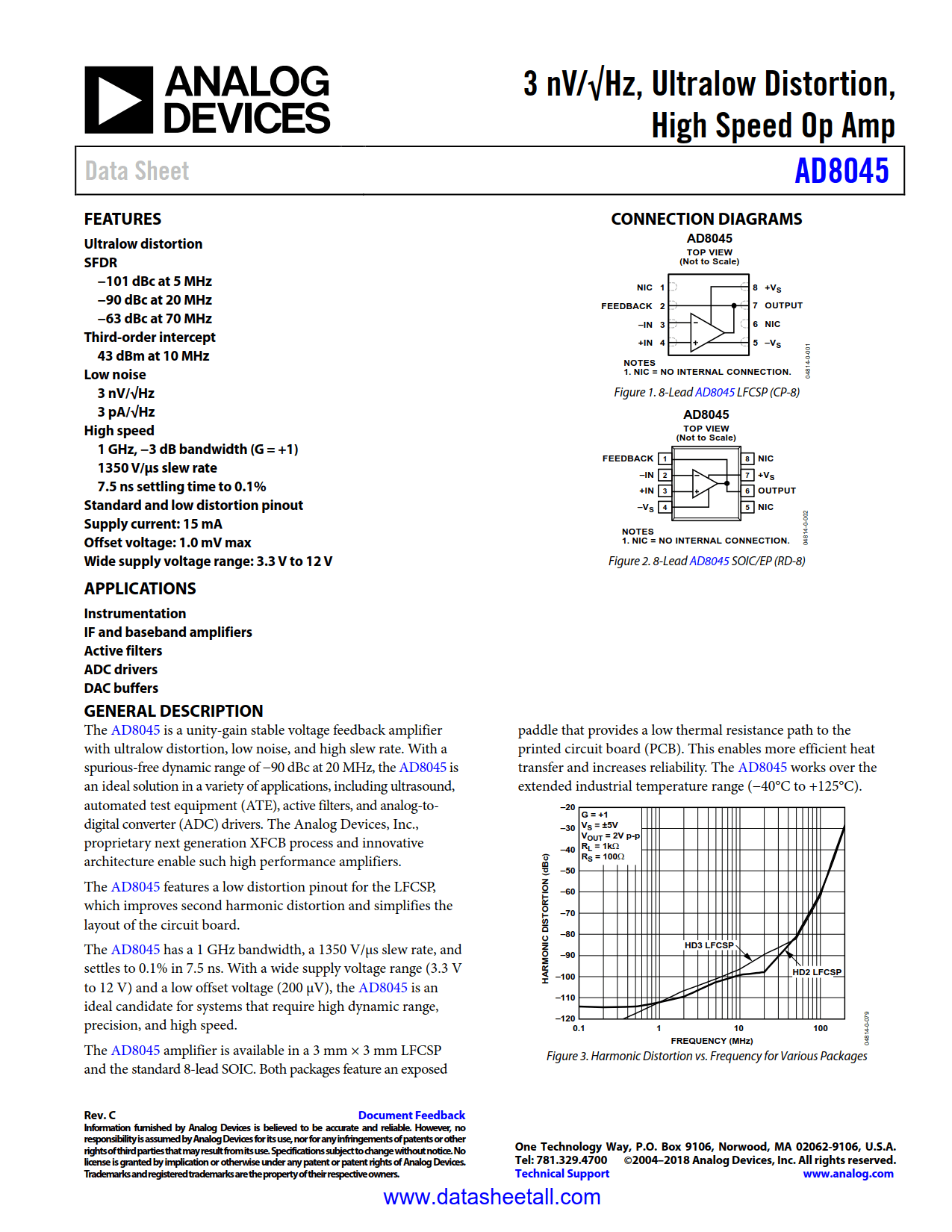

The AD8045 is a unity-gain stable voltage feedback amplifier with ultralow distortion, low noise, and high slew rate. With a spurious-free dynamic range of −90 dBc at 20 MHz, the AD8045 is an ideal solution in a variety of applications, including ultrasound, automated test equipment (ATE), active filters, and analog-todigital converter (ADC) drivers. The Analog Devices, Inc., proprietary next generation XFCB process and innovative architecture enable such high performance amplifiers.
The AD8045 features a low distortion pinout for the LFCSP, which improves second harmonic distortion and simplifies the layout of the circuit board.
The AD8045 has a 1 GHz bandwidth, a 1350 V/µs slew rate, and settles to 0.1% in 7.5 ns. With a wide supply voltage range (3.3 V to 12 V) and a low offset voltage (200 µV), the AD8045 is an ideal candidate for systems that require high dynamic range, precision, and high speed.
The AD8045 amplifier is available in a 3 mm × 3 mm LFCSP and the standard 8-lead SOIC. Both packages feature an exposed paddle that provides a low thermal resistance path to the printed circuit board (PCB). This enables more efficient heat transfer and increases reliability. The AD8045 works over the extended industrial temperature range (−40°C to +125°C).
