| Part No.： | AD8041 |
| Page： | 16 Pages |
| Size： | 237 KB |
| Manufacturer： | Analog Devices, Inc. |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2025-01-01 10:38:33 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| AD8041AN | Tube | 50 | AD8041AN | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP | |
| AD8041AR | Tube | 98 | AD8041AR | 1 | 8 | -40°C ~ 85°C | 8-Lead Plastic SOIC | |
| AD8041AR-REEL | Reel | 2500 | AD8041AR | 1 | 8 | -40°C ~ 85°C | 8-Lead SOIC | |
| AD8041AR-REEL7 | Reel | 1000 | AD8041AR | 1 | 8 | -40°C ~ 85°C | 8-Lead SOIC | |
| AD8041ARZ | Tube | 98 | 8041A | 1 | 8 | -40°C ~ 85°C | 8-Lead SOIC | |
| AD8041ARZ-REEL | Reel | 2500 | 8041A | 1 | 8 | -40°C ~ 85°C | 8-Lead SOIC | |
| AD8041ARZ-REEL7 | Reel | 1000 | 8041A | 1 | 8 | -40°C ~ 85°C | 8-Lead SOIC | |
| 5962-9683901MPA | Tube | 48 | 1 | 8 | -55°C ~ 125°C | 8-Lead CERDIP | ||
| AD8041ANZ | Tube | 50 | AD8041A | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP |

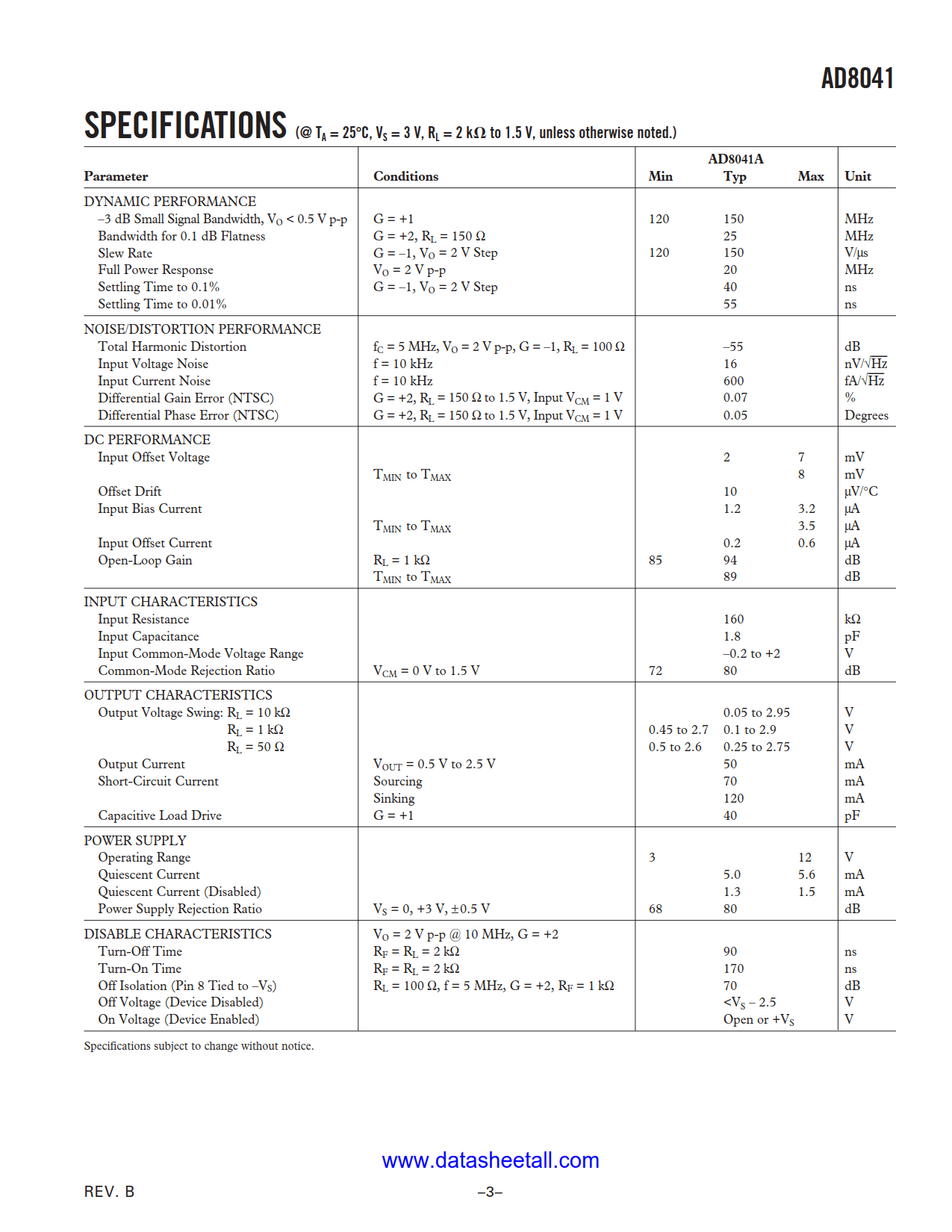

The AD8041 is a low power voltage feedback, high speed amplifier designed to operate on +3 V, +5 V or ± 5 V supplies. It has true single supply capability with an input voltage range extending 200 mV below the negative rail and within 1 V of the positive rail.
The output voltage swing extends to within 50 mV of each rail, providing the maximum output dynamic range. Additionally, it features gain flatness of 0.1 dB to 30 MHz while offering differential gain and phase error of 0.03% and 0.03° on a single 5 V supply. This makes the AD8041 ideal for professional video electronics such as cameras, video switchers or any high speed portable equipment. The AD8041's low distortion and fast settling make it ideal for buffering high speed A-to-D converters.
The AD8041 has a high speed disable feature useful for multiplexing or for reducing power consumption (1.5 mA). The disable logic interface is compatible with CMOS or open-collector logic. The AD8041 offers low power supply current of 5.8 mA maximum and can run on a single 3 V power supply. These features are ideally suited for portable and battery powered applications where size and power are critical.
The wide bandwidth of 160 MHz along with 160 V/µs of slew rate on a single 5 V supply make the AD8041 useful in many general purpose high speed applications where dual power supplies of up to ±6 V and single supplies from 3 V to 12 V are needed. The AD8041 is available in 8-lead PDIP and SOIC over the industrial temperature range of -40°C to +85°C.
An evaluation board is available for this product and may be ordered using the following product number: AD8041-EB. Schematic and layout for this evaluation board is contained in the product data sheet.
