| Part No.： | AD7789 |
| Page： | 20 Pages |
| Size： | 321 KB |
| Manufacturer： | Analog Devices, Inc. |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2024-01-03 10:39:44 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| AD7789BRM | Tube | 1 | 10 | -40°C ~ 105°C | 10-Lead Mini Small Outline Package [MSOP] | |||
| AD7789BRMZ | Tube | 50 | 1 | 10 | -40°C ~ 105°C | 10-Lead Mini Small Outline Package [MSOP] | ||
| AD7789BRMZ-REEL | Reel | 3000 | 1 | 10 | -40°C ~ 105°C | 10-Lead Mini Small Outline Package [MSOP] |

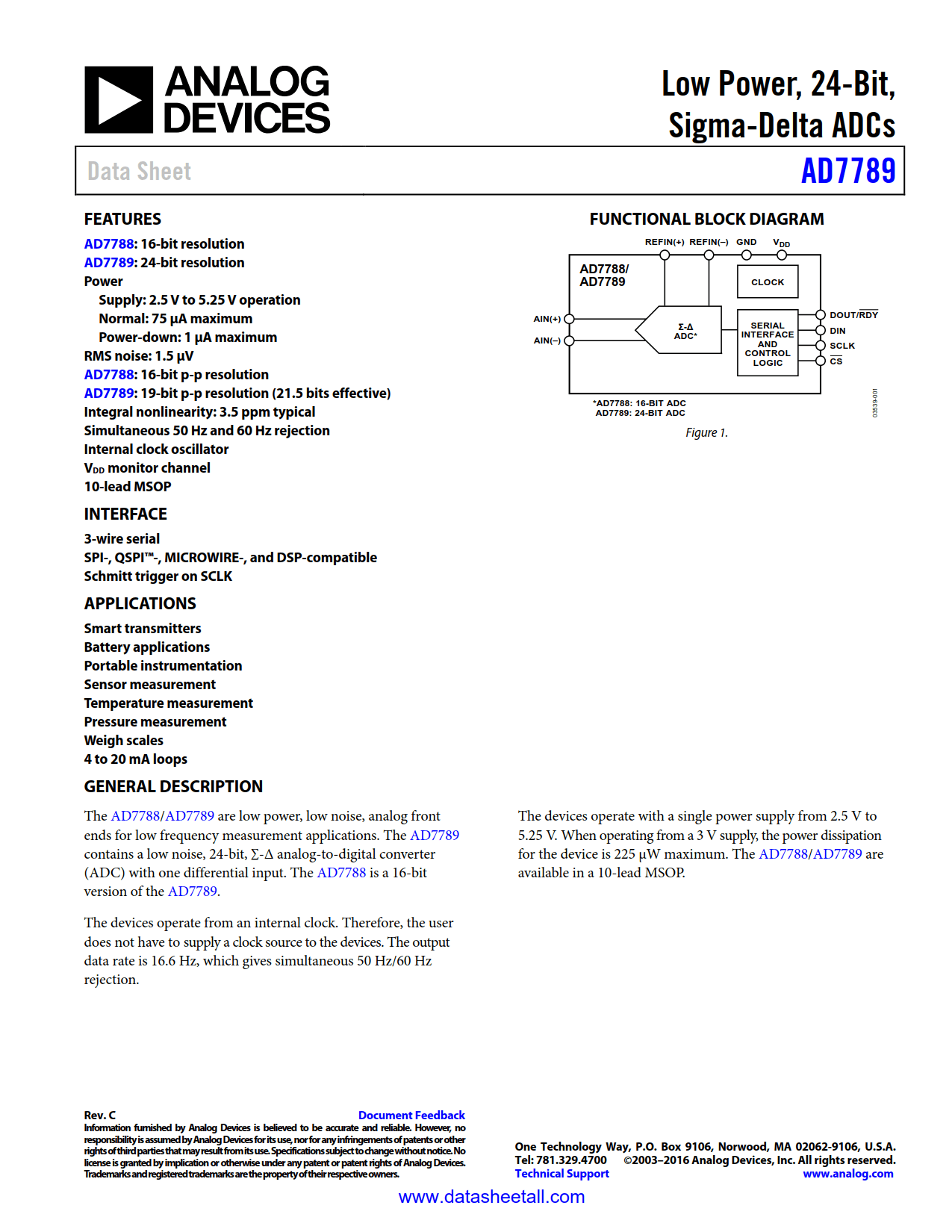

The AD7789 are low power, low noise, analog front ends for low frequency measurement applications. The AD7789 contains a low noise, 24-bit, ∑-∆ analog-to-digital converter (ADC) with one differential input.
The devices operate from an internal clock. Therefore, the user does not have to supply a clock source to the devices. The output data rate is 16.6 Hz, which gives simultaneous 50 Hz/60 Hz rejection.
The devices operate with a single power supply from 2.5 V to 5.25 V. When operating from a 3 V supply, the power dissipation for the device is 225 µW maximum.
The AD7789 are available in a 10-lead MSOP.
