| Part No.： | AD7687 |
| Page： | 26 Pages |
| Size： | 531 KB |
| Manufacturer： | Analog Devices, Inc. |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2025-01-06 17:47:48 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| AD7687BRMZ | Tube | 50 | C3Q | 1 | 10 | -40°C ~ 85°C | 10-Lead MSOP | |
| AD7687BRMZRL7 | Reel | 1000 | C3Q | 1 | 10 | -40°C ~ 85°C | 10-Lead MSOP | |
| AD7687BCPZ-R2 | Reel | 250 | C03 | 1 | 10 | -40°C ~ 85°C | 10-Lead LFCSP_WD | |
| AD7687BCPZRL7 | Reel | 1500 | C03 | 1 | 10 | -40°C ~ 85°C | 10-Lead LFCSP_WD |

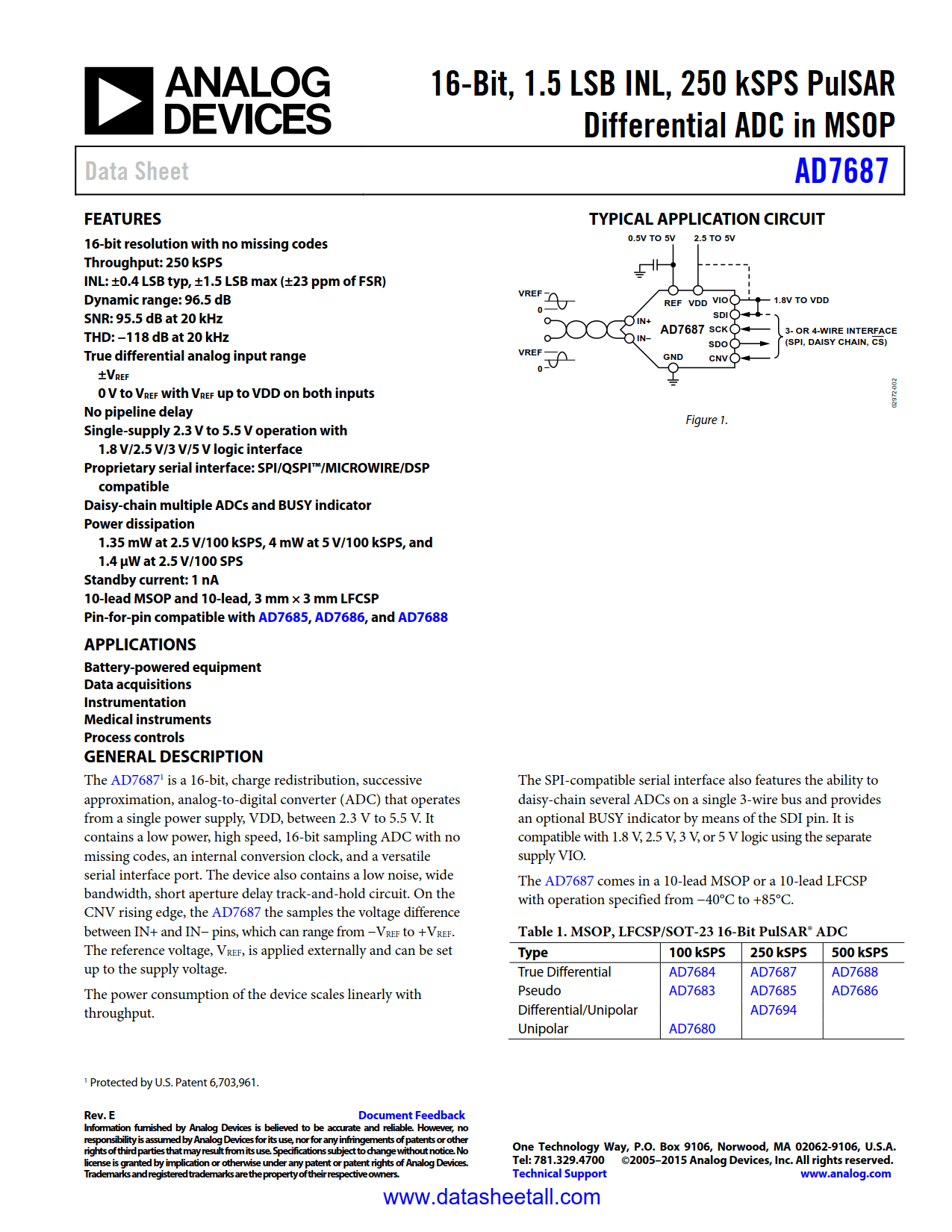

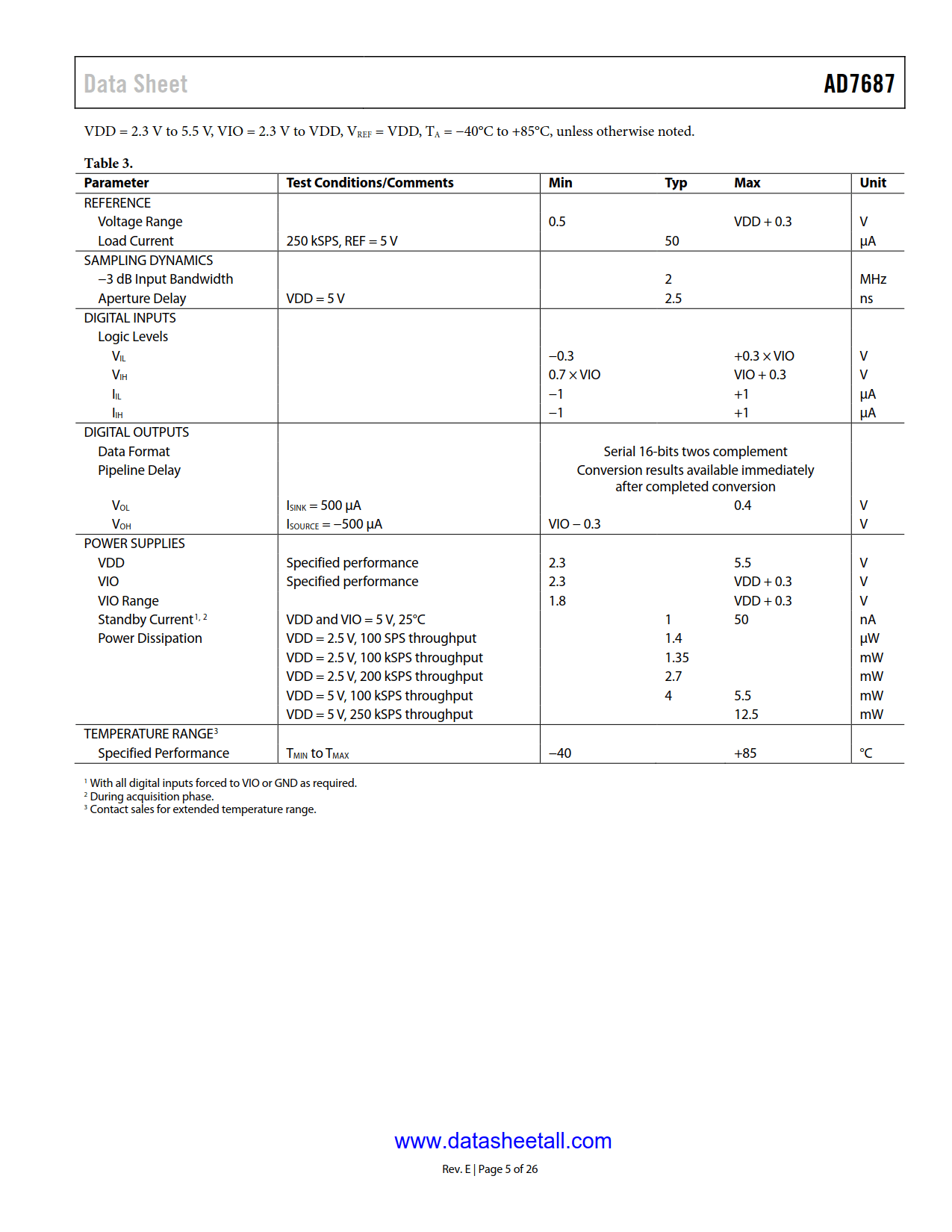

The AD76871 is a 16-bit, charge redistribution, successive approximation, analog-to-digital converter (ADC) that operates from a single power supply, VDD, between 2.3 V to 5.5 V. It contains a low power, high speed, 16-bit sampling ADC with no missing codes, an internal conversion clock, and a versatile serial interface port. The device also contains a low noise, wide bandwidth, short aperture delay track-and-hold circuit. On the CNV rising edge, the AD7687 the samples the voltage difference between IN+ and IN− pins, which can range from −VREF to +VREF. The reference voltage, VREF, is applied externally and can be set up to the supply voltage.
The power consumption of the device scales linearly with throughput.
The SPI-compatible serial interface also features the ability to daisy-chain several ADCs on a single 3-wire bus and provides an optional BUSY indicator by means of the SDI pin. It is compatible with 1.8 V, 2.5 V, 3 V, or 5 V logic using the separate supply VIO.
The AD7687 comes in a 10-lead MSOP or a 10-lead LFCSP with operation specified from −40°C to +85°C.
