| Part No.： | AD7686 |
| Page： | 28 Pages |
| Size： | 481 KB |
| Manufacturer： | Analog Devices, Inc. |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2025-01-06 17:50:10 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| AD7686BCPZRL | Reel | 5000 | C02 | 1 | 10 | -40°C ~ 85°C | 10-Lead LFCSP_WD | |
| AD7686BCPZRL7 | Reel | 1500 | C02 | 1 | 10 | -40°C ~ 85°C | 10-Lead LFCSP_WD | |
| AD7686BRMZ | Tube | 50 | C3N | 1 | 10 | -40°C ~ 85°C | 10-Lead MSOP | |
| AD7686BRMZRL7 | Reel | 1000 | C3N | 1 | 10 | -40°C ~ 85°C | 10-Lead MSOP | |
| AD7686CCPZRL | Reel | 5000 | C2G | 1 | 10 | -40°C ~ 85°C | 10-Lead LFCSP_WD | |
| AD7686CCPZRL7 | Reel | 1500 | C2G | 1 | 10 | -40°C ~ 85°C | 10-Lead LFCSP_WD | |
| AD7686CRMZ | Tube | 50 | C3P | 1 | 10 | -40°C ~ 85°C | 10-Lead MSOP | |
| AD7686CRMZRL7 | Reel | 1000 | C3P | 1 | 10 | -40°C ~ 85°C | 10-Lead MSOP |

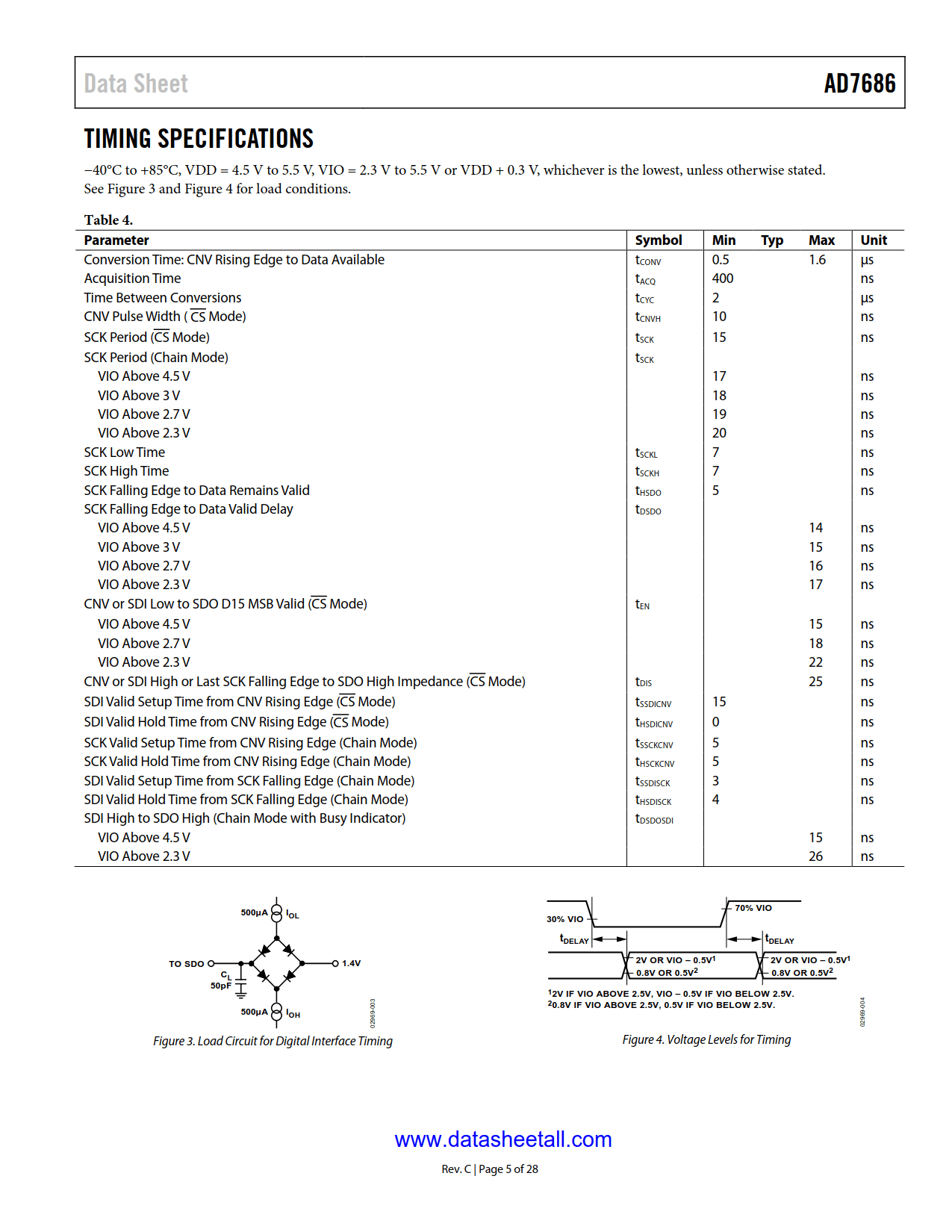

The AD7686 is a 16-bit, charge redistribution, successive approximation, analog-to-digital converter (ADC) that operates from a single 5 V power supply, VDD. It contains a low power, high speed, 16-bit sampling ADC with no missing codes, an internal conversion clock, and a versatile serial interface port. The part also contains a low noise, wide bandwidth, short aperture delay track-and-hold circuit. On the CNV rising edge, the AD7686 samples an analog input IN+ between 0 V to REF with respect to a ground sense IN−. The reference voltage, REF, is applied externally and can be set up to the supply voltage.
Power dissipation scales linearly with throughput.
The SPI-compatible serial interface also features the ability, using the SDI input, to daisy-chain several ADCs on a single, 3-wire bus or provides an optional busy indicator. This device is compatible with 1.8 V, 2.5 V, 3 V, or 5 V logic, using the separate supply VIO.
The AD7686 is housed in a 10-lead MSOP or a 10-lead QFN (LFCSP) with operation specified from −40°C to +85°C.
