AD7680 Datasheet

AD7680 Datasheet

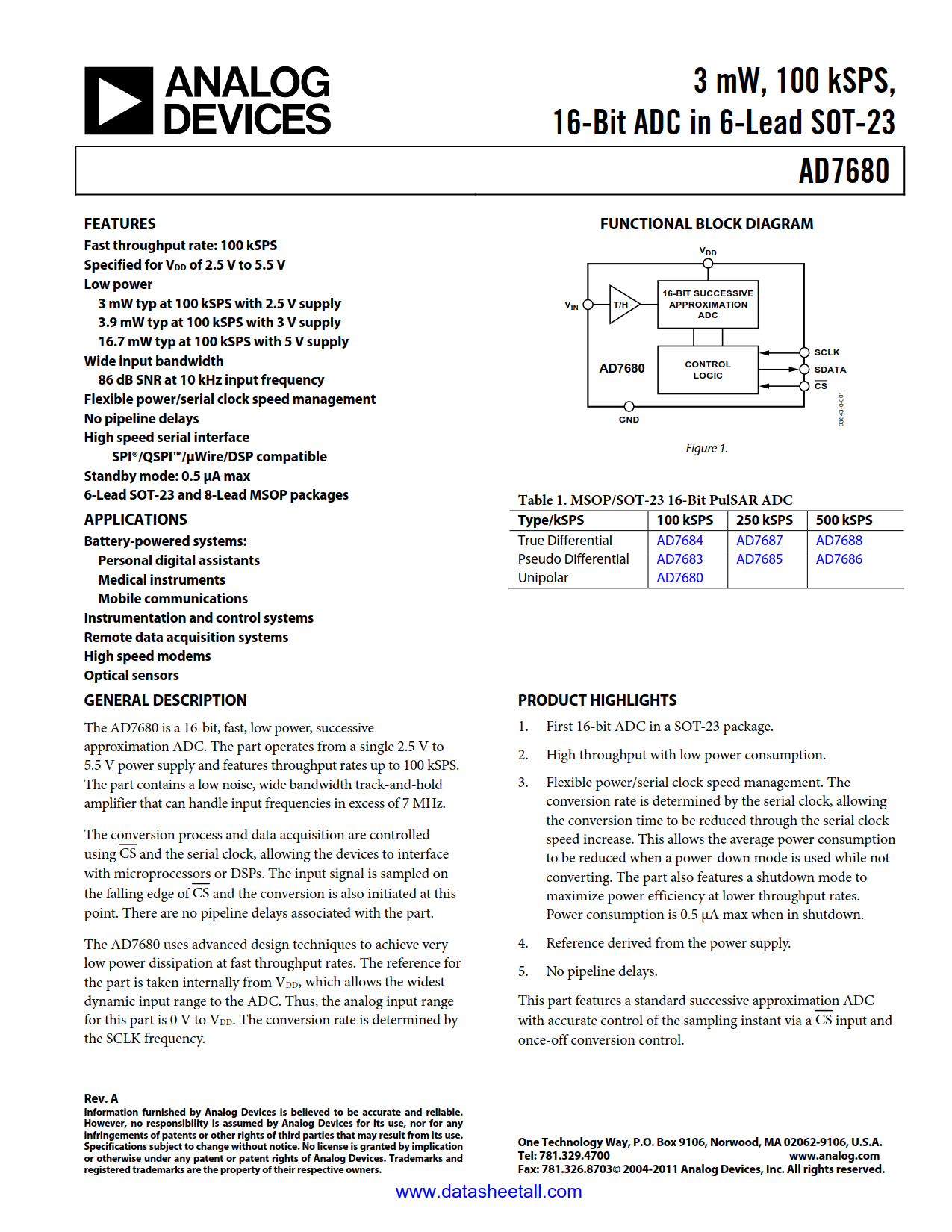

3 mW, 100 kSPS, 16-Bit ADC in 6 Lead SOT-23
Part No.: AD7680
Page: 24 Pages
Size: 283 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 1
Update Time: 2023-10-17 14:22:33
DataSheet: Download

AD7680 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
AD7680ARJZ-REEL7 Reel 3000   3 6 -40°C ~ 85°C 6-Lead Small Outline Transistor Package (SOT-23)
AD7680ARM Tube 50   3 8 -40°C ~ 85°C 8-Lead Mini Small Outline Package (MSOP)
AD7680ARM-REEL Reel     3 8 -40°C ~ 85°C 8-Lead Mini Small Outline Package (MSOP)
AD7680ARM-REEL7 Reel     3 8 -40°C ~ 85°C 8-Lead Mini Small Outline Package (MSOP)
AD7680ARMZ       3 8 -40°C ~ 85°C 8-Lead Mini Small Outline Package (MSOP)
AD7680BRJZ-R2       3 6 -40°C ~ 85°C 6-Lead Small Outline Transistor Package (SOT-23)
AD7680BRJZ-REEL7 Reel 3000   3 6 -40°C ~ 85°C 6-Lead Small Outline Transistor Package (SOT-23)
AD7680BRM Tube 50   3 8 -40°C ~ 85°C 8-Lead Mini Small Outline Package (MSOP)
AD7680BRM-REEL Reel     3 8 -40°C ~ 85°C 8-Lead Mini Small Outline Package (MSOP)
AD7680BRM-REEL7 Reel     3 8 -40°C ~ 85°C 8-Lead Mini Small Outline Package (MSOP)
AD7680BRMZ       3 8 -40°C ~ 85°C 8-Lead Mini Small Outline Package (MSOP)
AD7680BRMZ-REEL Reel     3 8 -40°C ~ 85°C 8-Lead Mini Small Outline Package (MSOP)
AD7680BRMZ-REEL7 Reel 1000   3 8 -40°C ~ 85°C 8-Lead Mini Small Outline Package (MSOP)
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

AD7680 Datasheet(PDF)

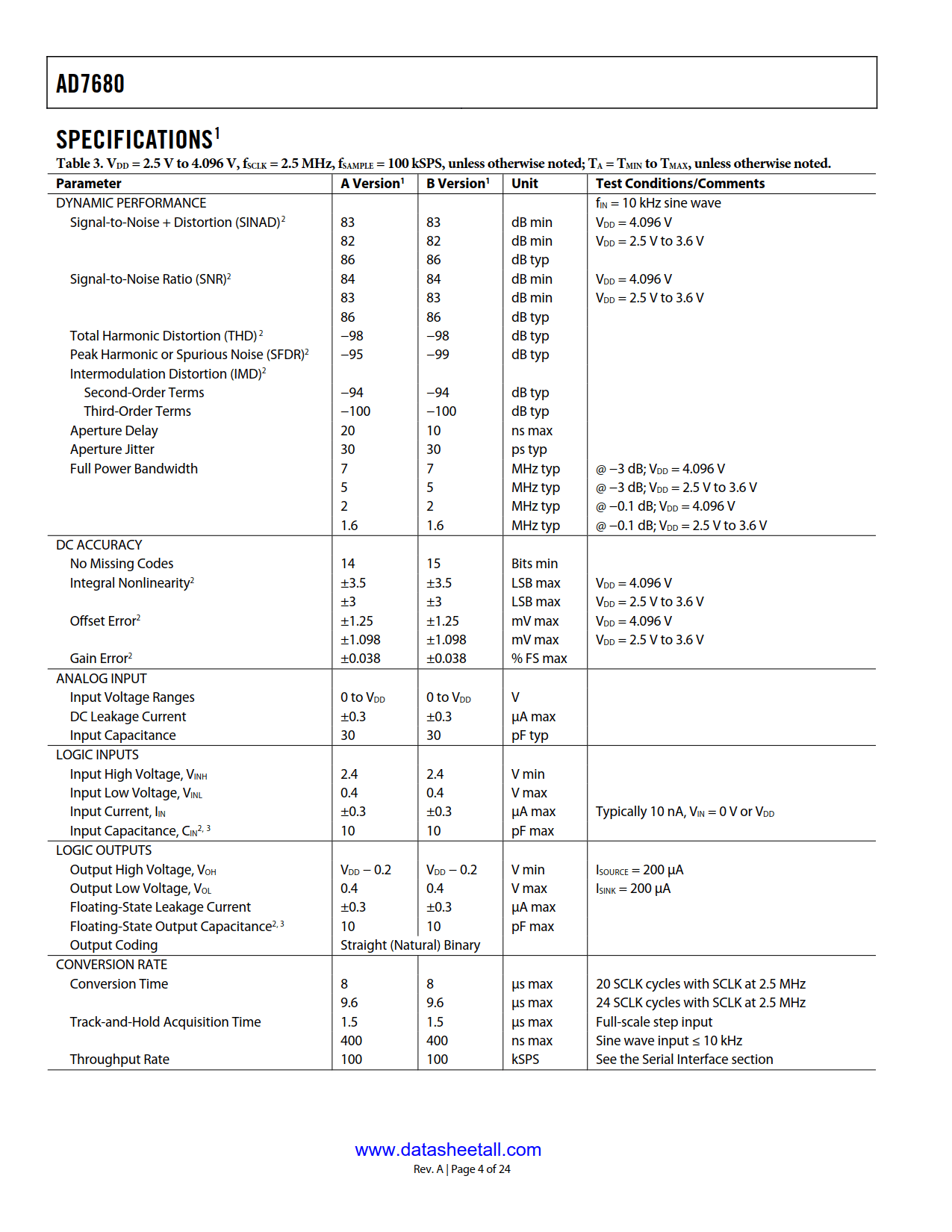

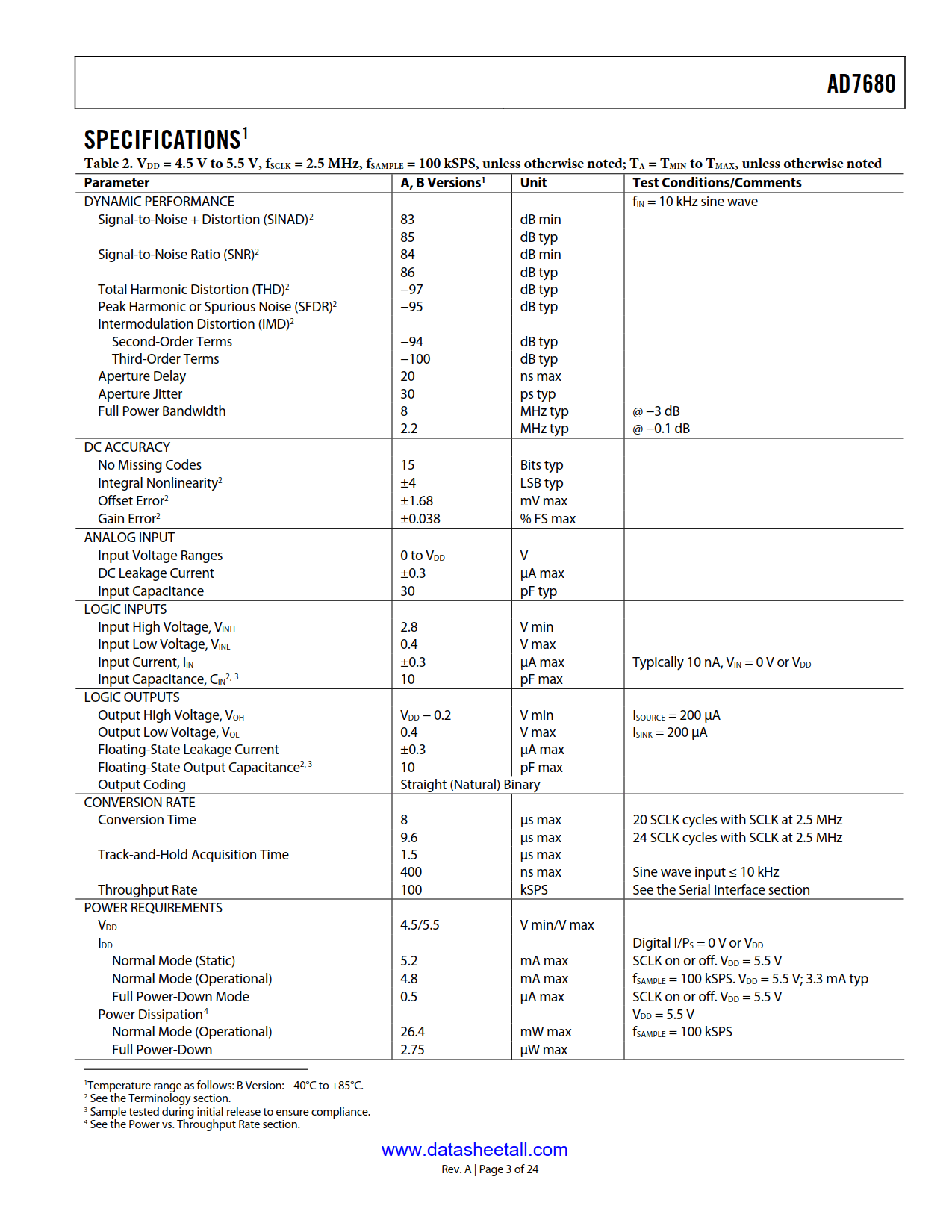

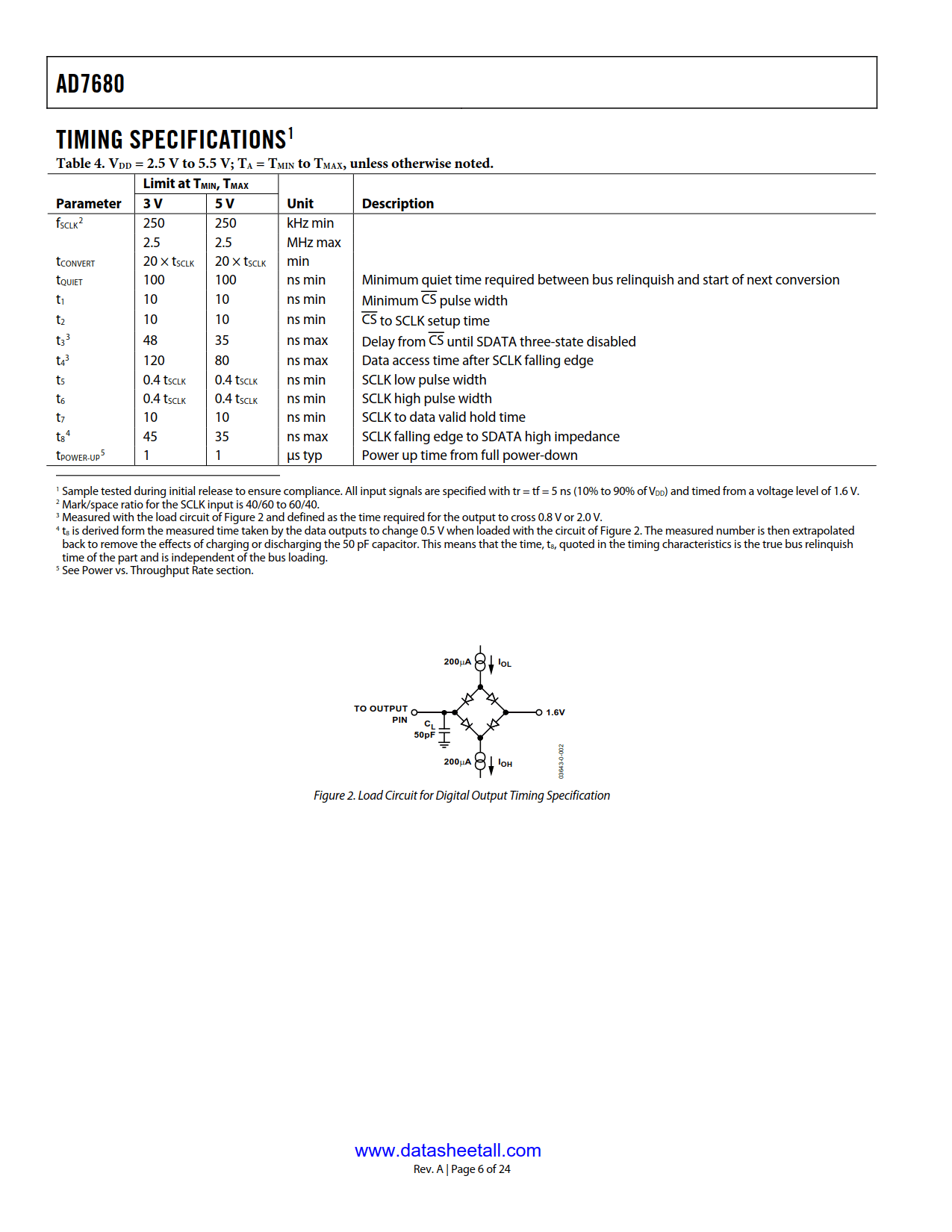

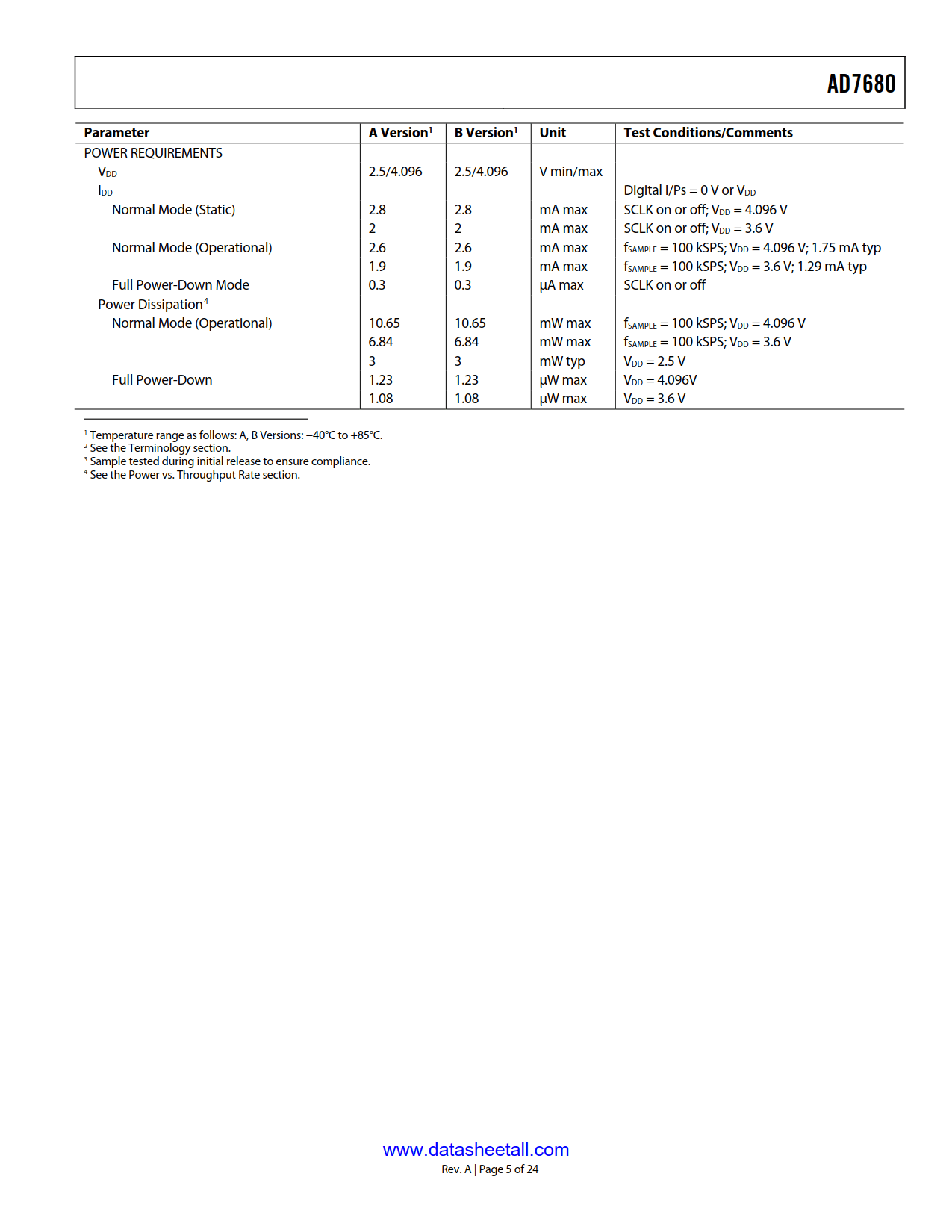

AD7680 Datasheet(Picture)

AD7680 Features

  • Fast Throughput Rate: 100 kSPS
  • Low Power:
    3 mW typ at 100 kSPS with 2.5 V supply
    3.9 mW typ at 100 kSPS with 3 V supply
    16.7 mW typ at 100 kSPS with 5 V supply
  • Wide Input Bandwidth:
    86 dB SNR at 10 kHz Input Frequency
  • Specified for VDD of 2.5 V to 5.5 V
  • Flexible Power/Serial Clock Speed Management
  • No Pipeline Delays
  • High Speed Serial Interface SPI®/QSPI/µWire/DSP Compatible
  • Standby Mode: 0.5 µA max
  • 6-Lead SOT-23 and 8-Lead MSOP packages

AD7680 Applications

  • Process control
  • Battery-powered systems:
    Personal digital assistants
    Medical instruments
    Mobile communications
  • Instrumentation and control systems
  • Remote data acquisition systems
  • High speed modems
  • Optical sensors

AD7680 Description

The AD7680 is a 16-bit, fast, low power, successive approximation ADC. The part operates from a single 2.5 V to 5.5 V power supply and features throughput rates up to 100 kSPS. The part contains a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 7 MHz.

The conversion process and data acquisition are controlled using CS and the serial clock, allowing the devices to interface with microprocessors or DSPs. The input signal is sampled on the falling edge of CS and the conversion is also initiated at this point. There are no pipelined delays associated with the part.

The AD7860 uses advanced design techniques to achieve very low-power dissipation at fast throughput rates. The reference for the part is taken internally from VDD. This allows the widest dynamic input range to the ADC. Thus the analog input range for the part is 0 to VDD. The conversion rate is determined by the SCLK frequency.
