AD7543 Datasheet

AD7543 Datasheet

12-Bit, Multiplying IOUT, SERIAL
Part No.: AD7543
Page: 8 Pages
Size: 564 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 2
Update Time: 2023-12-20 10:36:11
DataSheet: Download

AD7543 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
AD7543JN           -40°C ~ 85°C
AD7543KN           -40°C ~ 85°C
AD7543GKN           -40°C ~ 85°C
AD7543JP           -40°C ~ 85°C
AD7543KP           -40°C ~ 85°C
AD7543GKP           -40°C ~ 85°C
AD7543JR           -40°C ~ 85°C
AD7543KR           -40°C ~ 85°C
AD7543GKR           -40°C ~ 85°C
AD7543AQ           -40°C ~ 85°C
AD7543BQ           -40°C ~ 85°C
AD7543GBQ           -40°C ~ 85°C
AD7543SQ           -55°C ~ 125°C
AD7543TQ           -55°C ~ 125°C
AD7543GTQ           -55°C ~ 125°C
AD7543SE           -55°C ~ 125°C
AD7543TE           -55°C ~ 125°C
AD7543GTE           -55°C ~ 125°C
AD7543GKNZ Tube 25   1 16 -40°C ~ 85°C 16-Lead PDIP
AD7543GTQ/883B Tube 25   1 16 -55°C ~ 125°C 16 ld CerDIP
AD7543JNZ Tube 25   1 16 -40°C ~ 85°C 16-Lead PDIP
AD7543KNZ Tube 25   1 16 -40°C ~ 85°C 16-Lead PDIP
AD7543KPZ Tube 49   1 20 -40°C ~ 85°C 20-Lead Flatpack
AD7543KRZ Tube 47   1 16 -40°C ~ 85°C 16-Lead SOIC Wide
AD7543KRZ-REEL Reel 1000   1 16 -40°C ~ 85°C 16-Lead SOIC Wide
AD7543SQ/883B Tube 25   1 16 -55°C ~ 125°C 16 ld CerDIP
AD7543TE/883B Tube 54   1 20 -55°C ~ 125°C 20 ld LCC
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

AD7543 Datasheet(PDF)

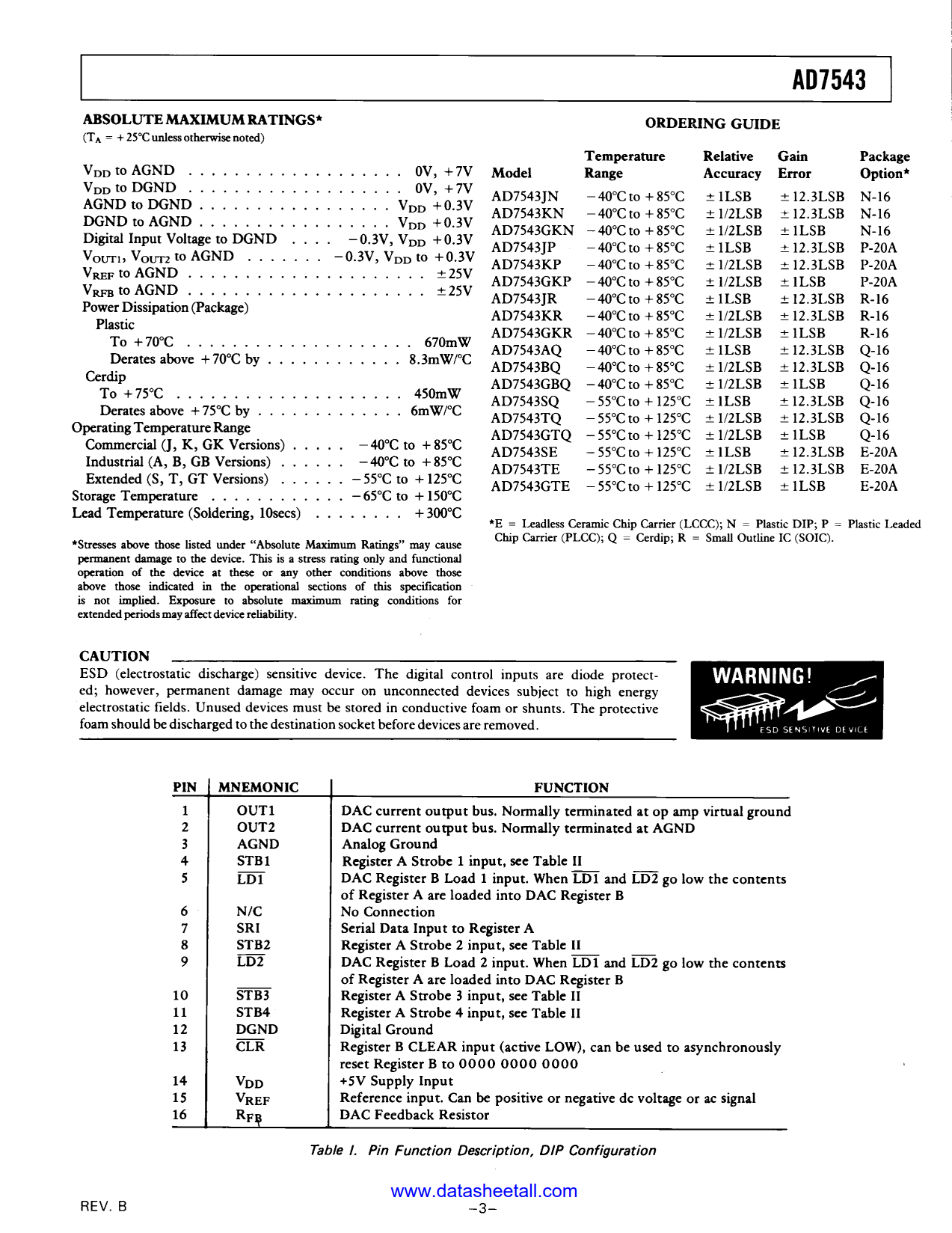

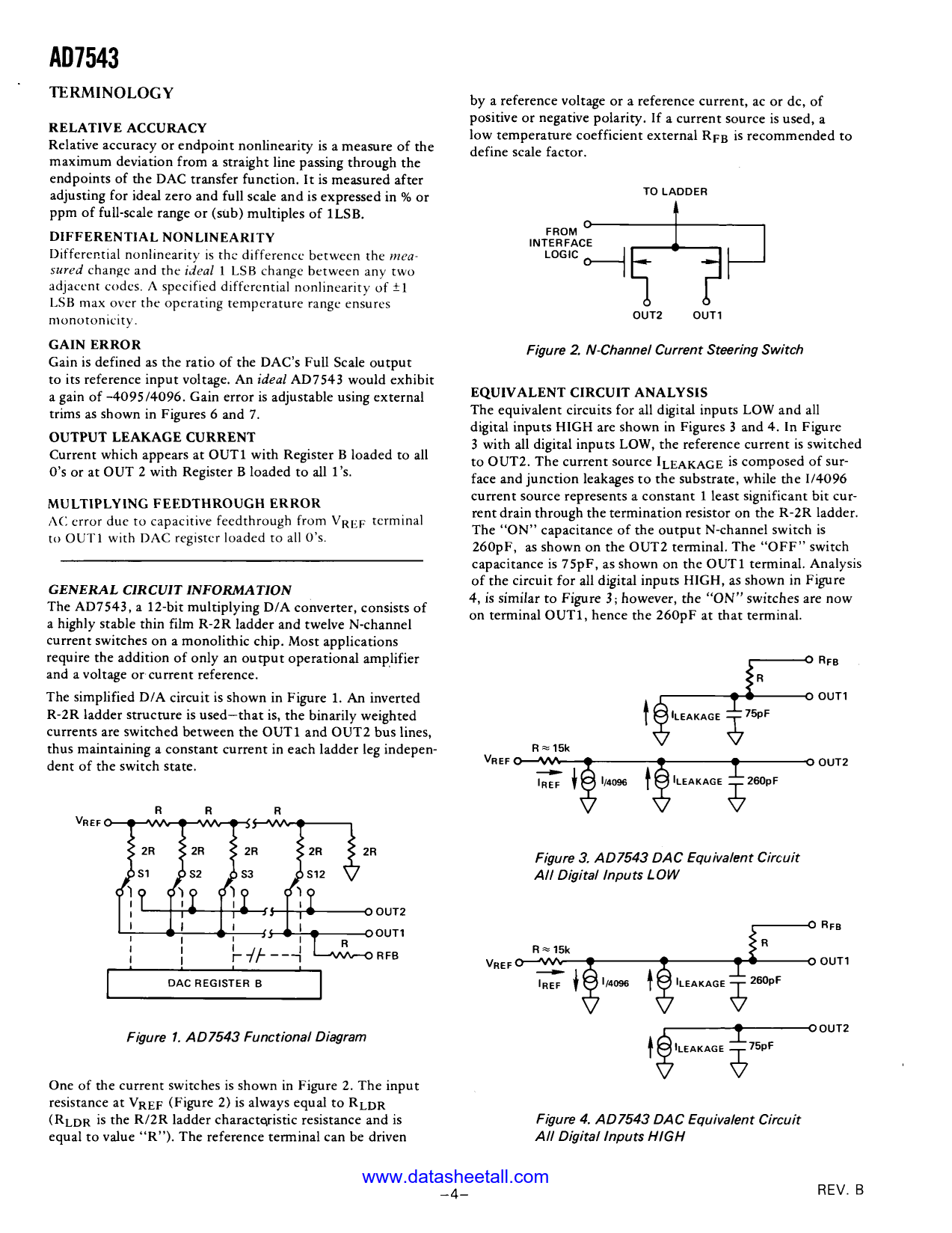

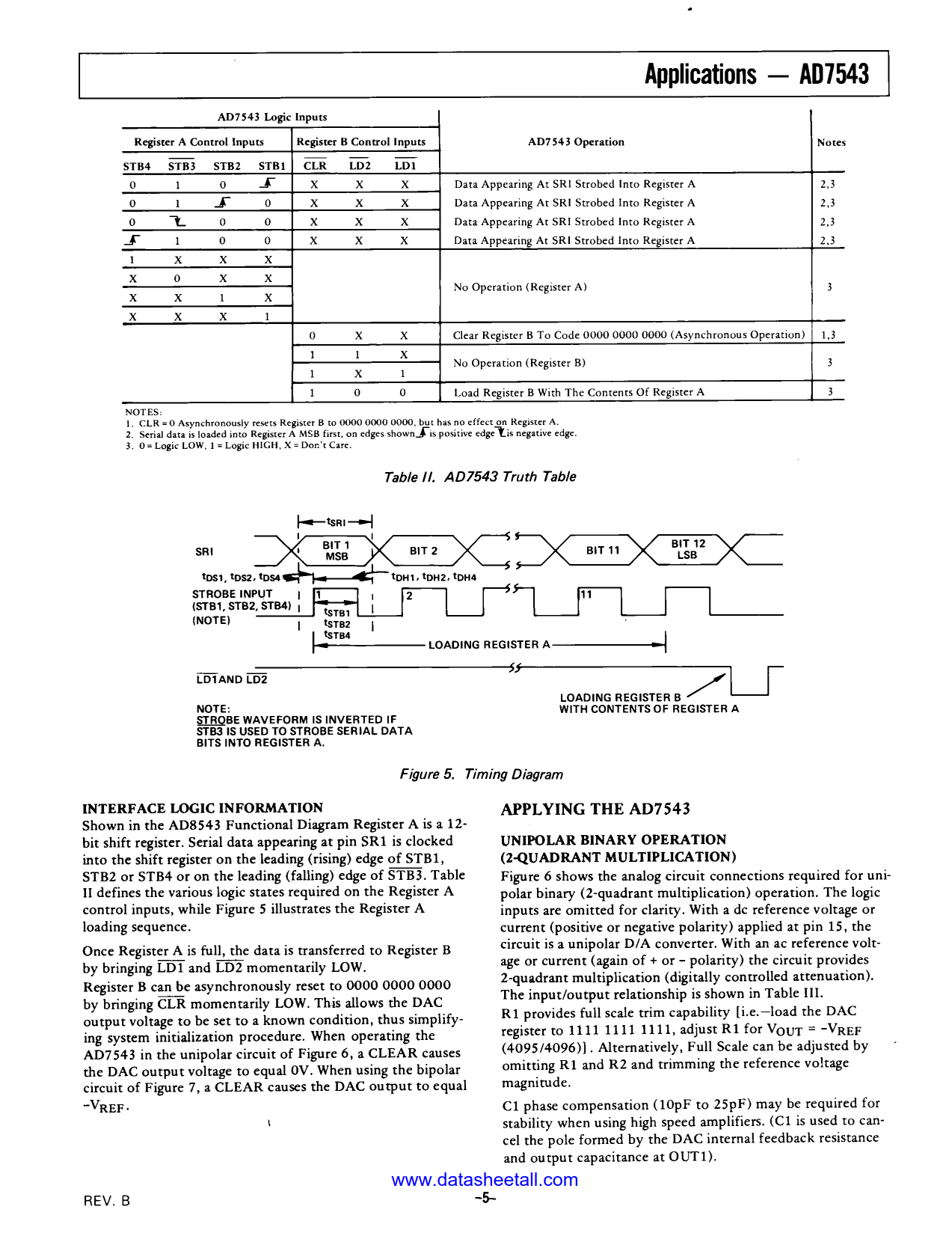

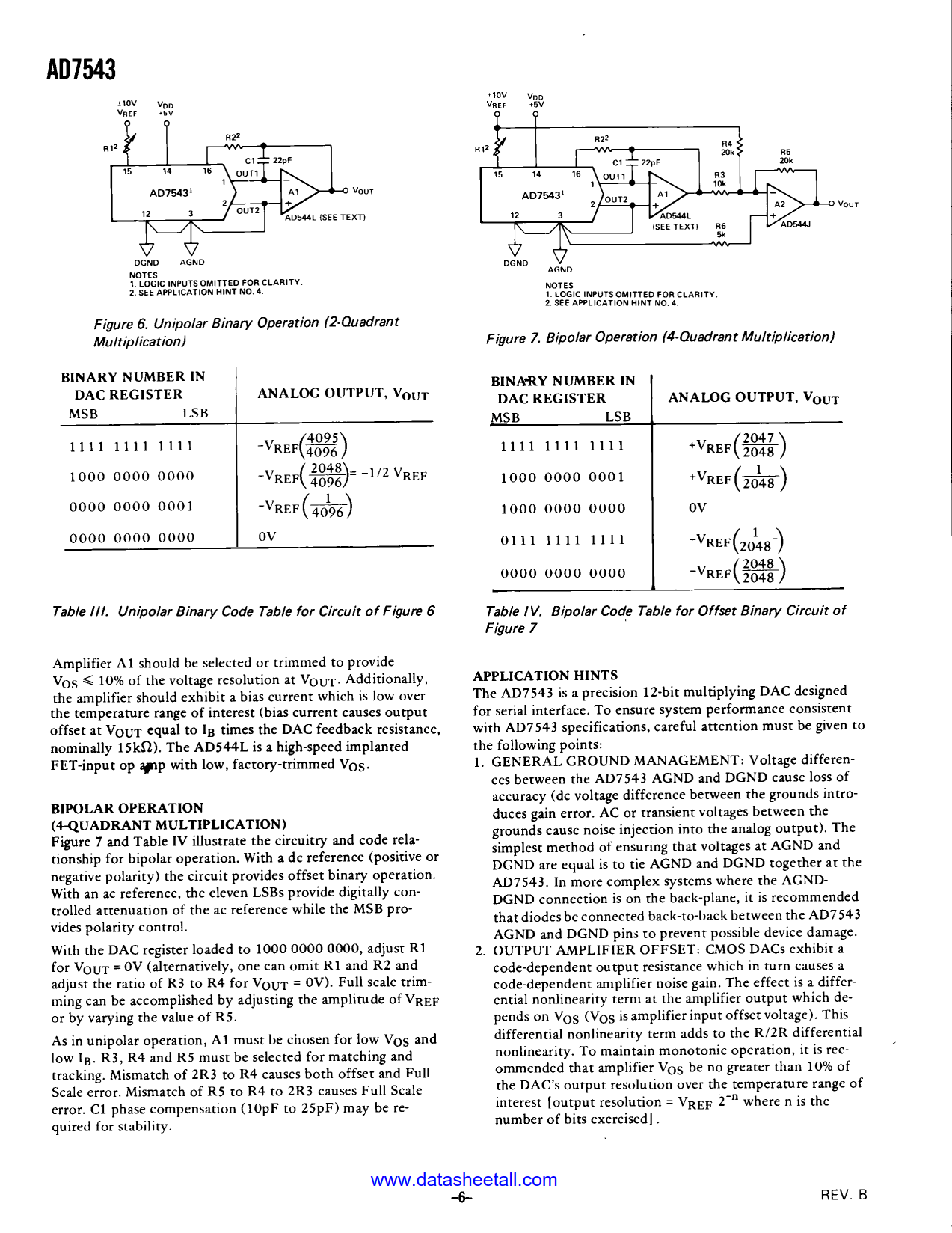

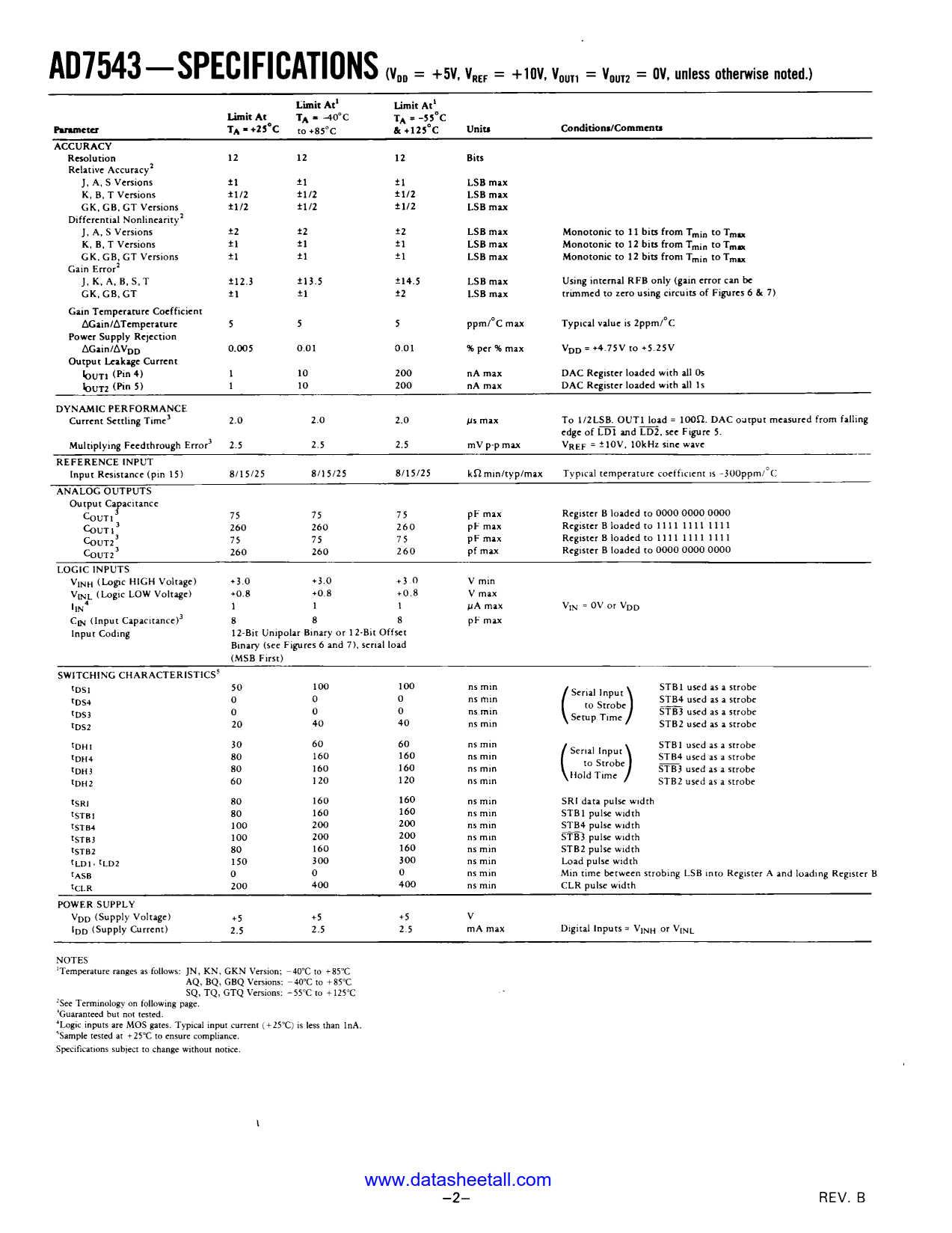

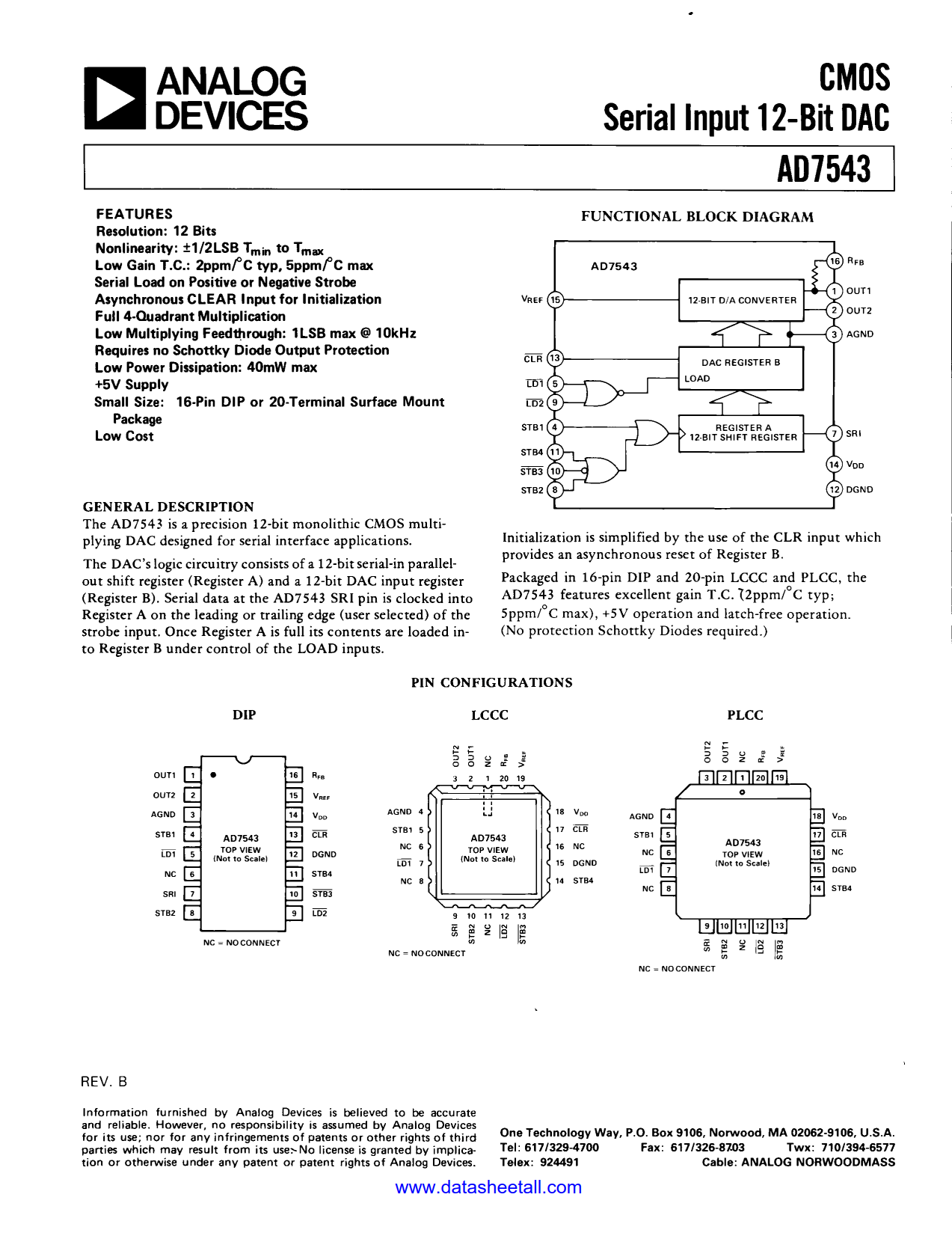

AD7543 Datasheet(Picture)

AD7543 Features

  • Resolution: 12 Bits
  • Nonlinearity: ±1/2 LSB Tmin to Tmax
  • Low Gain Drift: 2ppm/°C typ, 5ppm/°C max
  • Serial Load on Positive or Negative Strobe
  • Asynchronous CLEAR Input for Initialization
  • Full 4-Quadrant Multiplication
  • Low Multiplying Feedthrough: 1 LSB max @10kHz
  • Requires no Schottky Diode Output Protection
  • Low Power Dissipation: 40 mW max
  • +5V Supply
  • Small Size:
    16-pin DIP
    20-Terminal Surface Mount Package
  • Low Cost

AD7543 Description

The AD7543 is a precision 12-bit monolithic CMOS multiplying DAC designed for serial interface applications.

The DAC's logic circuitry consists of a 12-bit serial-in parallel-out shift register (Register A) and a 12-bit DAC input register (Register B). Serial data at the AD7543 SRI pin is clocked into Register A on the leading or trailing edge (user selected) of the strobe input. Once Register A is full its contents are loaded into Register B under control of the LOAD inputs.
