AD654 Datasheet

AD654 Datasheet

Low Cost Monolithic Voltage-to-Frequency Converter
Part No.: AD654
Page: 12 Pages
Size: 327 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 2
Update Time: 2023-09-13 14:52:20
DataSheet: Download

AD654 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
AD654JN     AD654JN N/A 8 -40°C ~ 85°C 8-Lead PDIP
AD654JNZ Tube 50 AD654JN N/A 8 -40°C ~ 85°C 8-Lead PDIP
AD654JNZ/+     AD654JN N/A 8 -40°C ~ 85°C 8-Lead PDIP
AD654JR     - 1 8 -40°C ~ 85°C 8-Lead SOIC_N
AD654JR-REEL Reel   - 1 8 -40°C ~ 85°C 8-Lead SOIC_N
AD654JR-REEL7 Reel   - 1 8 -40°C ~ 85°C 8-Lead SOIC_N
AD654JRZ Tube 98 AD654J 1 8 -40°C ~ 85°C 8-Lead SOIC_N
AD654JRZ-REEL Reel 2500 AD654J 1 8 -40°C ~ 85°C 8-Lead SOIC_N
AD654JRZ-REEL7 Reel 750 AD654J 1 8 -40°C ~ 85°C 8-Lead SOIC_N
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

AD654 Datasheet(PDF)

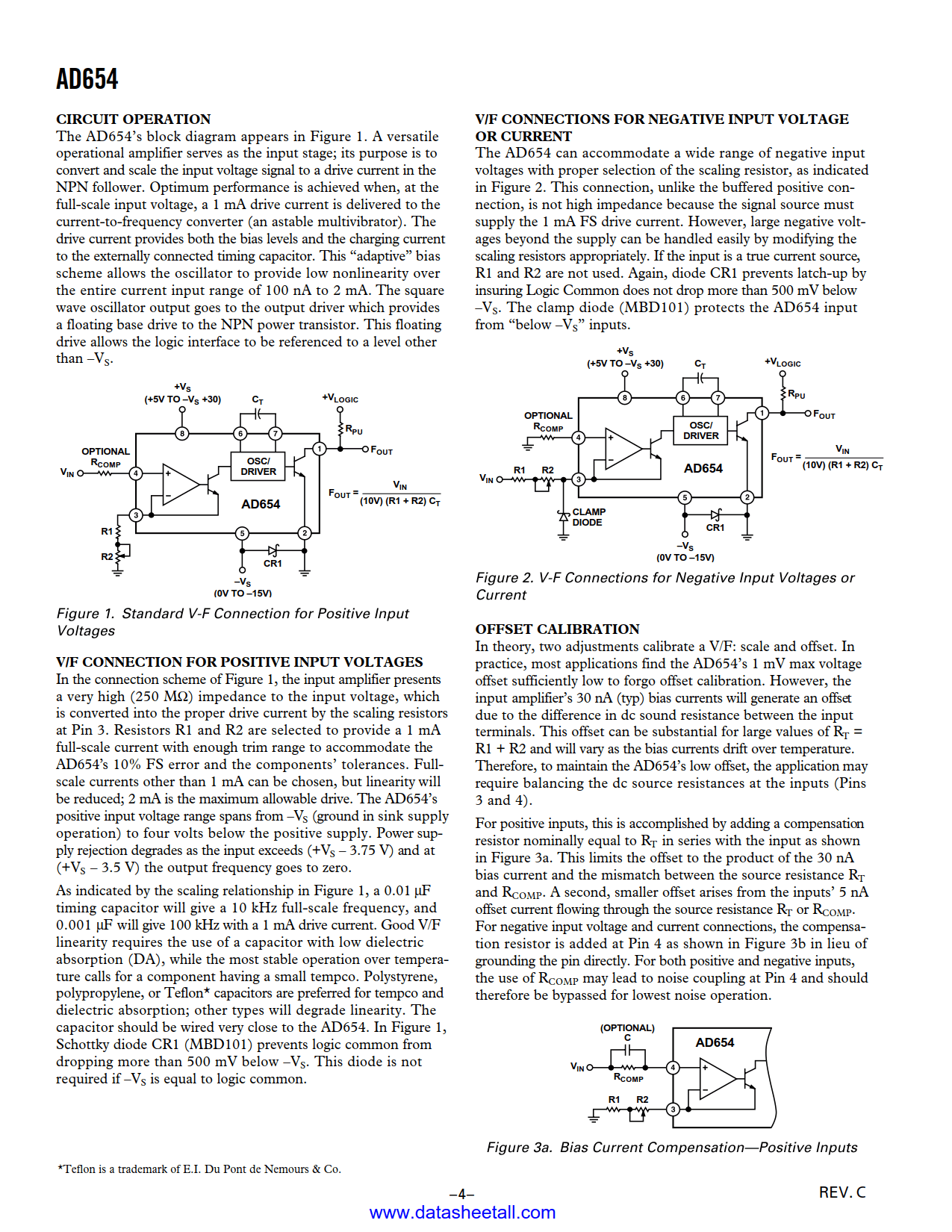

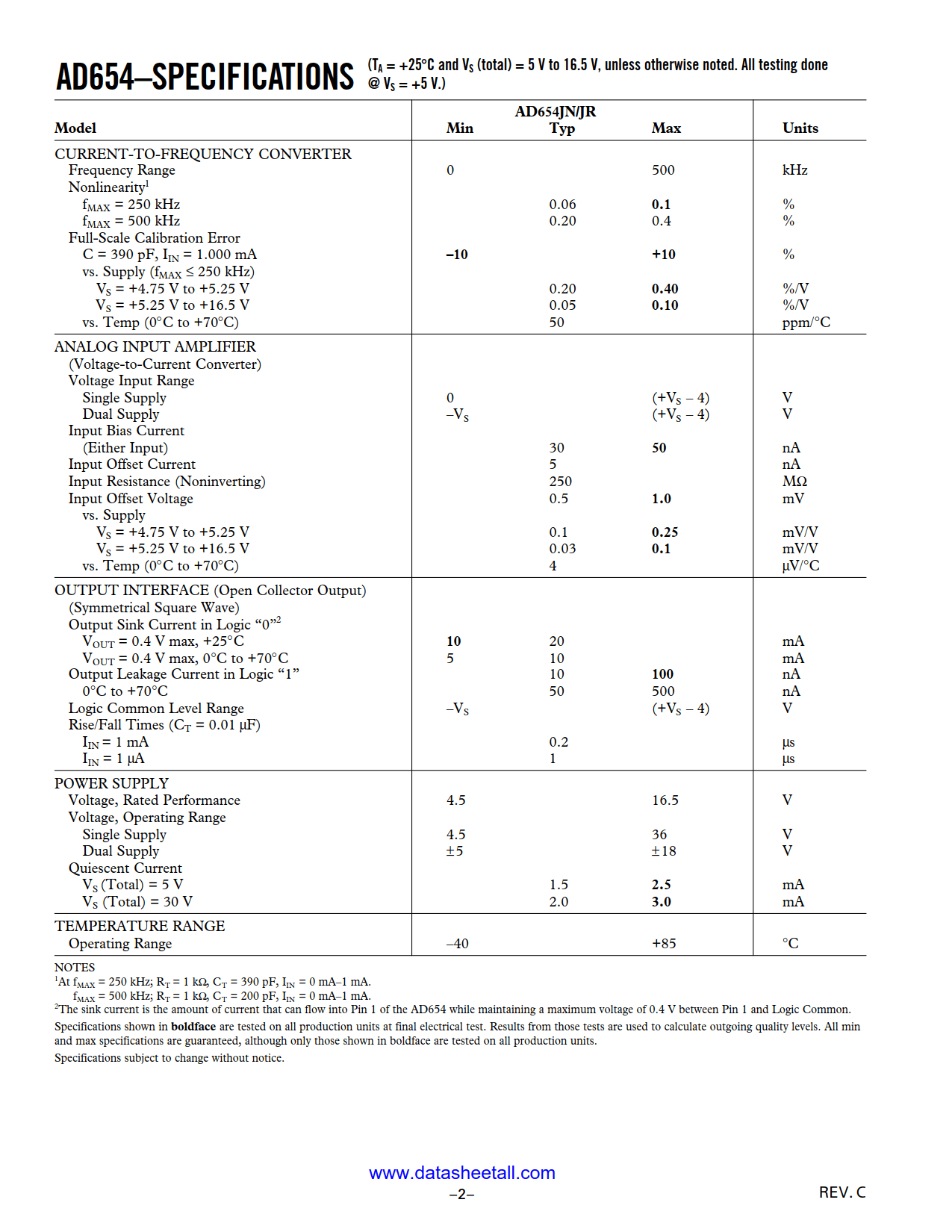

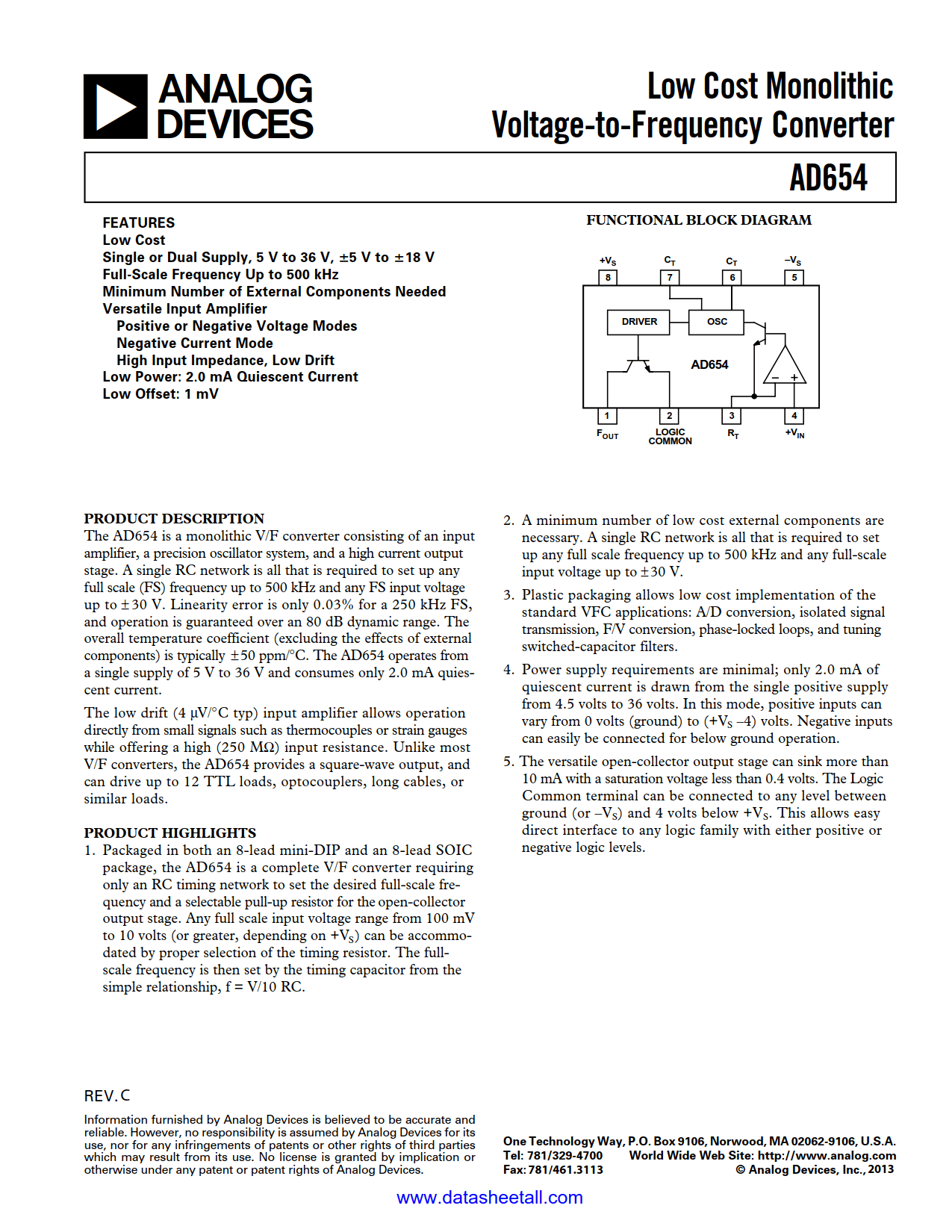

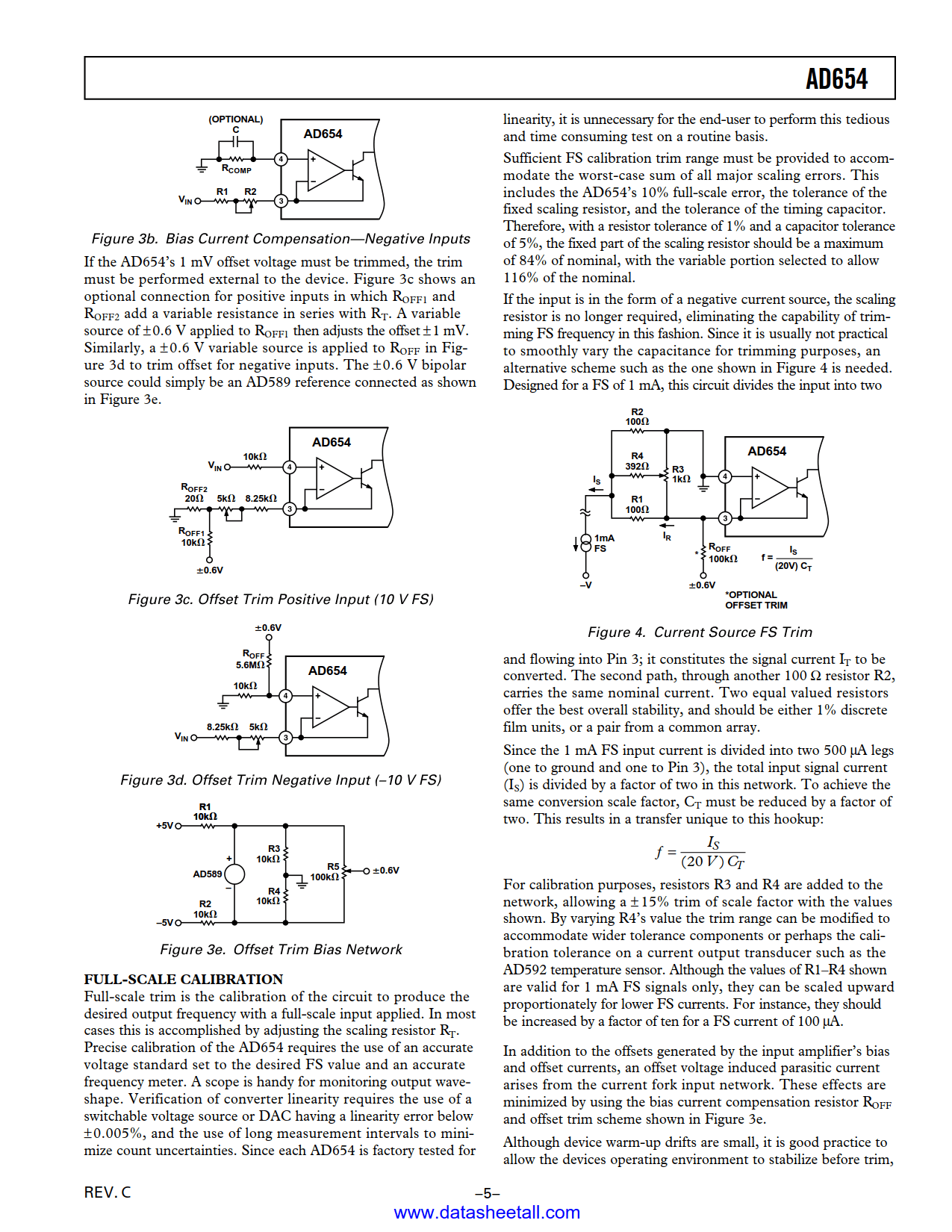

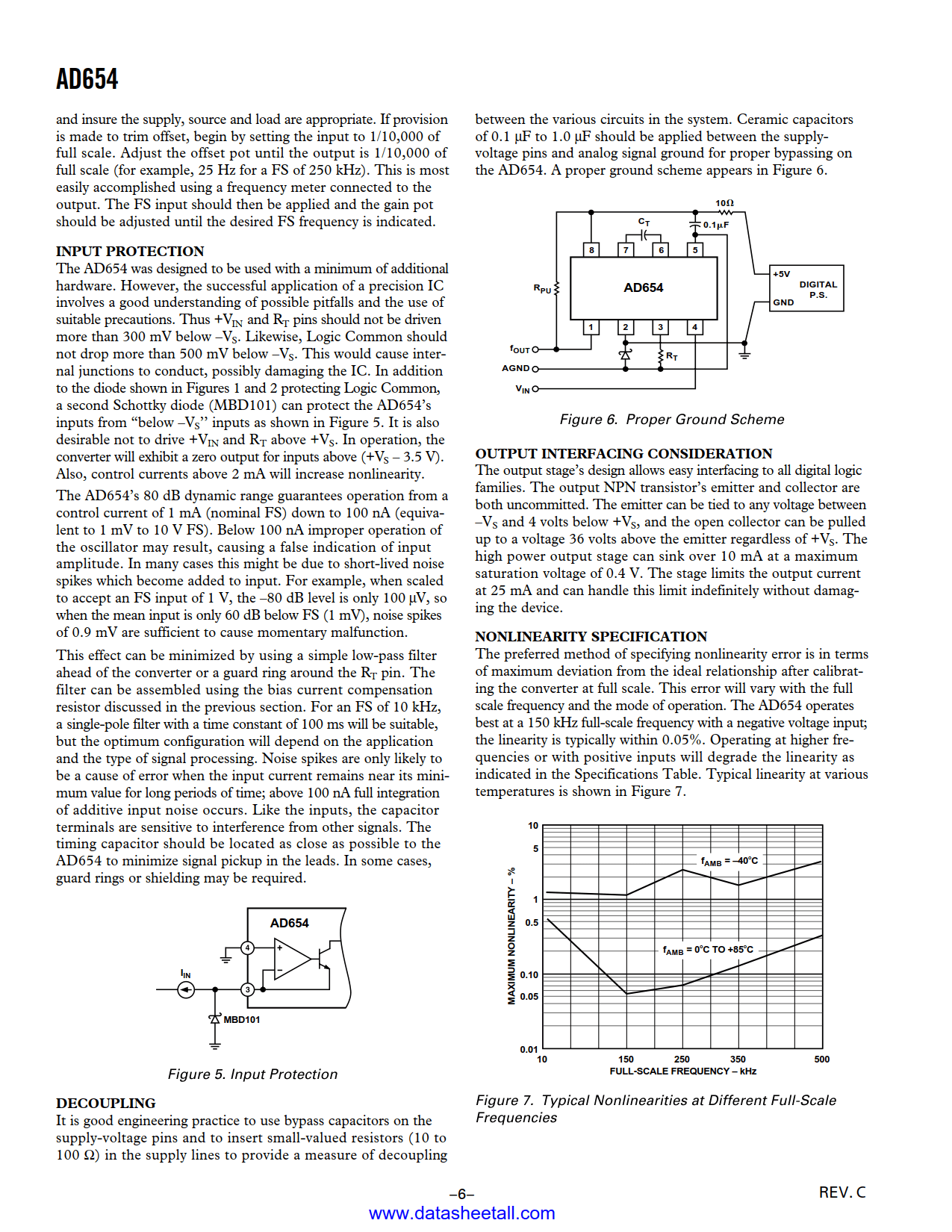

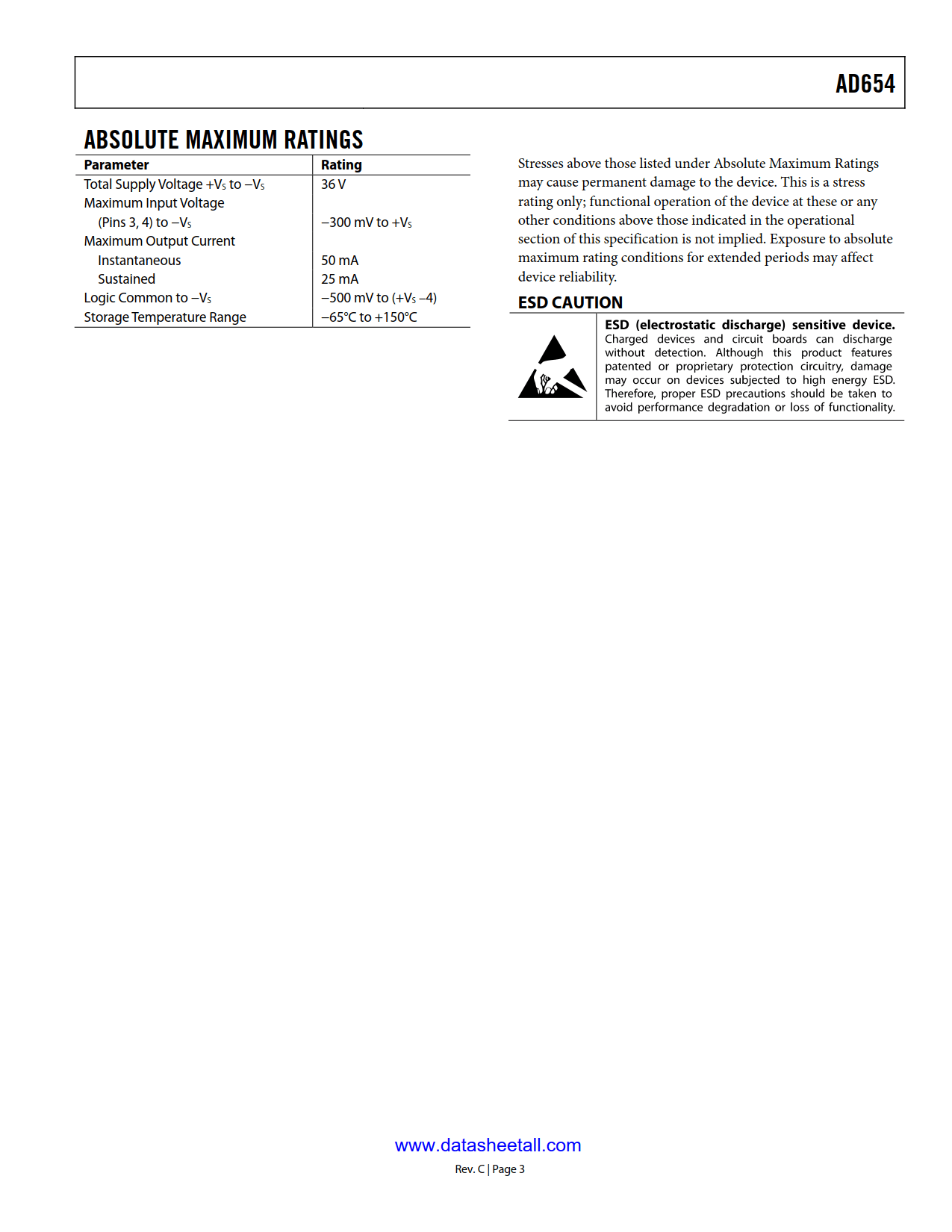

AD654 Datasheet(Picture)

AD654 Features

  • Low Cost
  • Single or Dual Supply, 5 V to 36 V,
    ±5 V to ±18 V
  • Full-Scale Frequency Up to 500 kHz
  • Minimum Number of External Components Needed
  • Versatile Input Amplifier
    Positive or Negative Voltage Modes
    Negative Current Mode
    High Input Impedance, Low Drift
  • Low Power: 2.0 mA Quiescent Current
  • Low Offset: 1 mV

AD654 Description

The AD654 is a monolithic V/F converter consisting of an input amplifier, a precision oscillator system, and a high current output stage. A single RC network is all that is required to set up any full scale (FS) frequency up to 500 kHz and any FS input voltage up to ±30 V. Linearity error is only 0.03% for a 250 kHz FS, and operation is guaranteed over an 80 dB dynamic range. The overall temperature coefficient (excluding the effects of external components) is typically ±50 ppm/°C. The AD654 operates from a single supply of 5 V to 36 V and consumes only 2.0 mA quiescent current.

The low drift (4 µV/°C typ) input amplifier allows operation directly from small signals such as thermocouples or strain gauges while offering a high (250 MΩ) input resistance. Unlike most V/F converters, the AD654 provides a square-wave output, and can drive up to 12 TTL loads, optocouplers, long cables, or similar loads.
