AD5443 Datasheet

AD5443 Datasheet

12-Bit High Bandwidth Multiplying DAC's with Serial Interface
Part No.: AD5443
Page: 24 Pages
Size: 568 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 2
Update Time: 2023-12-20 10:16:42
DataSheet: Download

AD5443 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
AD5443YRM       1 10 -40°C ~ 125°C 10-Lead MSOP
AD5443YRM-REEL       1 10 -40°C ~ 125°C 10-Lead MSOP
AD5443YRM-REEL7       1 10 -40°C ~ 125°C 10-Lead MSOP
AD5443YRMZ Tube 50   1 10 -40°C ~ 125°C 10-Lead MSOP
AD5443YRMZ-REEL Reel 3000   1 10 -40°C ~ 125°C 10-Lead MSOP
AD5443YRMZ-REEL7 Reel 1000   1 10 -40°C ~ 125°C 10-Lead MSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

AD5443 Datasheet(PDF)

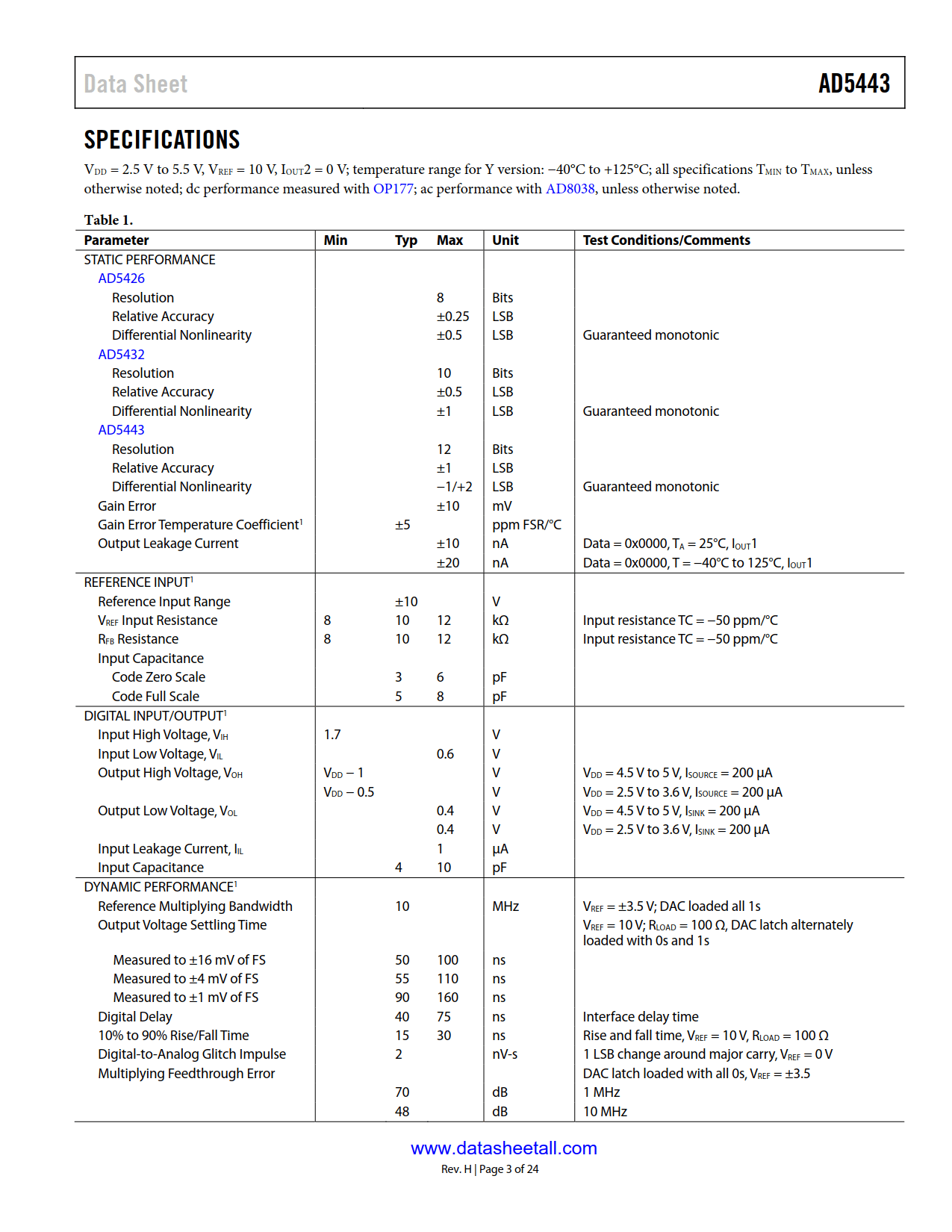

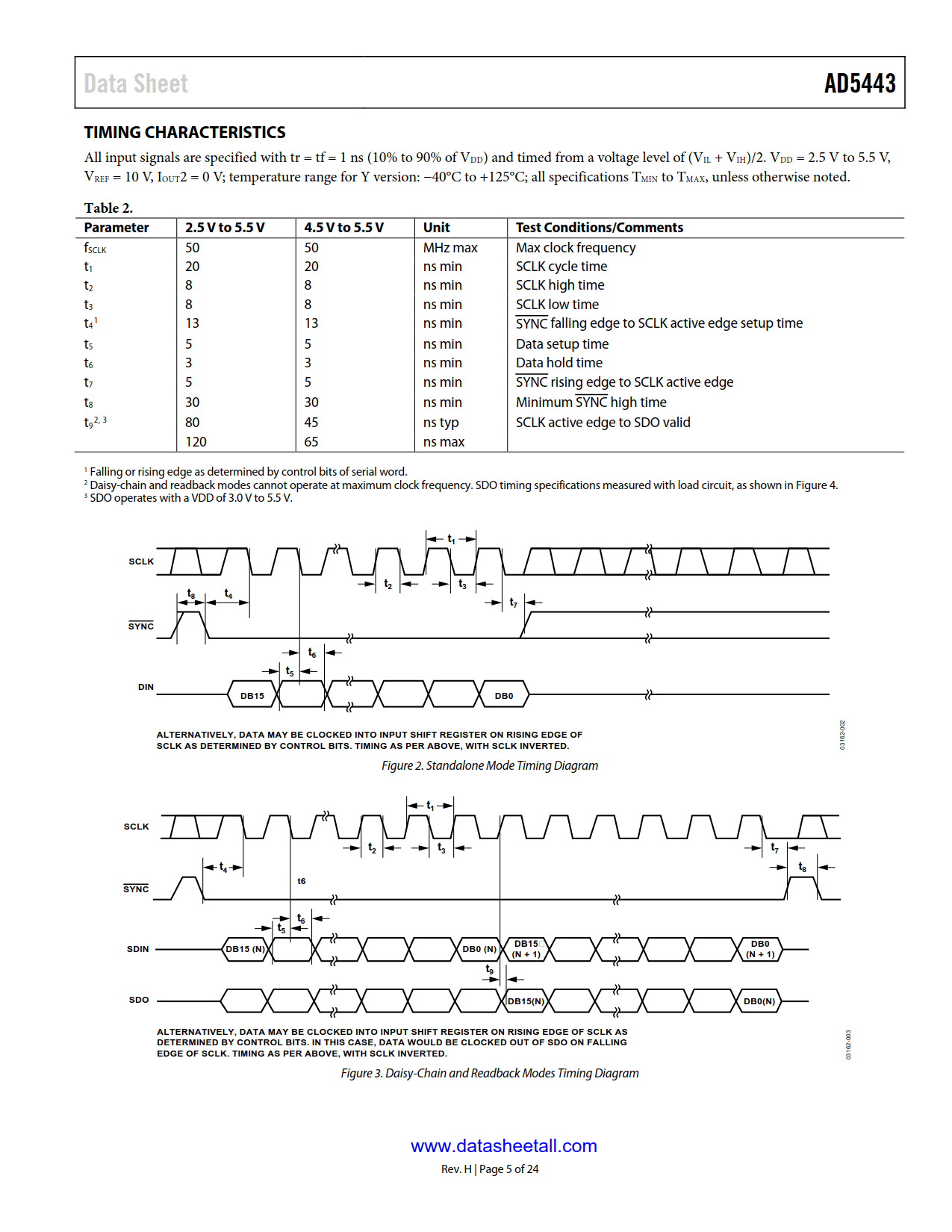

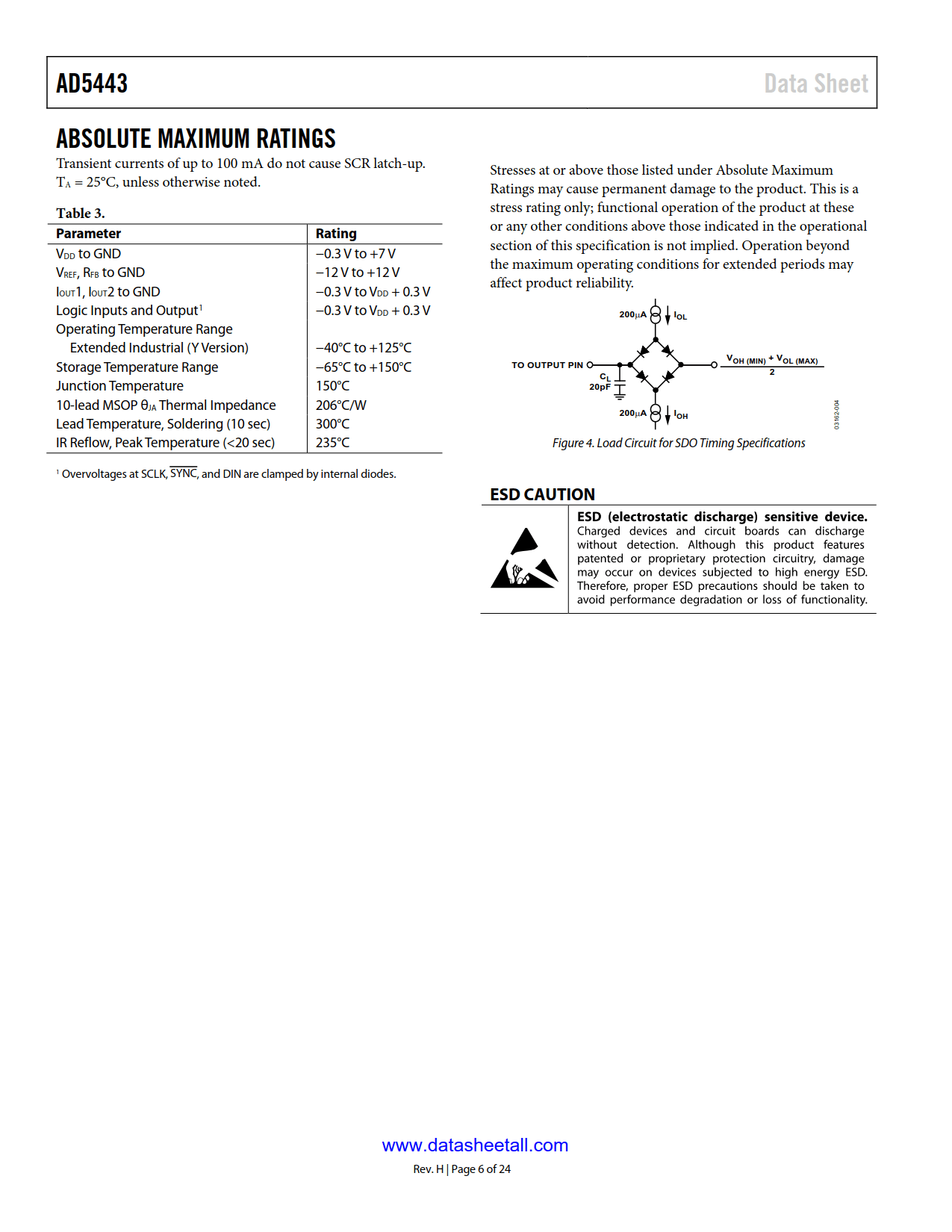

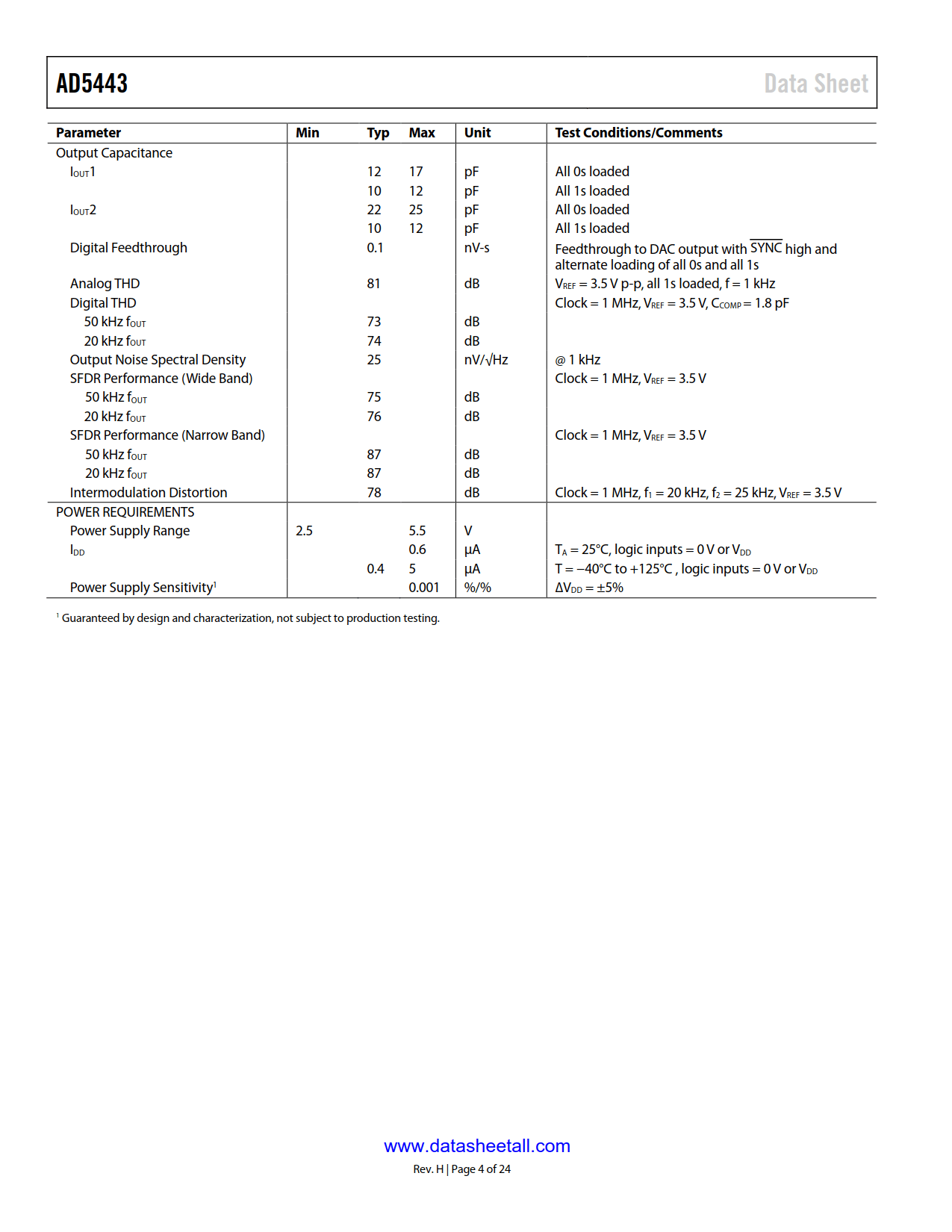

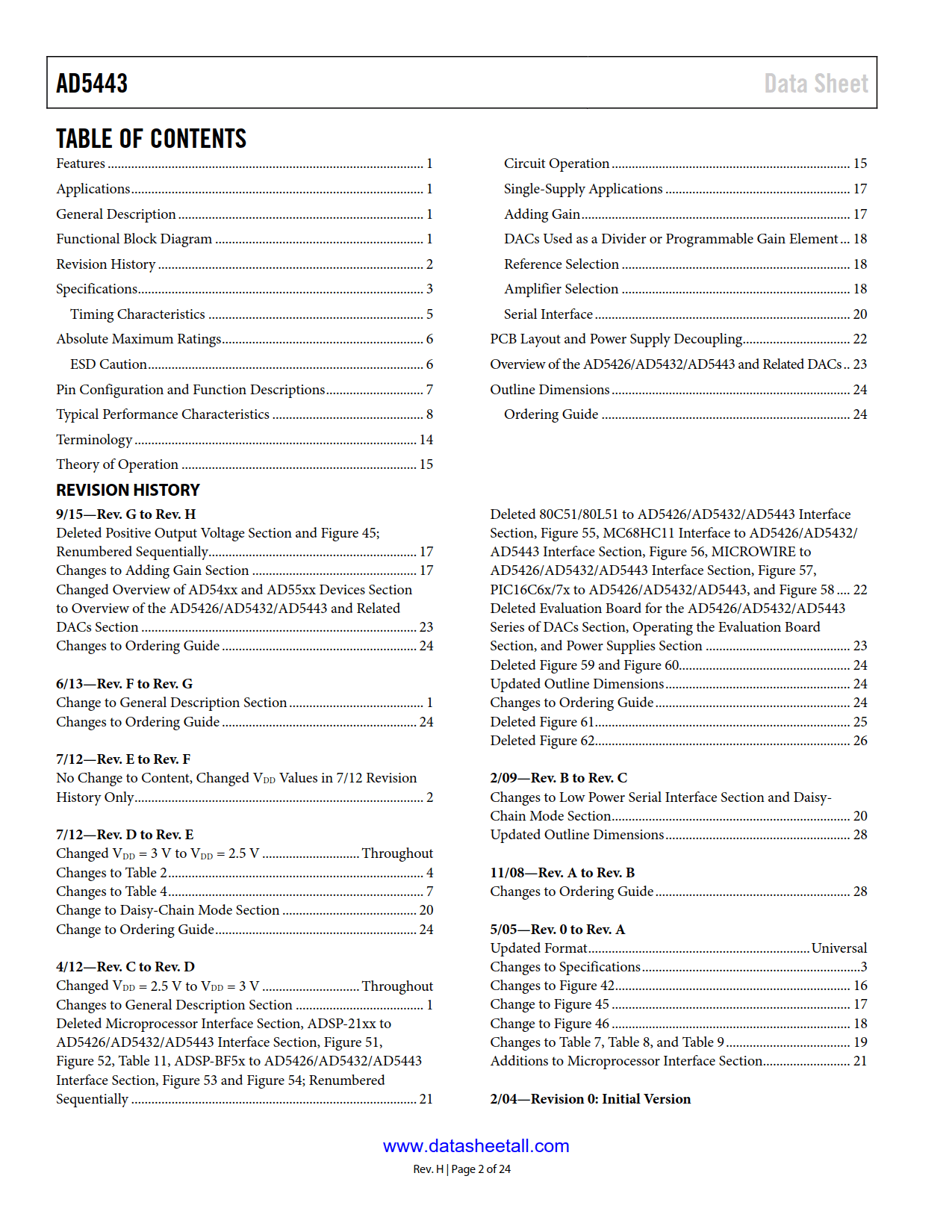

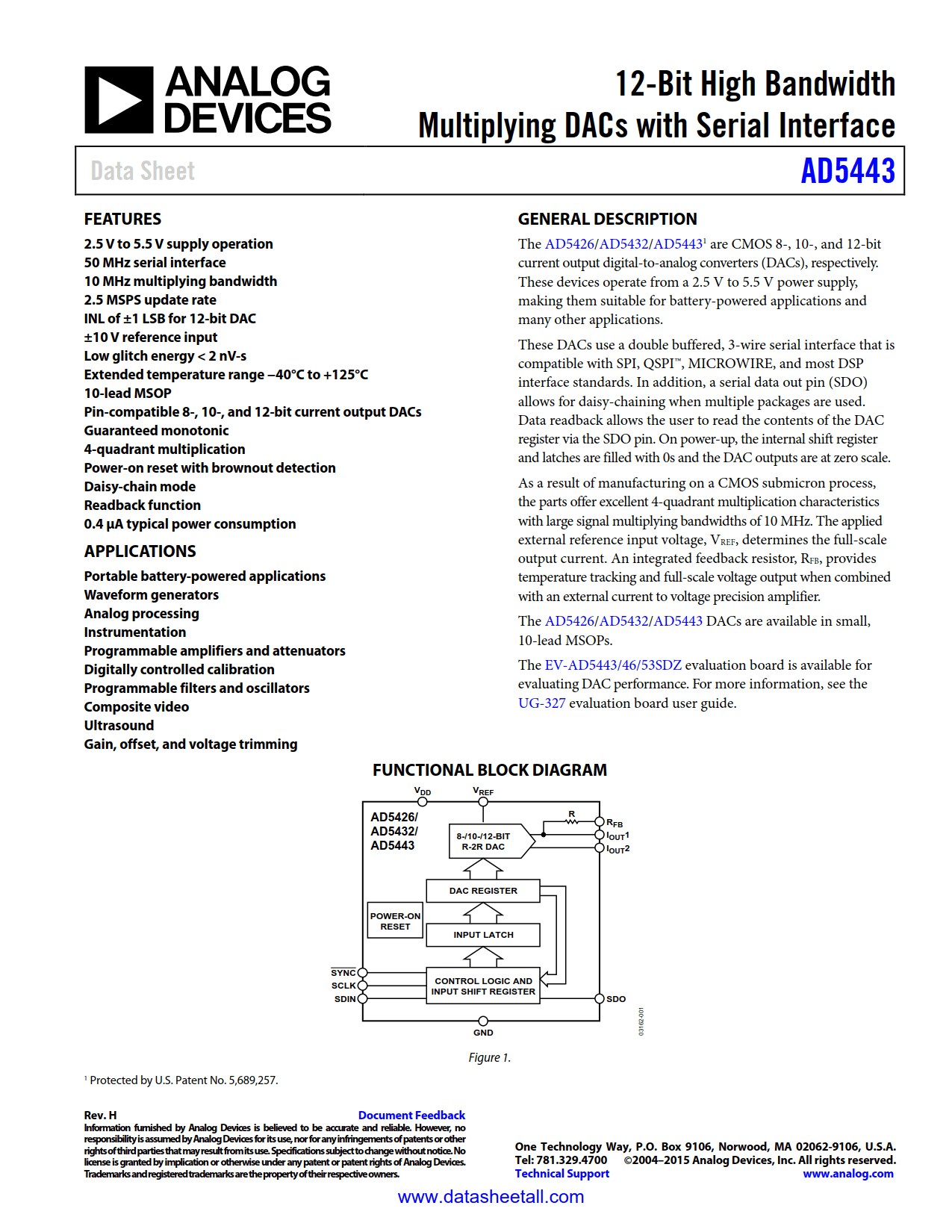

AD5443 Datasheet(Picture)

AD5443 Features

  • 2.5 V to 5.5 V supply operation
  • 50 MHz Serial Interface
  • 10 MHz Multiplying Bandwidth
  • 2.5 MSPS update rate
  • INL of ±1 LSB for 12-bit DAC
  • ±10 V reference input
  • Low glitch energy < 2 nV-s
  • Extended temperature range −40°C to +125°C
  • 10-lead MSOP package
  • Guaranteed monotonic
  • 4-quadrant multiplication
  • Power-on reset with brownout detection
  • Daisy-chain mode
  • Readback function
  • 0.4 μA typical power consumption

AD5443 Applications

  • Portable battery-powered applications
  • Waveform generators
  • Instrumentation
  • Programmable amplifiers and attenuators
  • Digitally controlled calibration
  • Programmable filters and oscillators
  • Composite video
  • Ultrasound
  • Gain, offset, and voltage trimming

AD5443 Description

The AD5443 are CMOS 12-bit current output digital-to-analog converters (DACs), respectively. These devices operate from a 2.5 V to 5.5 V power supply, making them suitable for battery-powered applications and many other applications.

These DACs use a double buffered, 3-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and most DSP interface standards. In addition, a serial data out pin (SDO) allows for daisy-chaining when multiple packages are used. Data readback allows the user to read the contents of the DAC register via the SDO pin. On power-up, the internal shift register and latches are filled with 0s and the DAC outputs are at zero scale.

As a result of manufacturing on a CMOS submicron process, the parts offer excellent 4-quadrant multiplication characteristics with large signal multiplying bandwidths of 10 MHz. The applied external reference input voltage, VREF, determines the full-scale output current. An integrated feedback resistor, RFB, provides temperature tracking and full-scale voltage output when combined with an external current to voltage precision amplifier.

The AD5443 DACs are available in small, 10-lead MSOP packages.
