AD5260 Datasheet

AD5260 Datasheet

+15 V or ±5 V, Single-Channel, SPI Compatible, 256 Position Digital Potentiometer
Part No.: AD5260
Page: 24 Pages
Size: 584 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 1
Update Time: 2024-01-04 13:44:08
DataSheet: Download

AD5260 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
AD5260BRUZ20 Tube 96   1 14 -40°C ~ 85°C 14-Lead TSSOP
AD5260BRUZ20-RL7 Reel 1000   1 14 -40°C ~ 85°C 14-Lead TSSOP
AD5260BRUZ50 Tube 96   1 14 -40°C ~ 85°C 14-Lead TSSOP
AD5260BRUZ50-REEL7 Reel 1000   1 14 -40°C ~ 85°C 14-Lead TSSOP
AD5260BRUZ200 Tube 96   1 14 -40°C ~ 85°C 14-Lead TSSOP
AD5260BRUZ200-RL7 Reel 1000   1 14 -40°C ~ 85°C 14-Lead TSSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

AD5260 Datasheet(PDF)

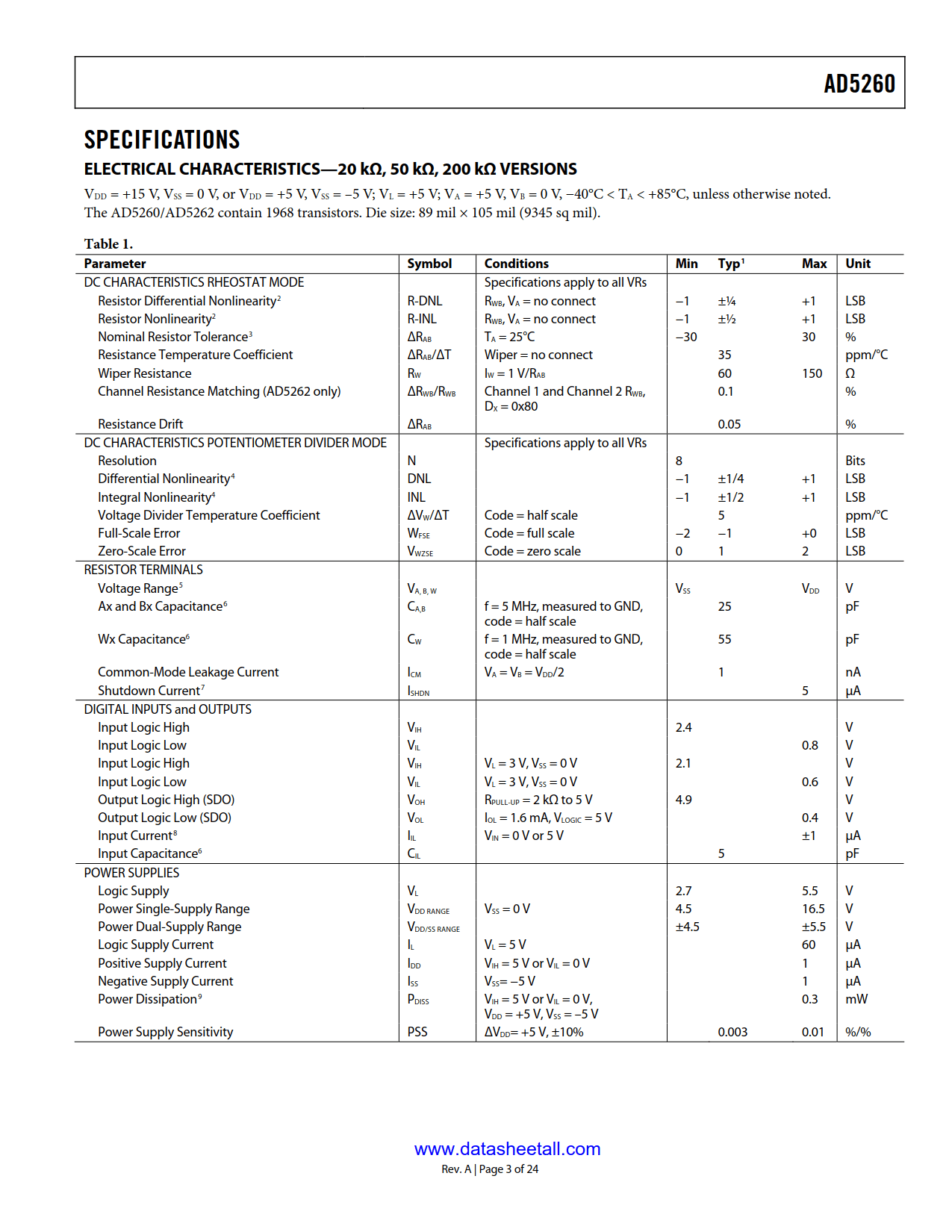

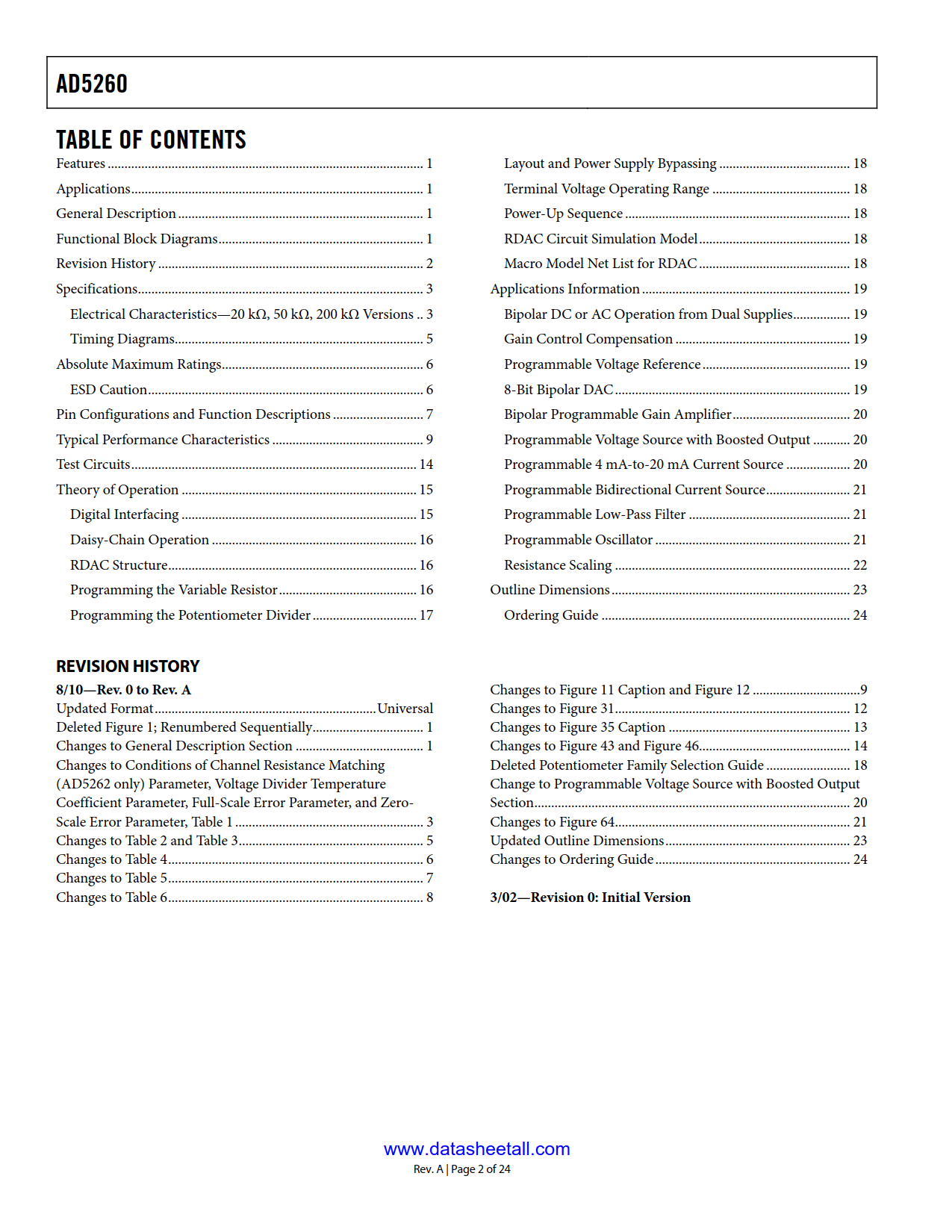

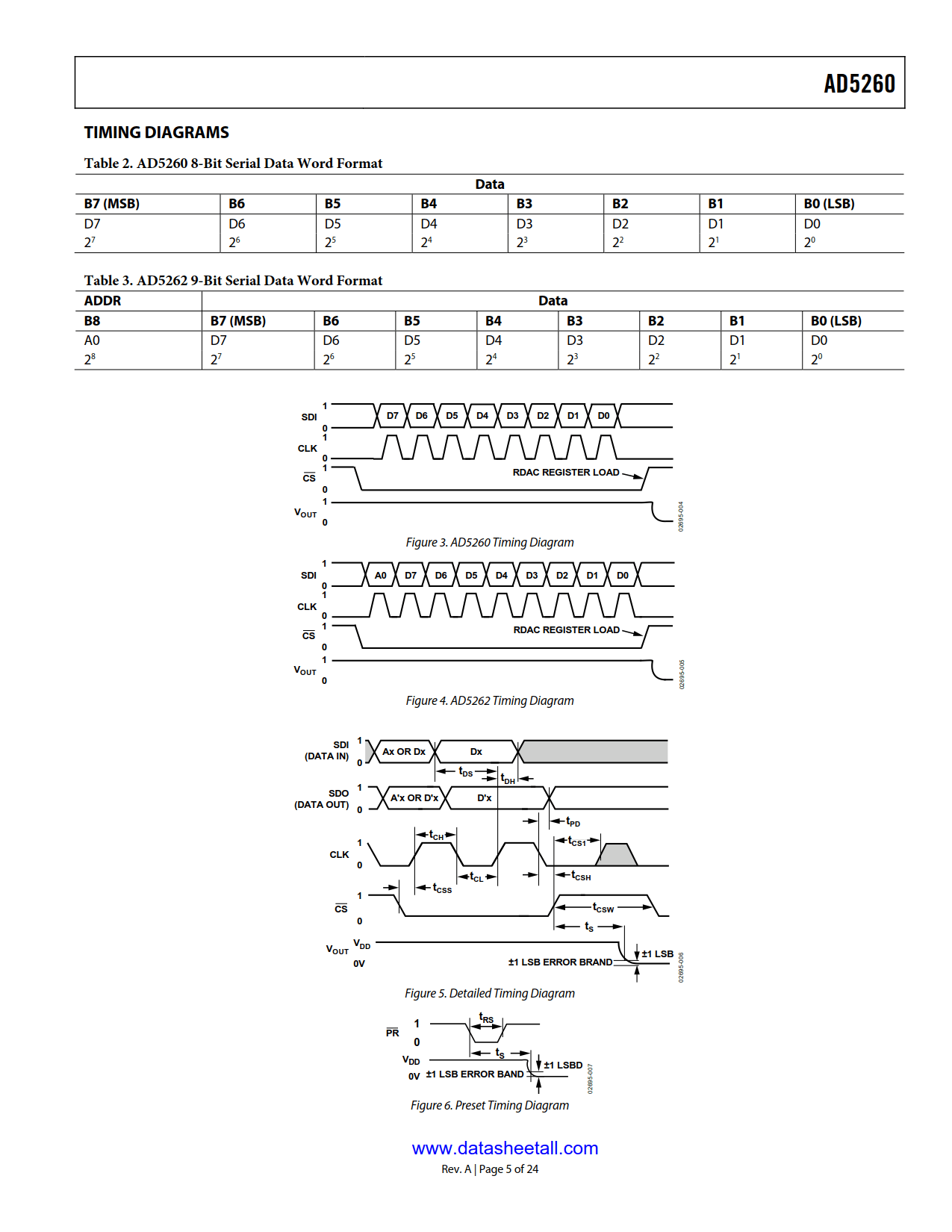

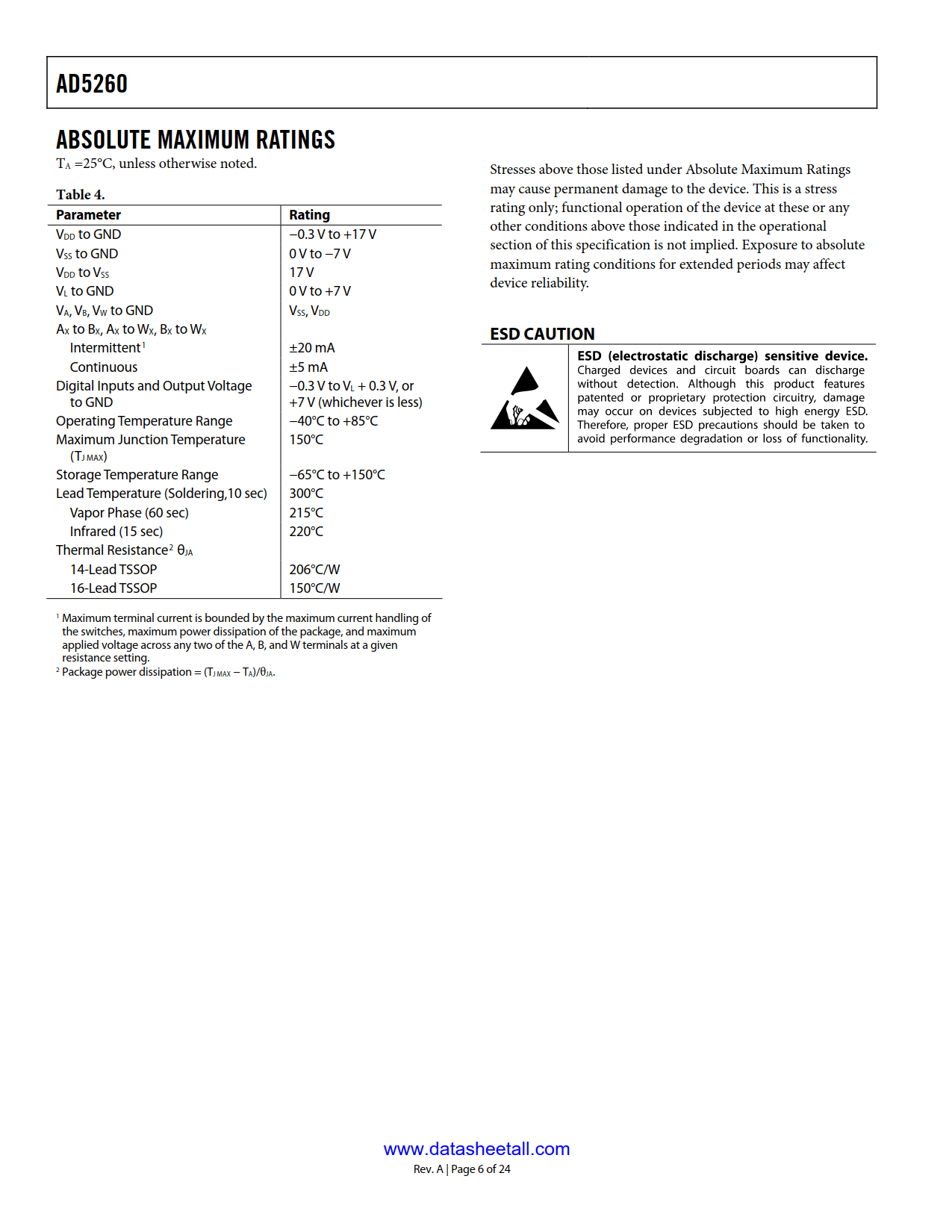

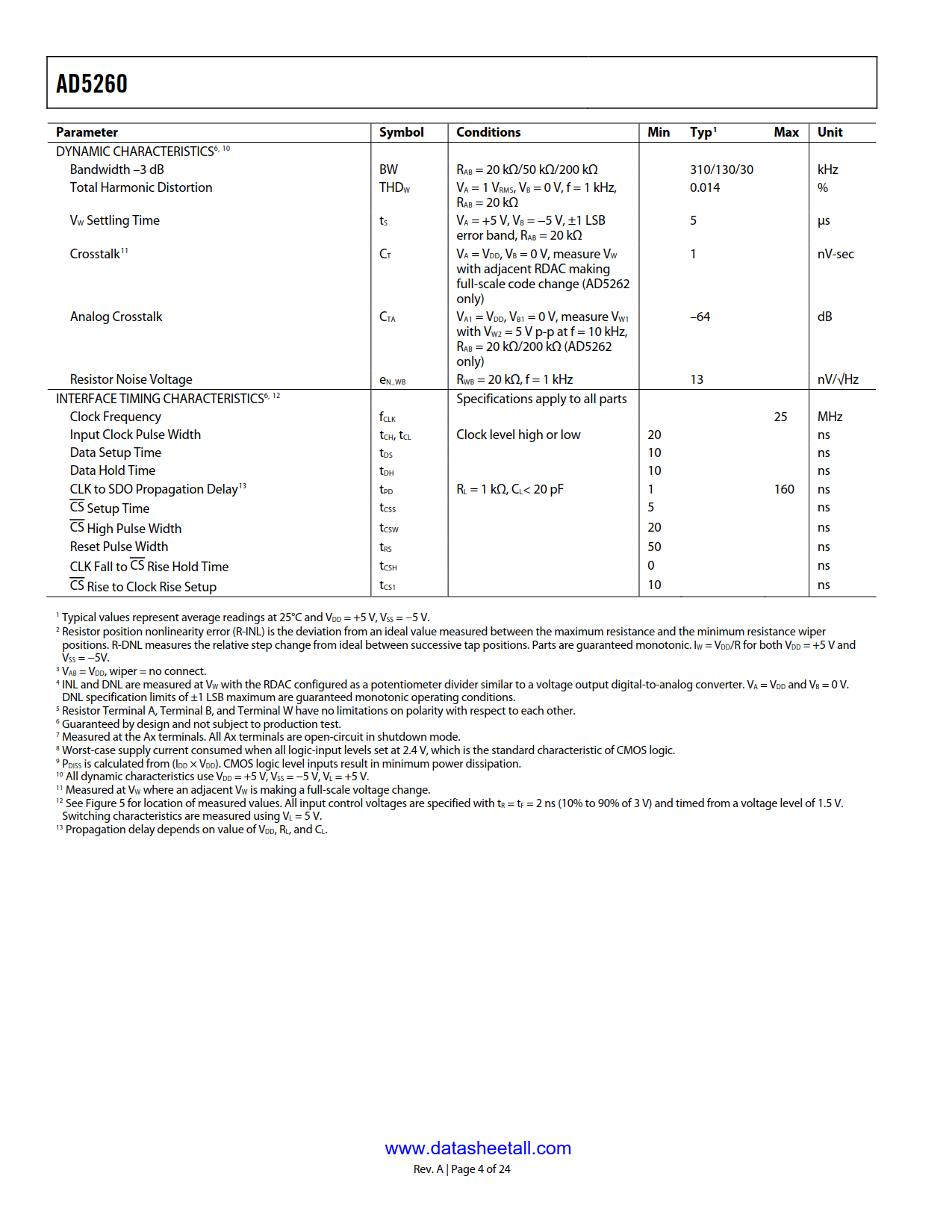

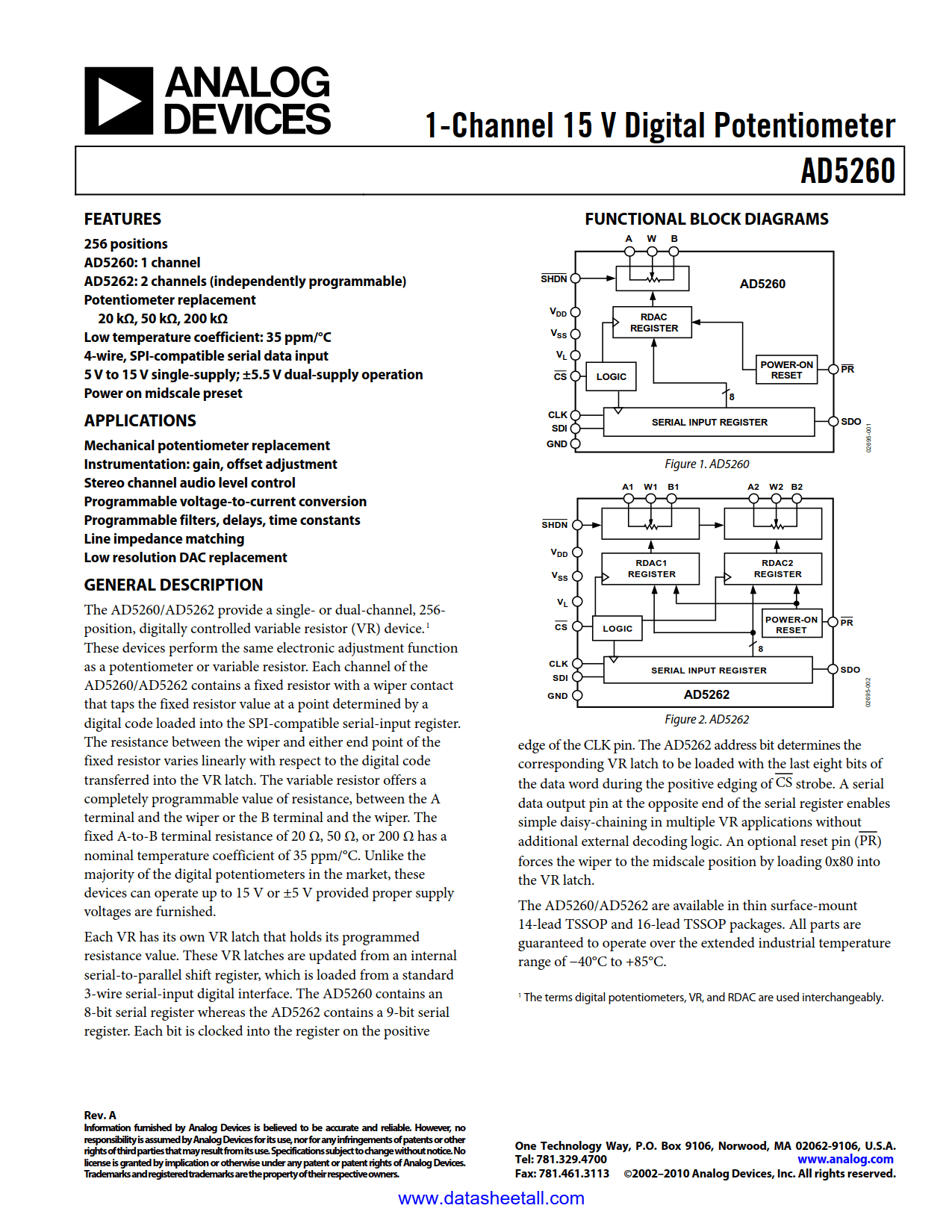

AD5260 Datasheet(Picture)

AD5260 Features

  • Potentiometer Replacement 20 kO, 50 kO, 200 kO
  • 5 V to 15 V Single-Supply; ±5.5 V Dual-Supply Operation
  • 256 Positions
  • AD5260 – 1-Channel
  • Low Temperature Coefficient 35 ppm/°C
  • 4-Wire SPI-Compatible Serial Data Input
  • Power ON Mid-Scale Preset

AD5260 Applications

  • Mechanical potentiometer replacement
  • Instrumentation: gain, offset adjustment
  • Stereo channel audio level control
  • Programmable voltage-to-current conversion
  • Programmable filters, delays, time constants
  • Line impedance matching
  • Low resolution DAC replacement

AD5260 Description

The AD5260 are 1-channel, 256 position, SPI interface digitally controlled, variable resistor (VR) devices. These parts operate from either a single +5 V to +15 V supply or a dual ±5 V supply, extending terminal voltage adjustment to these supply voltages. (Most industry digital potentiometers are limited to a 5 V operating range). These devices perform the same electronic adjustment function as a potentiometer or variable resistor while offering solid-state reliability and electronic packaging compactness. These devices are offered in the thin 1.1 mm height TSSOP 14- and 16-lead surface mount packages.
