AD5258 Datasheet

AD5258 Datasheet

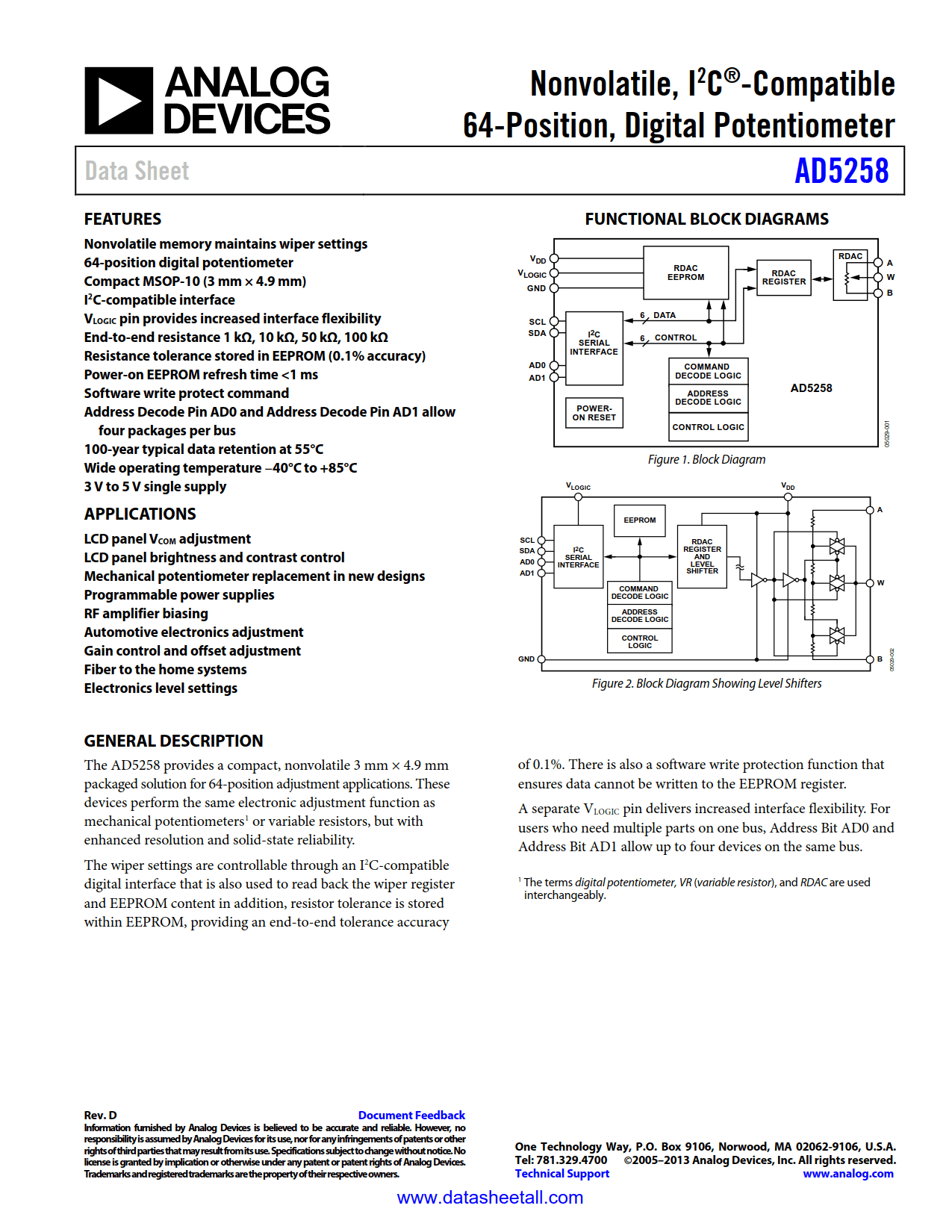

Nonvolatile, I2C®-Compatible 64-Position, Digital Potentiometer
Part No.: AD5258
Page: 24 Pages
Size: 510 KB
Manufacturer: Analog Devices, Inc.
Logo:
Views: 1
Update Time: 2023-12-12 17:39:15
DataSheet: Download

AD5258 Datasheet Applicable Part

Part No. Packing SPQ Marking MSL Pins Temp Range Package Description Buy
AD5258BRMZ1 Tube 50   3 10 -40°C ~ 85°C 10-Lead MSOP
AD5258BRMZ1-R7 Reel 1000   3 10 -40°C ~ 85°C 10-Lead MSOP
AD5258BRMZ10 Tube 50   3 10 -40°C ~ 85°C 10-Lead MSOP
AD5258BRMZ10-R7 Reel 1000   3 10 -40°C ~ 85°C 10-Lead MSOP
AD5258BRMZ50 Tube 50   3 10 -40°C ~ 85°C 10-Lead MSOP
AD5258BRMZ50-R7 Reel 1000   3 10 -40°C ~ 85°C 10-Lead MSOP
AD5258BRMZ100 Tube 50   3 10 -40°C ~ 85°C 10-Lead MSOP
AD5258BRMZ100-R7 Reel 1000   3 10 -40°C ~ 85°C 10-Lead MSOP
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

AD5258 Datasheet(PDF)

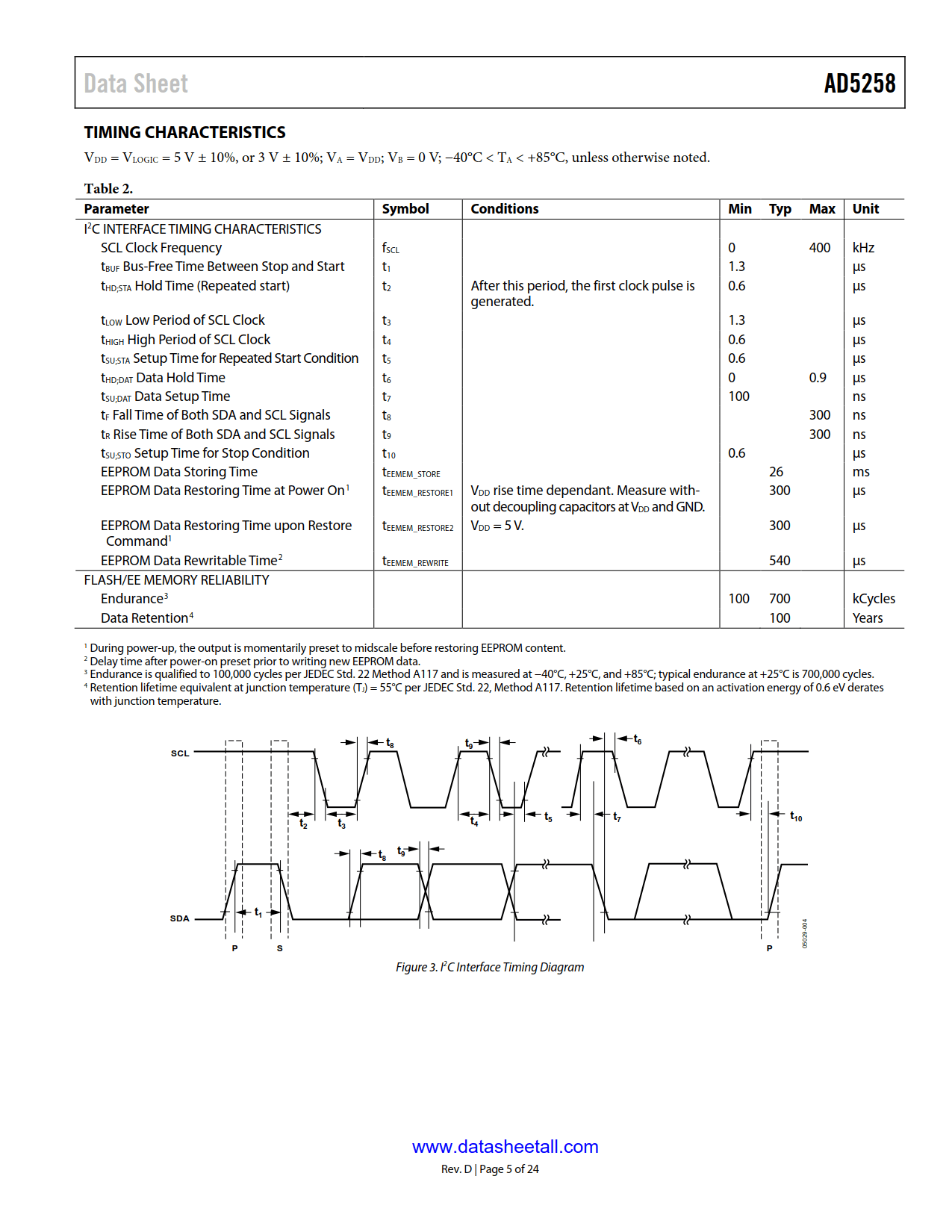

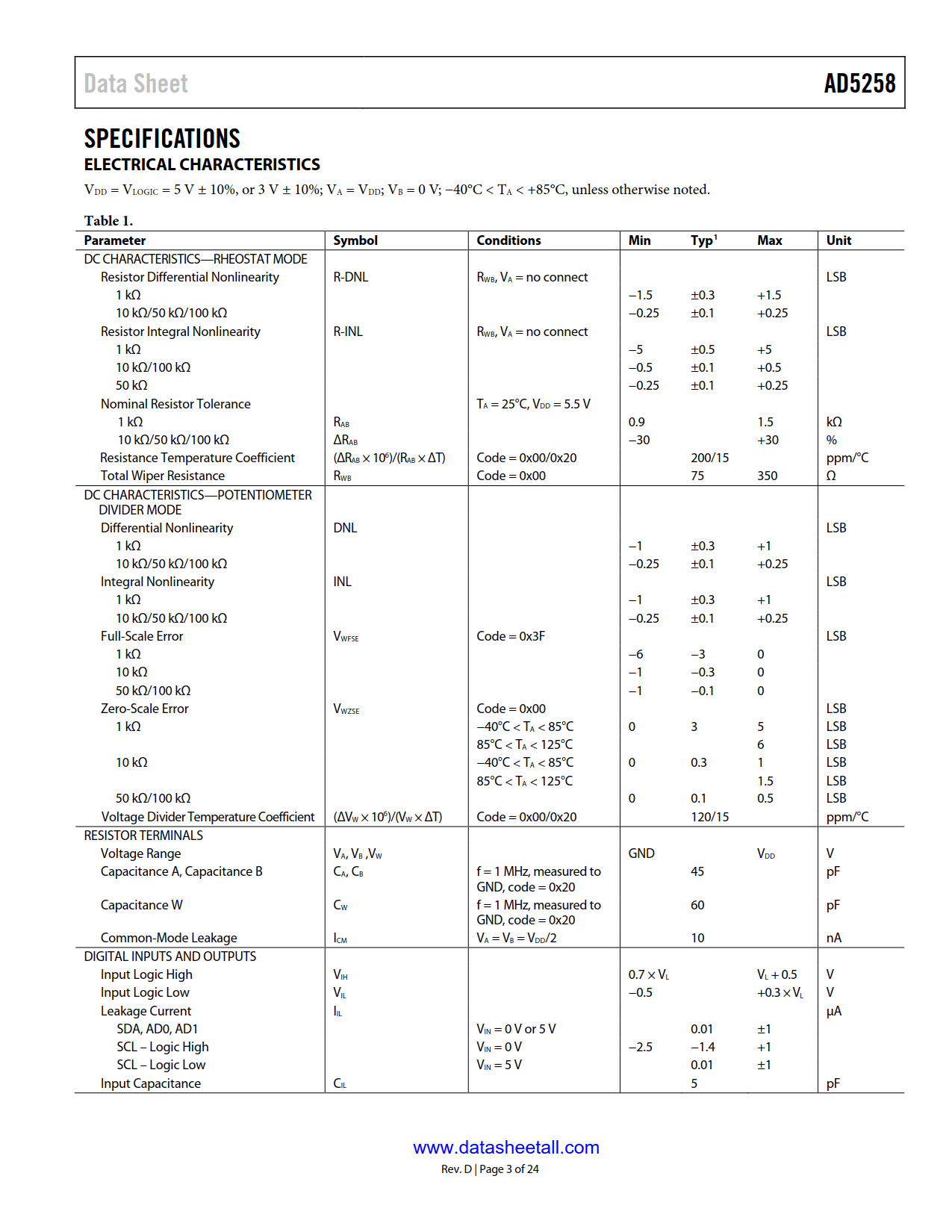

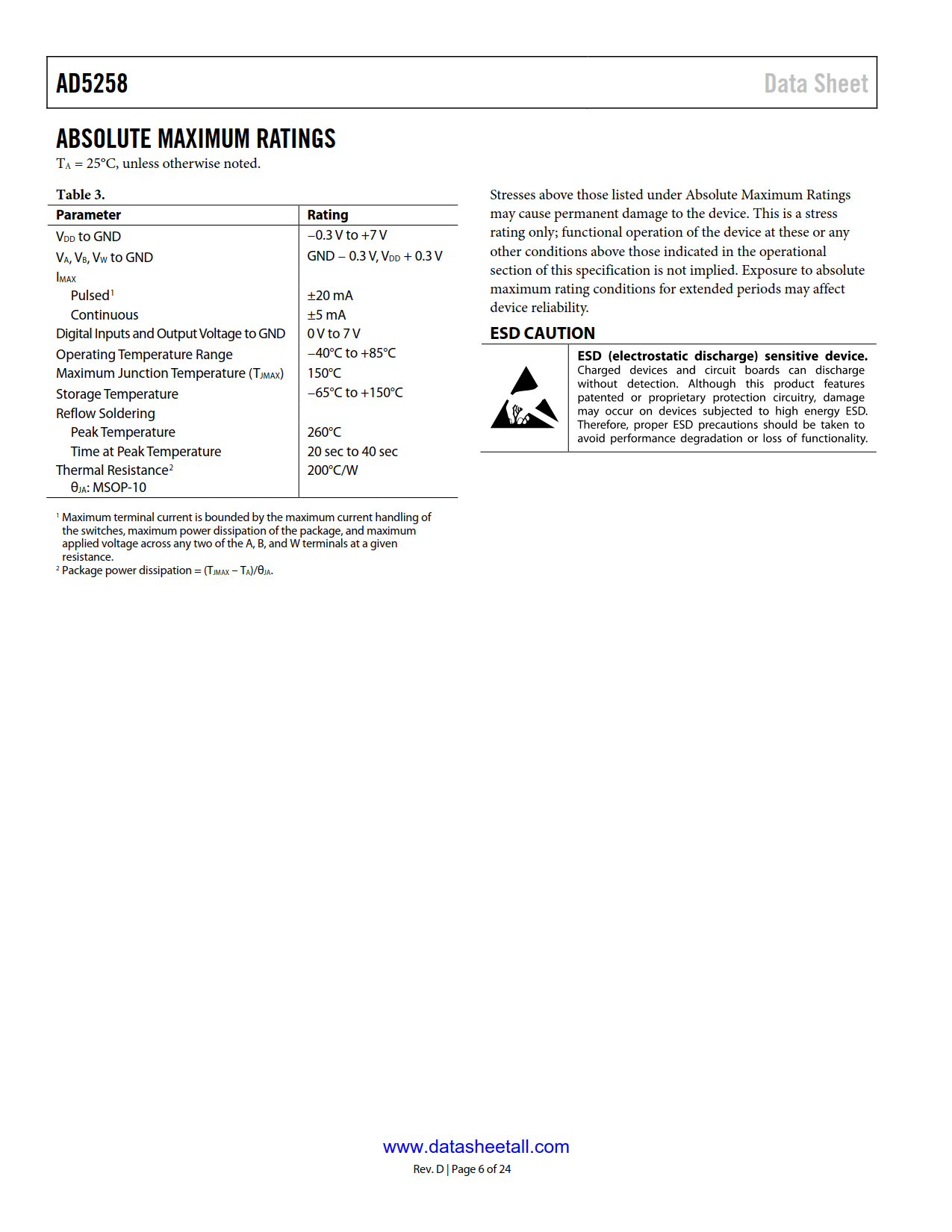

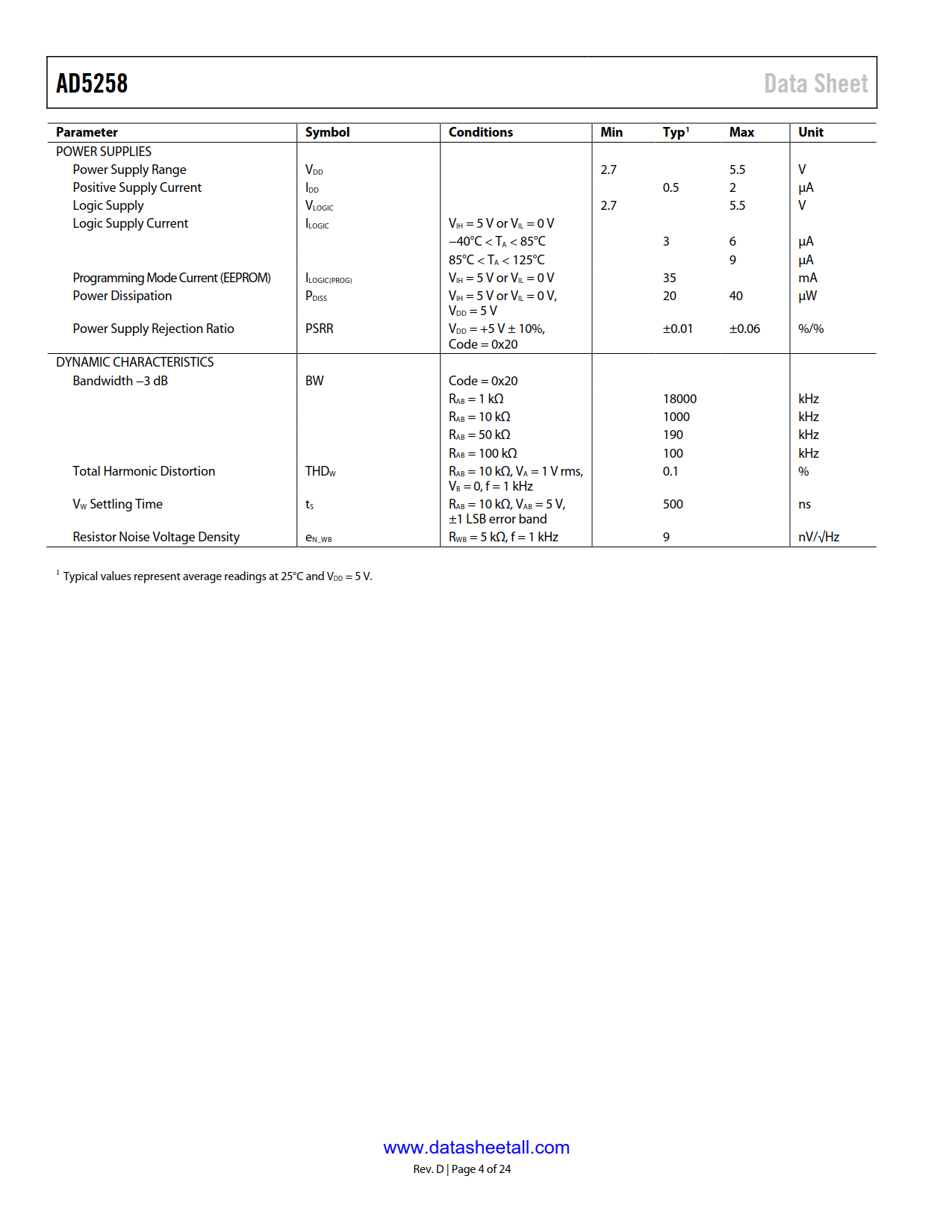

AD5258 Datasheet(Picture)

AD5258 Features

  • Nonvolatile memory maintains wiper settings
  • 64-position digital potentiometer
  • Compact MSOP-10 (3 mm × 4.9 mm)
  • I2C-compatible interface
  • VLOGIC pin provides increased interface flexibility
  • End-to-end resistance 1 kΩ, 10 kΩ, 50 kΩ, 100 kΩ
  • Resistance tolerance stored in EEPROM (0.1% accuracy)
  • Power-on EEPROM refresh time <1 ms
  • Software write protect command
  • Address Decode Pin AD0 and Address Decode Pin AD1 allow four packages per bus
  • 100-year typical data retention at 55°C
  • Wide operating temperature
    −40°C to +85°C

AD5258 Applications

  • LCD panel VCOM adjustment
  • LCD panel brightness and contrast control
  • Mechanical potentiometer replacement in new designs
  • Programmable power supplies
  • RF amplifier biasing
  • Automotive electronics adjustment
  • Gain control and offset adjustment
  • Fiber to the home systems
  • Electronics level settings

AD5258 Description

The AD5258 provides a compact, nonvolatile 3 mm × 4.9 mm packaged solution for 64-position adjustment applications. These devices perform the same electronic adjustment function as mechanical potentiometers or variable resistors, but with enhanced resolution and solid-state reliability.

The wiper settings are controllable through an I2C-compatible digital interface that is also used to read back the wiper register and EEPROM content in addition, resistor tolerance is stored within EEPROM, providing an end-to-end tolerance accuracy of 0.1%. There is also a software write protection function that ensures data cannot be written to the EEPROM register.

A separate VLOGIC pin delivers increased interface flexibility. For users who need multiple parts on one bus, Address Bit AD0 and Address Bit AD1 allow up to four devices on the same bus.
