| Part No.： | AD5160 |
| Page： | 16 Pages |
| Size： | 454 KB |
| Manufacturer： | Analog Devices, Inc. |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2025-01-13 14:32:54 |
| DataSheet： | Download |
| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| AD5160BRJZ5-R2 | Reel | 250 | D6Q | 1 | 8 | -40°C ~ 125°C | 8-Lead SOT-23 | |
| AD5160BRJZ5-RL7 | Reel | 3000 | D6Q | 1 | 8 | -40°C ~ 125°C | 8-Lead SOT-23 | |
| AD5160BRJZ10-R2 | Reel | 250 | D09 | 1 | 8 | -40°C ~ 125°C | 8-Lead SOT-23 | |
| AD5160BRJZ10-RL7 | Reel | 3000 | D09 | 1 | 8 | -40°C ~ 125°C | 8-Lead SOT-23 | |
| AD5160BRJZ50-R2 | Reel | 250 | D8J | 1 | 8 | -40°C ~ 125°C | 8-Lead SOT-23 | |
| AD5160BRJZ50-RL7 | Reel | 3000 | D8J | 1 | 8 | -40°C ~ 125°C | 8-Lead SOT-23 | |
| AD5160BRJZ100-R2 | Reel | 250 | D0B | 1 | 8 | -40°C ~ 125°C | 8-Lead SOT-23 | |
| AD5160BRJZ100-RL7 | Reel | 3000 | D0B | 1 | 8 | -40°C ~ 125°C | 8-Lead SOT-23 |

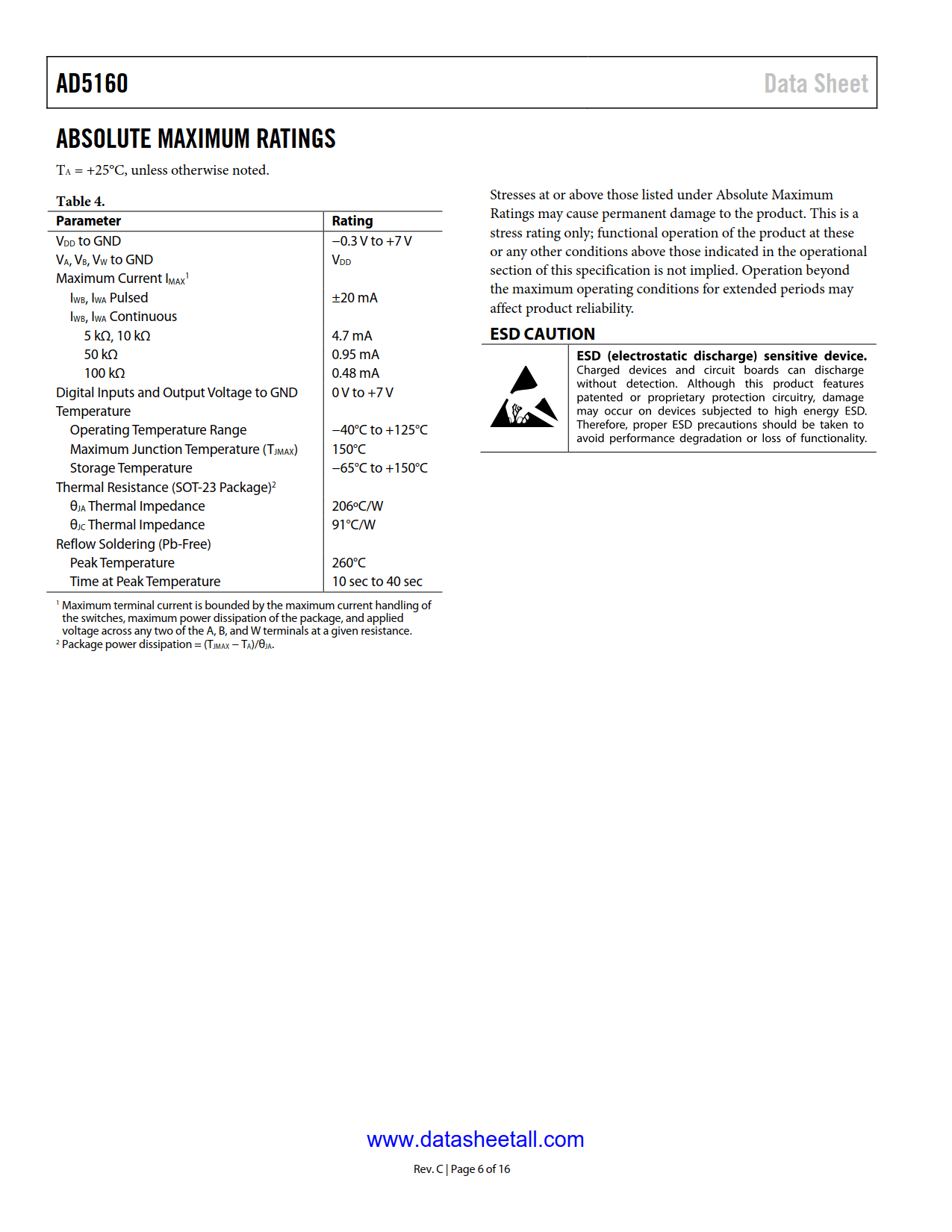

The AD5160 provides a compact 2.9 mm × 3 mm packaged solution for 256-position adjustment applications. These devices perform the same electronic adjustment function as mechanical potentiometers1 or variable resistors but with enhanced resolution, solid-state reliability, and superior low temperature coefficient performance.
The wiper settings are controllable through an SPI-compatible digital interface. The resistance between the wiper and either end point of the fixed resistor varies linearly with respect to the digital code transferred into the RDAC latch.
Operating from a 2.7 V to 5.5 V power supply and consuming less than 5 μA allows for usage in portable battery-operated applications.
